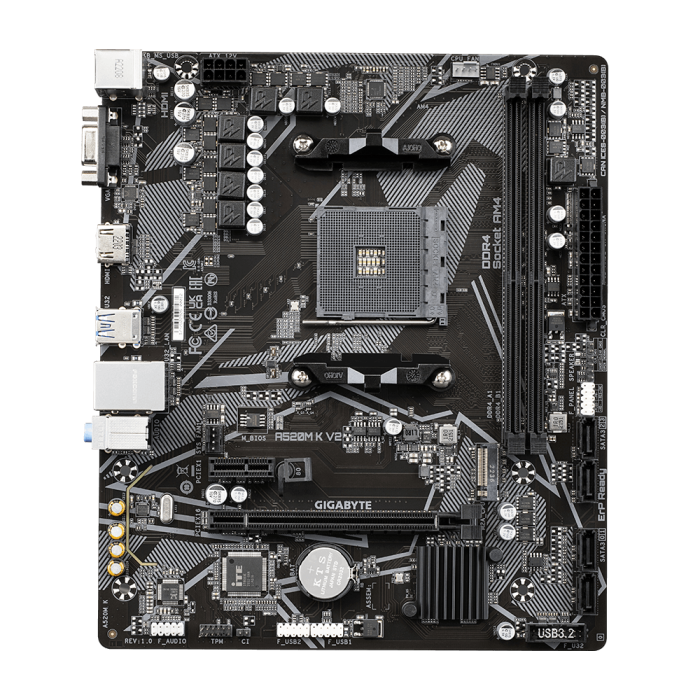

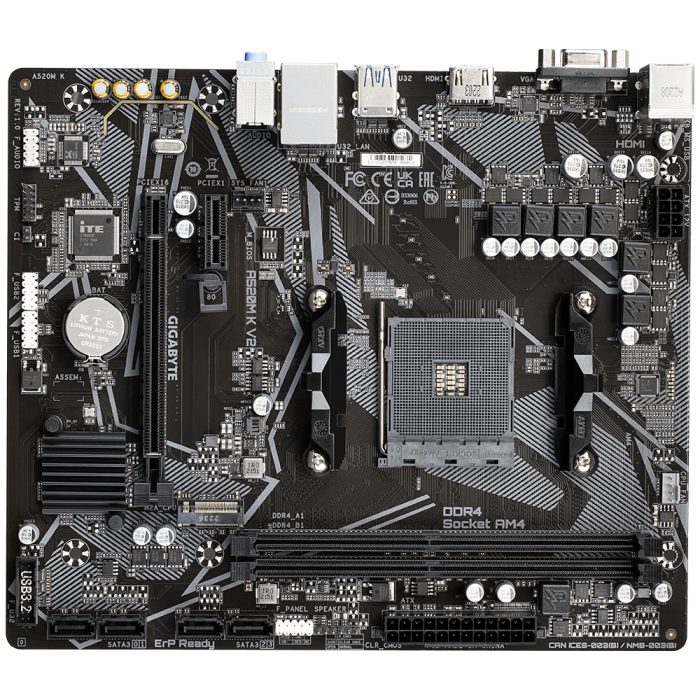

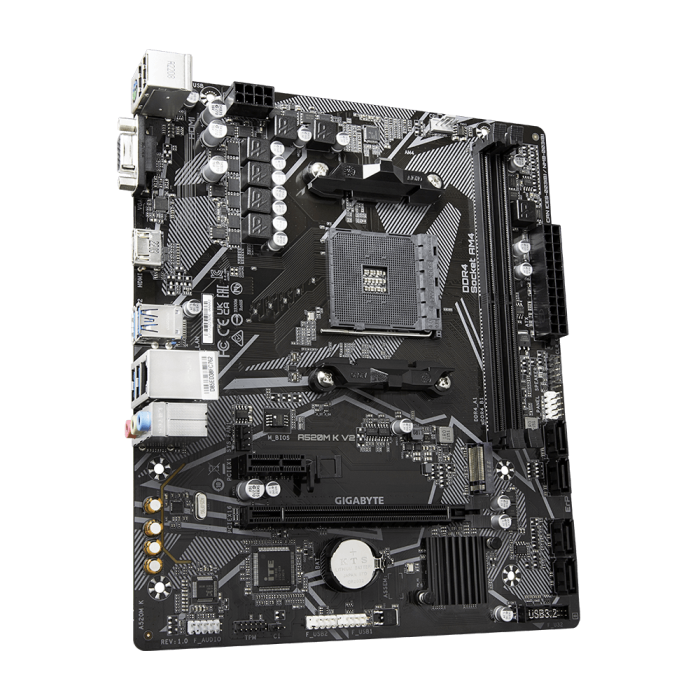

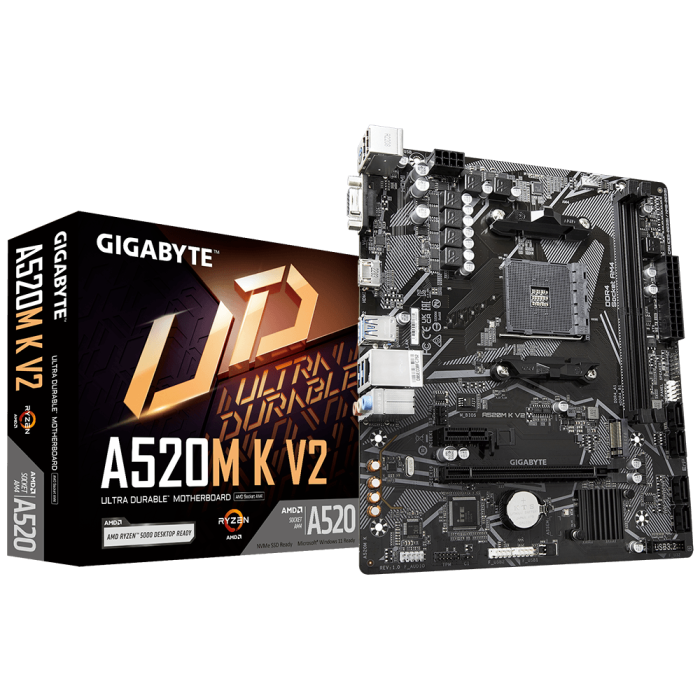

MATIČNA PLOČA GIGABYTE A520M K V2, DDR4, SATA3, USB3.2GEN1, HDMI, AM4 MATX

BASE: AMD AM4
FOR PROCESSORS: AMD RYZEN
FORMAT: mATX format 23.3 cm x 19.8 cm
CONNECTION CHIP: AMD A520
MEMORY:
2 x DDR4 DIMM (5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz) up to a total of 64GB capacity, dual channel support, support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, support for Extreme Memory Profile (XMP) memory modules
GRAPHICS: YES, peko APU
RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express x16
1 x PCI Express x1
NETWORK CARD: Realtek LAN chip (10/100/1000Mbit)
SOUND CARD: Realtek codec High Definition Audio (2/4/5.1/ 7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

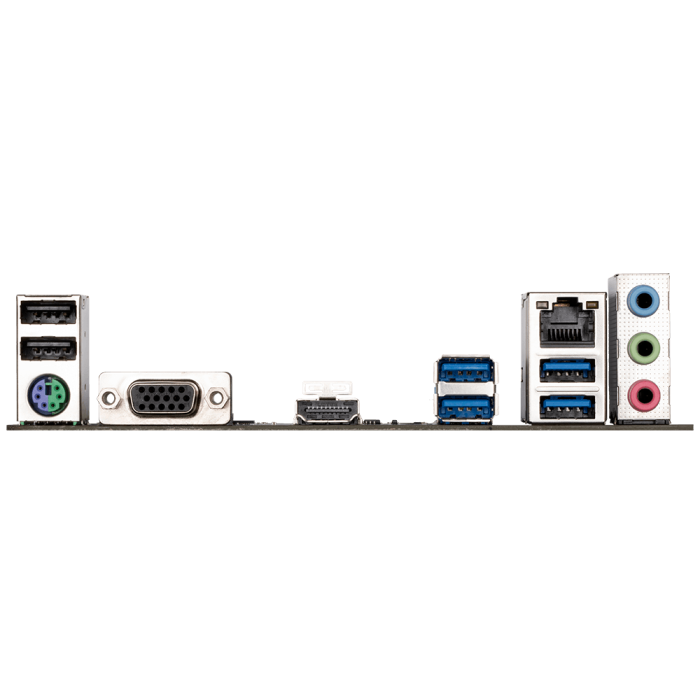

EXTERNAL CONNECTIONS:
1 x PS /2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
EXTRA:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer website: https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-11#kf
