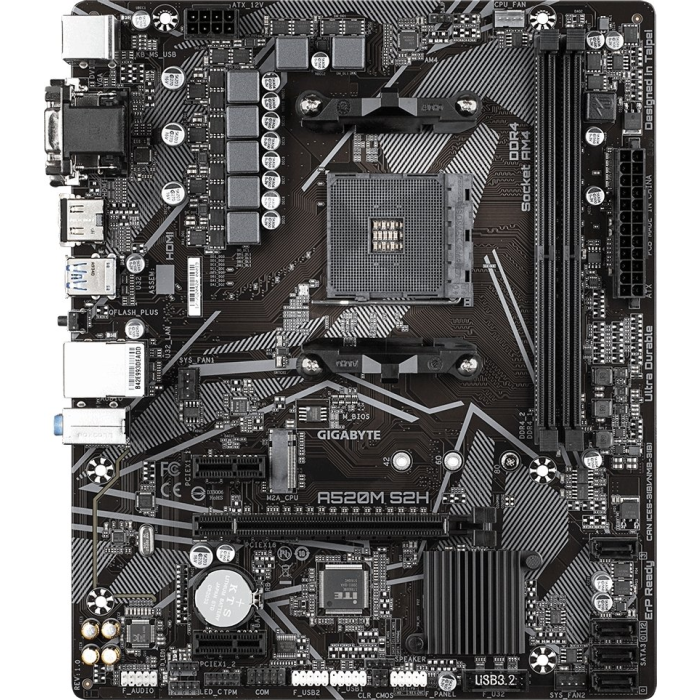

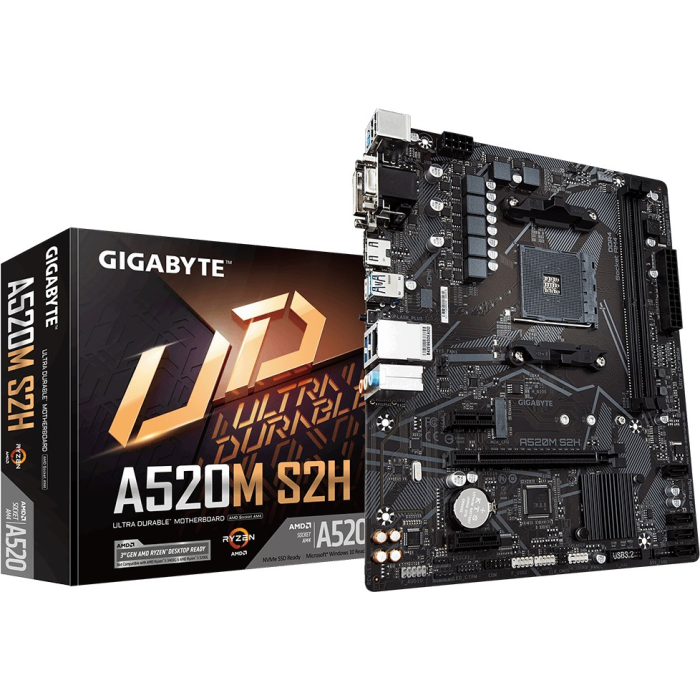

MATIČNA PLOČA GIGABYTE A520M S2H, DDR4, SATA3, USB3.2GEN1, HDMI, AM4 MATX

BASE: AMD AM4
FOR PROCESSORS: AMD RYZEN
FORMAT: mATX format 24.4 cm x 20.5 cm
CONNECTION CHIP: AMD A520
MEMORY:
2 x DDR4 DIMM (5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz) up to a total of 64GB capacity, dual channel support
GRAPHICS: YES , baking APU
RAID: YES (0,1,10)
EXTENDABLE SLOTS: 1 x PCI Express x16 2 x PCI Express x1 NETWORK CARD: Realtek LAN chip (10/100/1000Mbit) />SOUND CARD: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

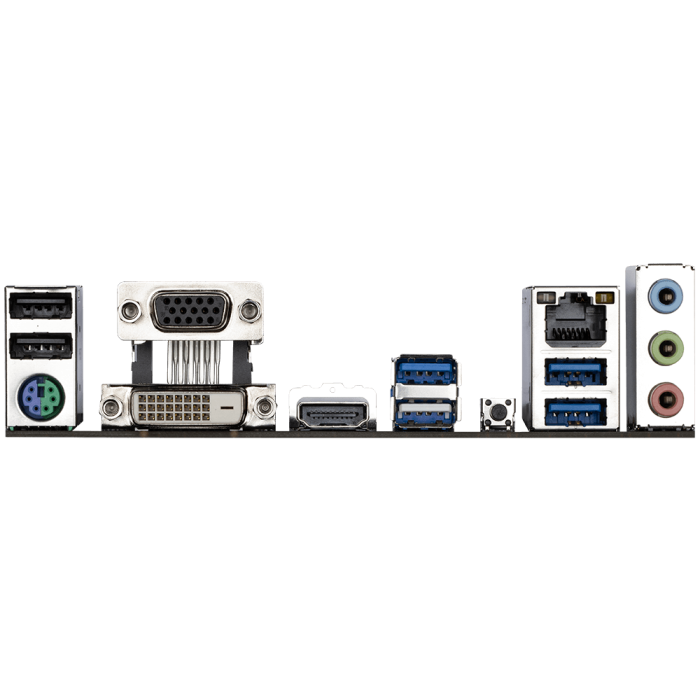

EXTERNAL CONNECTIONS:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks
EXTRA:
