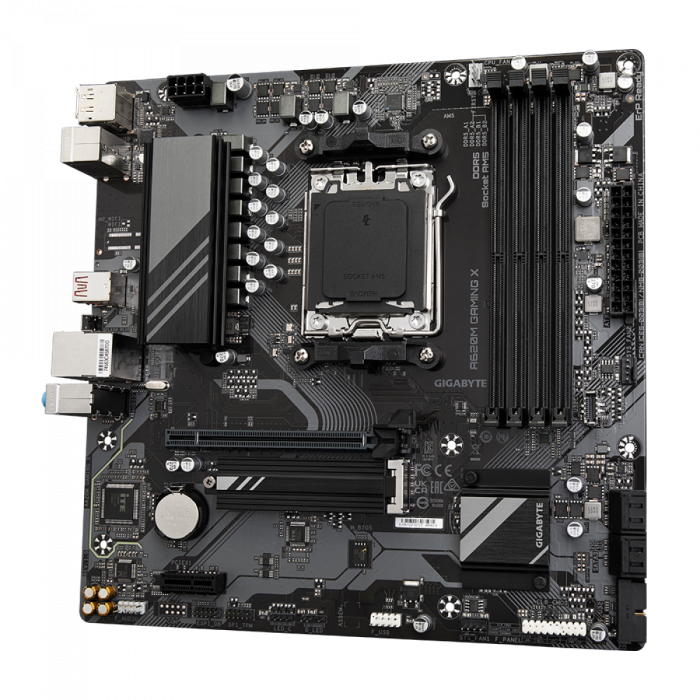

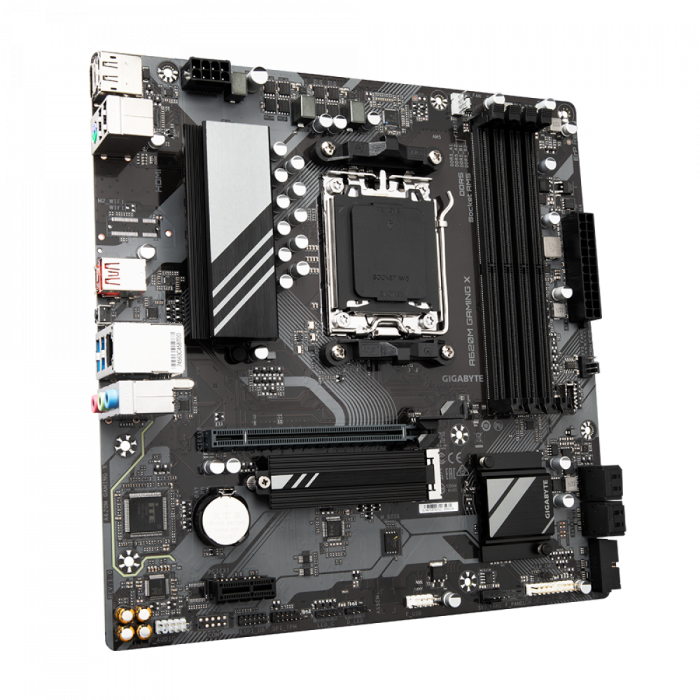

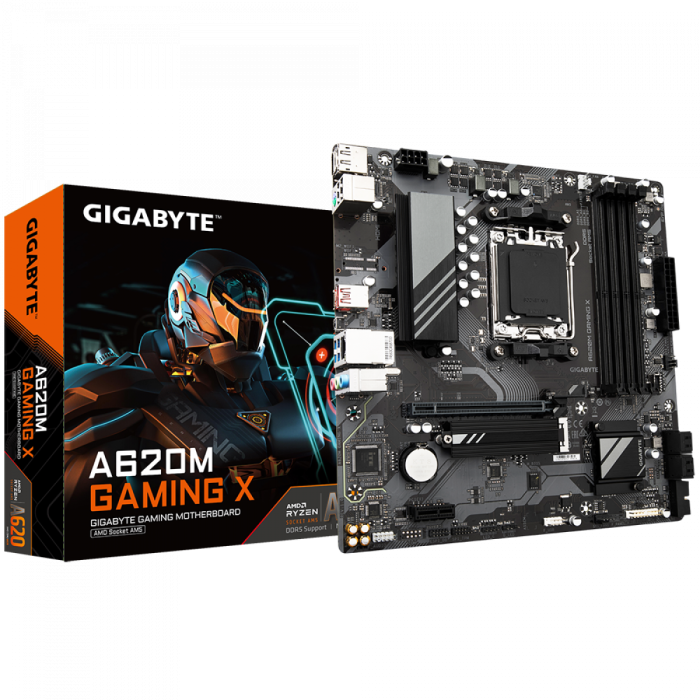

MATIČNA PLOČA GIGABYTE A620M GAMING X, DDR5, SATA3, USB3.2GEN2, DP, AM5 MATX

BASE: AMD AM5
FOR PROCESSORS: AMD RYZEN 7000 Series
FORMAT: mATX format 24.4 cm x 24.4 cm
CONNECTION CHIP: AMD A620
MEMORY:
4 x DDR5 DIMM non-ECC 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz (depending on processor ) up to a total of 128GB capacity, dual channel and EXTended Profiles for Overclocking,Extreme Memory Profile (XMP)support
GRAPHICS: YES - via APU
RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0 x1
NETWORK CARD: Realtek GbELAN chip (10/100/1000Mbit)
SOUND CARD: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper

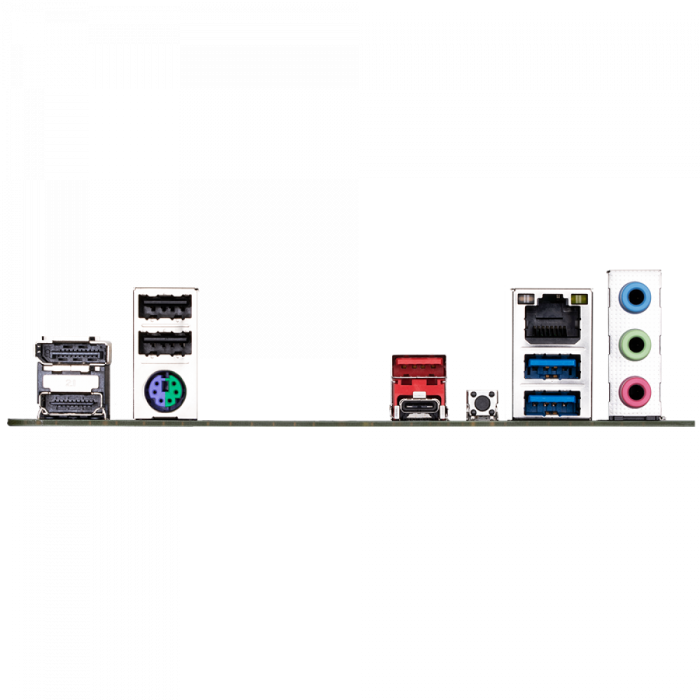

EXTERNAL CONNECTIONS:
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
EXTRA:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer website: https://www.gigabyte.com/Motherboard/A620M-GAMING-X-rev-11
