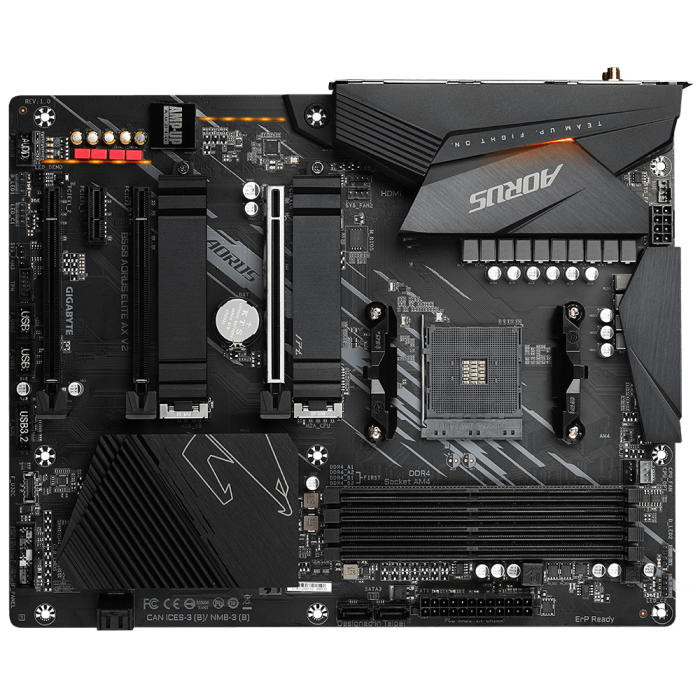

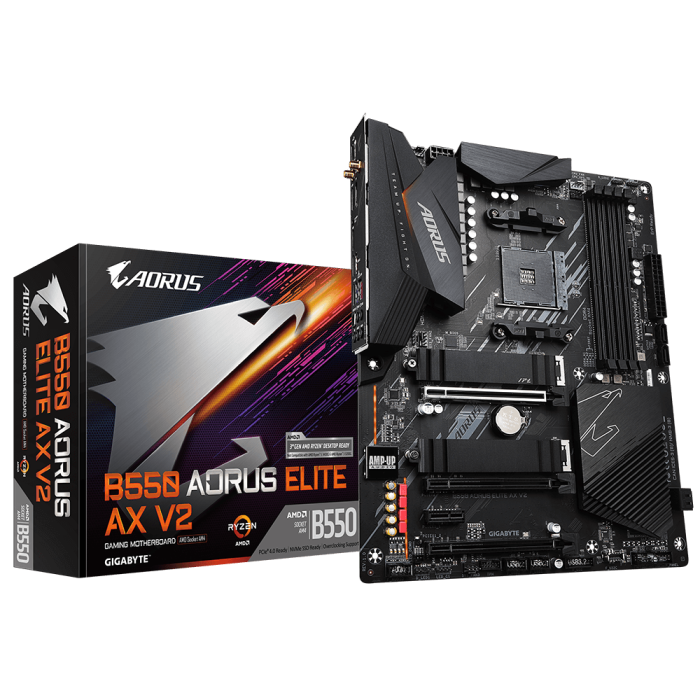

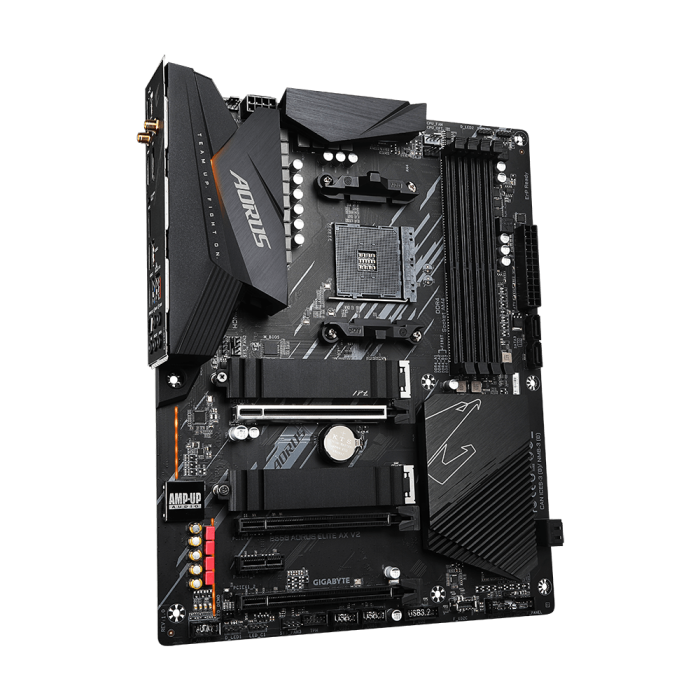

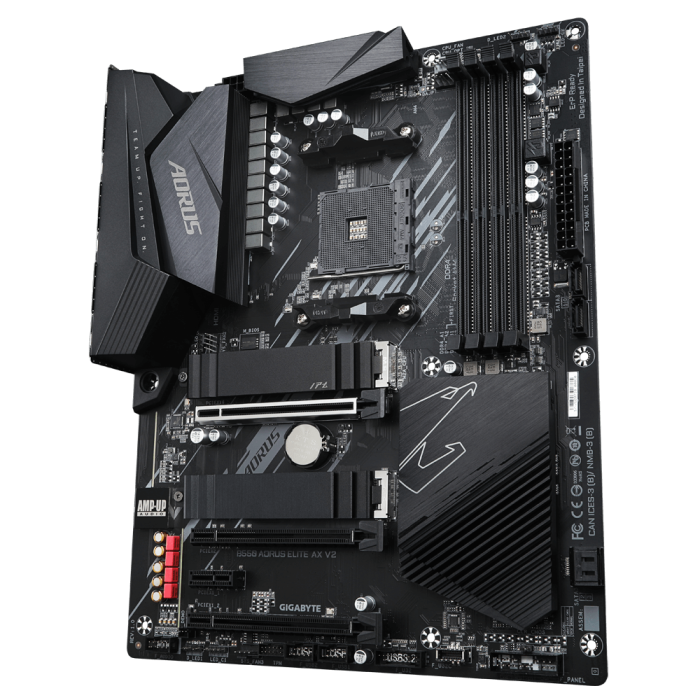

MATIČNA PLOČA GIGABYTE B550 AORUS ELITE AX V2, DDR4, SATA3, USB3.2GEN2, DP, 2.5GBE, WIFI, AM4 ATX

SOCKET : AMD AM4
FOR PROCESSORS : AMD RYZEN
FORMAT : ATX format 30.5 cm x 24.4 cm
CONNECTING CHIP : AMD B550
MEMORY :
4 x DDR4 DIMM ECC / non-ECC up to 5400 (OC) MHz (depending on processor) up to a total of 128GB capacity, dual channel and Extreme Memory Profile (XMP) support
GRAPHICS : YES - via APU
RAID : YES (0,1,10)
EXPANSION SLOTS :
1 x PCI Express 3.0 / 4.0 x16
1 x PCI Express 3.0 x2
2 x PCI Express 3.0 x1
NETWORK CARD : Realtek 2.5GbE LAN chip (10/100 / 1000Mbit / 2.5Gbit); INTEL Wi-Fi 6 AX200 , supporting 2.4 / 5 GHz Dual-Band, BLUETOOTH 5.0
SOUND CARD : Realtek ALC1200-VB codec High Definition Audio (2/4 / 5.1 / 7.1-channel)
INTERNAL CONNECTIONS :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
4 x SATA 6Gb / s connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip / RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0 / 1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

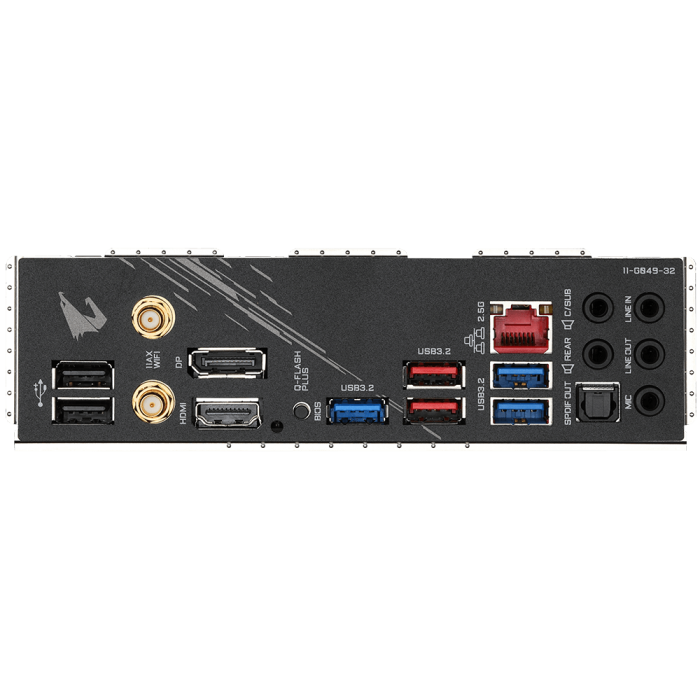

EXTERNAL CONNECTIONS :
1 x DisplayPort
1 x HDMI port
2 x SMA antenna connectors (2T2R)
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
2 x USB 2.0 / 1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S / PDIF Out connector
5 x audio jacks
ADDITIONALLY :

iTE® I / O Controller Chip
H / W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON / OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8125 Gaming LAN Bandwidth Control Utility

Manufacturer's Website: https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10#kf
