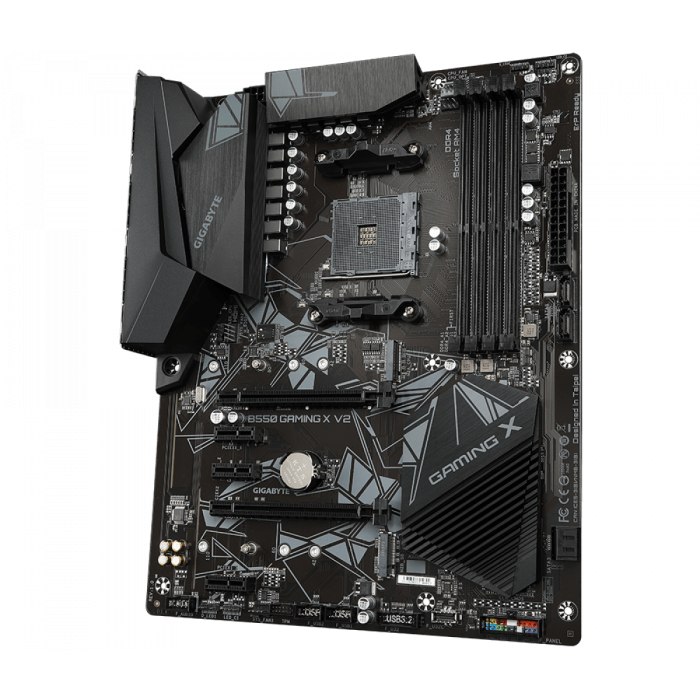

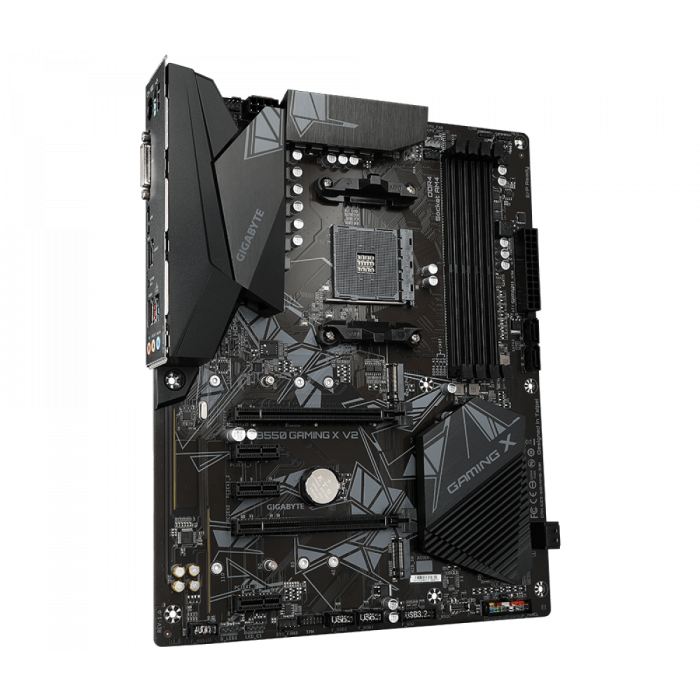

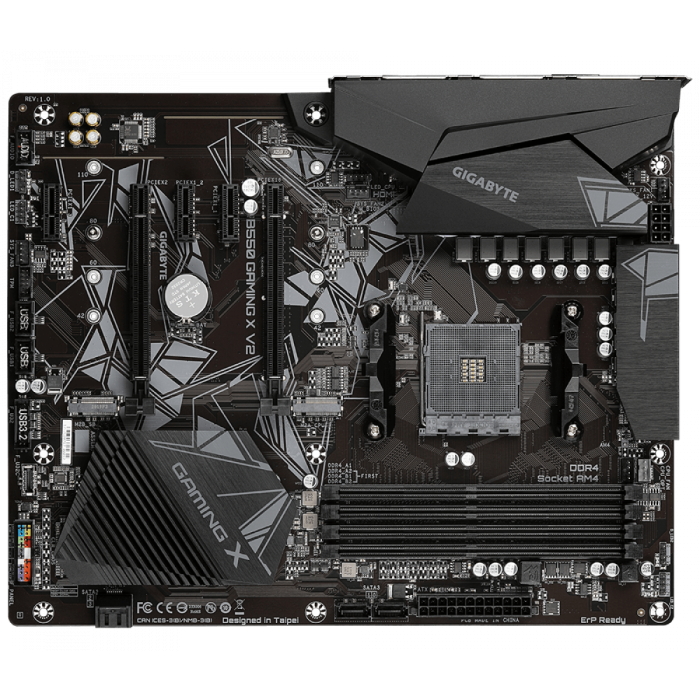

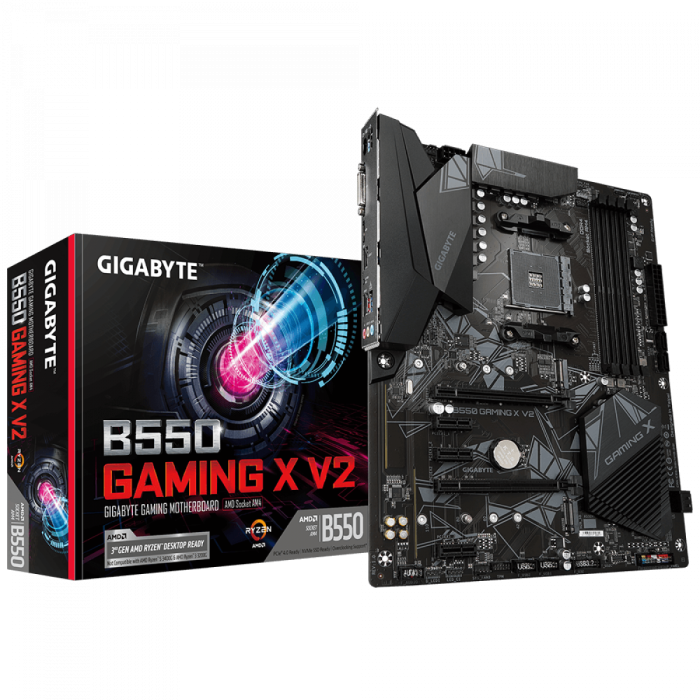

MATIČNA PLOČA GIGABYTE B550 GAMING X V2, DDR4, SATA3, USB3.2GEN2, HDMI, AM4 ATX

BASE : AMD AM4
FOR PROCESSORS : AMD RYZEN
FORMAT : ATX format 30.5 cm x 24.4 cm
CONNECTION CHIP : AMD B550
MEMORY :
4 x DDR4 DIMM ECC/non-ECC up to 4733 (OC) MHz (depending on the processor) up to a total of 128GB capacity, dual channel and Extreme Memory Profile (XMP) support
GRAPHICS : YES - via APU
RAID : YES (0,1,10)
EXPANSION SLOTS :
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0 x2
3 x PCI Express 3.0 x1
NETWORK CARD : Realtek LAN chip (10/100/1000Mbit)
SOUND CARD : Realtek ALC887 codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

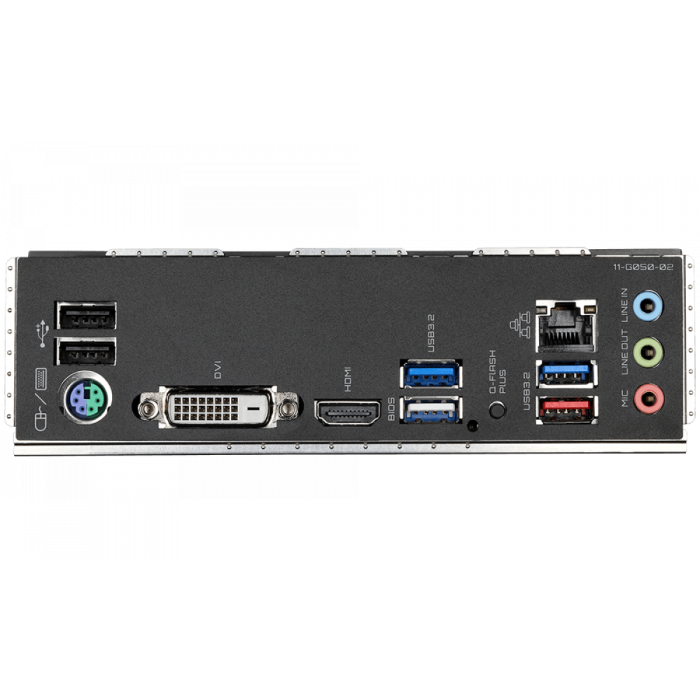

EXTERNAL CONNECTIONS :
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (order)
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
ADDITIONAL :
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility

Manufacturer's website: https://www.gigabyte.com/Motherboard/B550-GAMING-X-V2-rev-13#kf
