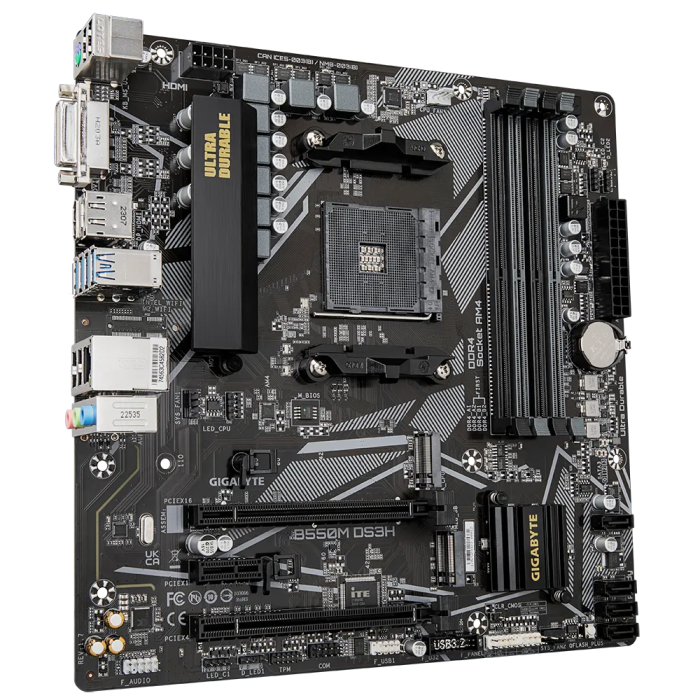

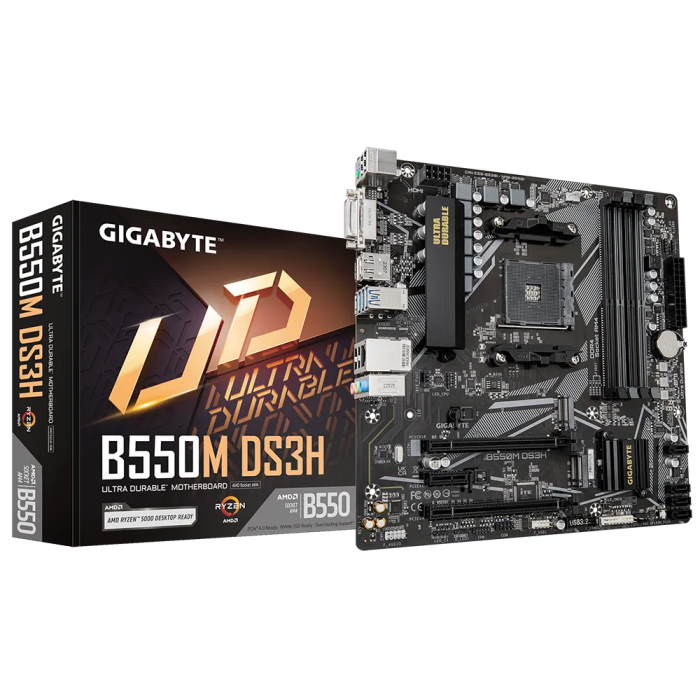

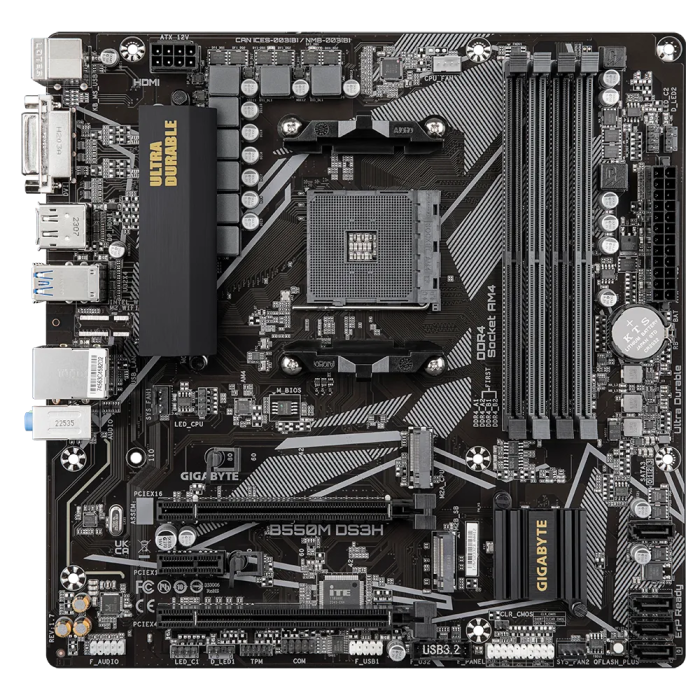

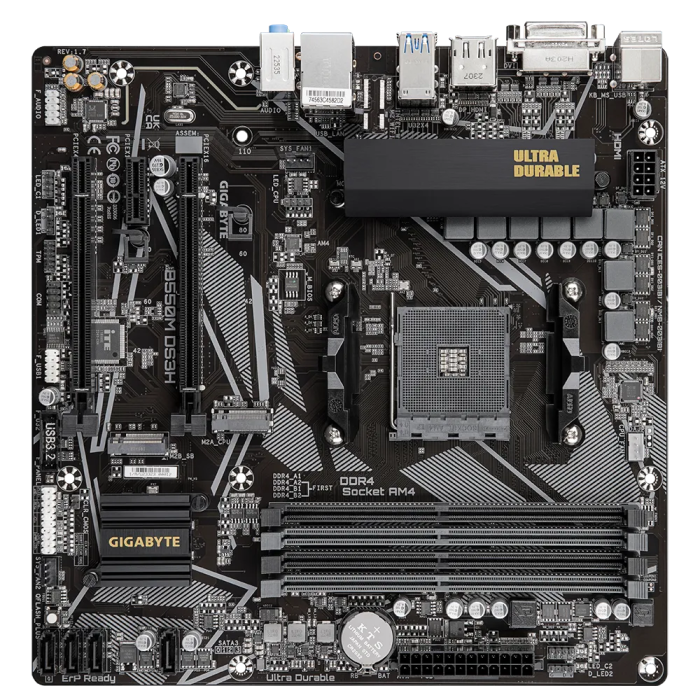

MATIČNA PLOČA GIGABYTE B550M DS3H, DDR4, SATA3, USB3.2GEN1, HDMI, AM4 MATX.

BASE: AMD AM4
FOR PROCESSORS: AMD RYZEN
FORMAT: mATX format 24.4 cm x 24.4 cm
CONNECTION CHIP: AMD B550
MEMORY:
4 x DDR4 DIMM ECC/non-ECC up to 4733MHz (depends from the processor) up to a total of 128GB capacity, dual channel and Extreme Memory Profile (XMP)support
GRAPHICS: YES - via APU RAID: YES (0,1,10)
EXPANSION SLOTS:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0 x4
1 x PCI Express 3.0 x1
NETWORK CARD: Realtek LAN chip (10/100/1000Mbit)
SOUND CARD : Realtek ALC887 codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

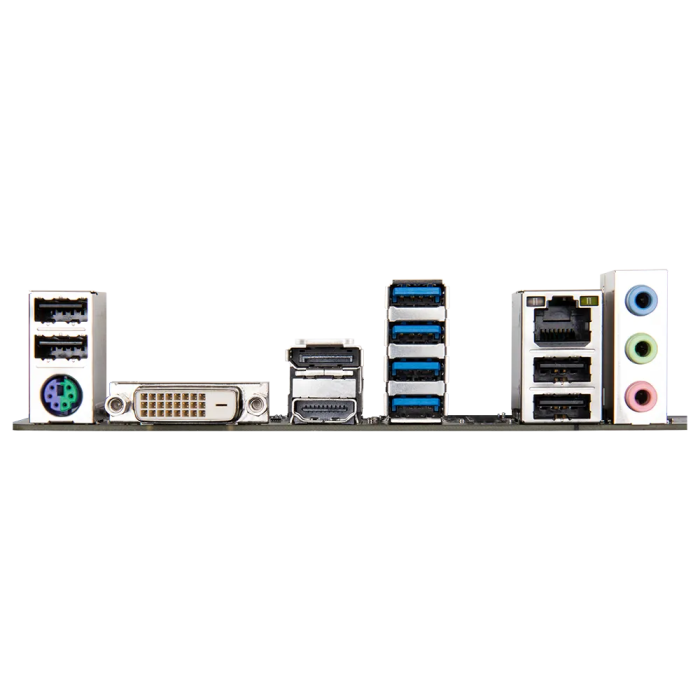

EXTERNAL CONNECTIONS:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
EXTRA:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
