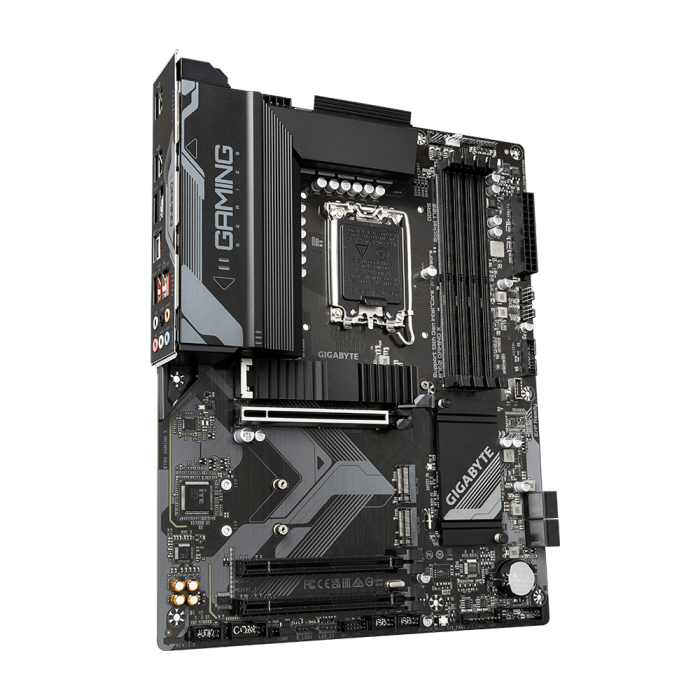

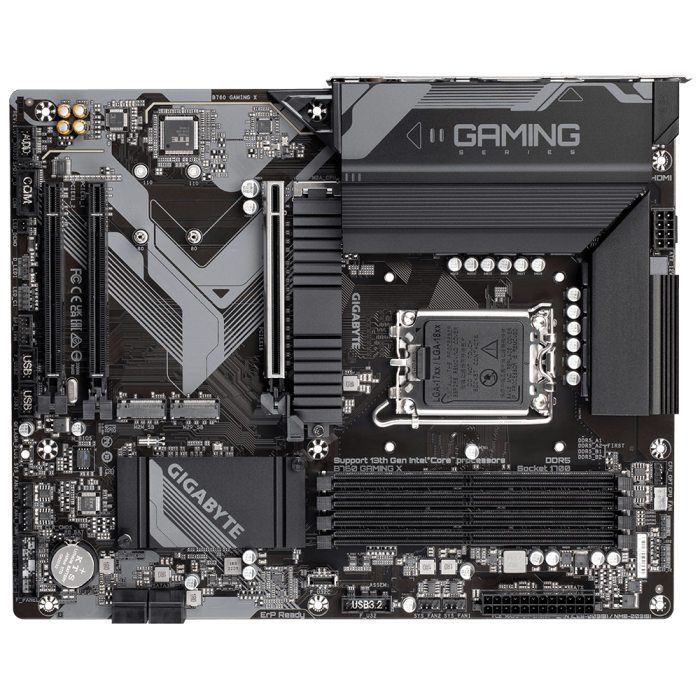

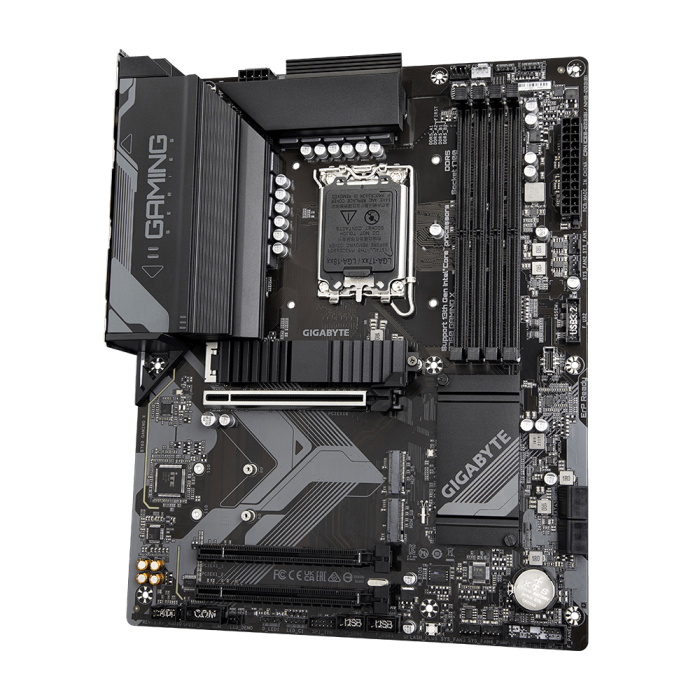

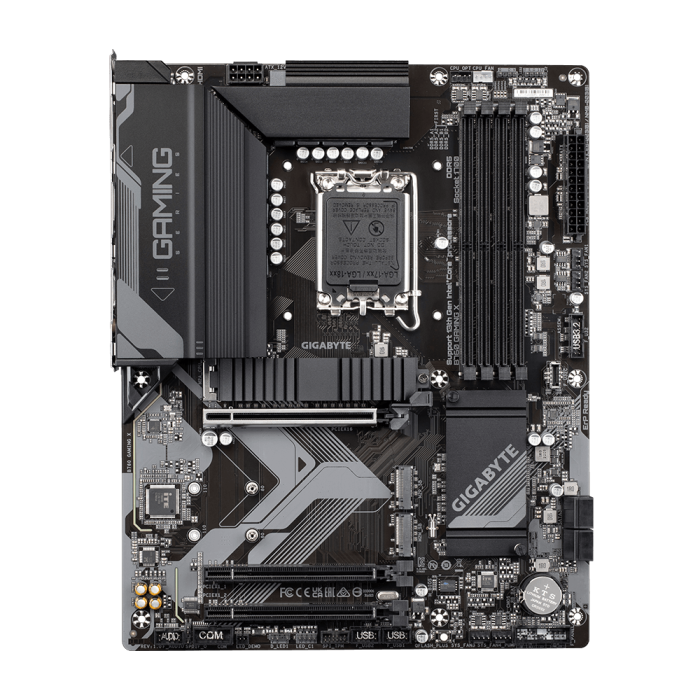

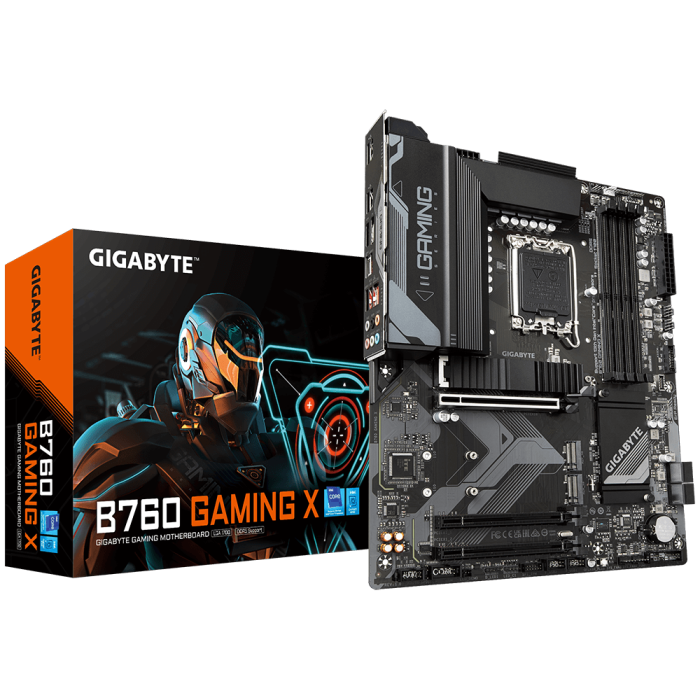

MATIČNA PLOČA GIGABYTE B760 GAMING X, DDR5, SATA3, USB3.2GEN2, DP, LGA1700 ATX

BASE: INTEL LGA 1700
FOR PROCESSORS: 13th/12th Generation Core i7/i5/i3/ Pentium/Celeron
FORMAT: ATX format 30.5 cm x 24.4 cm
CONNECTION CHIP: INTEL B760
MEMORY:
4 x DDR5 DIMM ECC/non-ECC 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600( O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000MHz) up to a total of 128GB capacities, dual channel and XMPsupport
GRAPHICS: YES - via CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
EXPANSION SLOTS:
1 x PCI Express 4.0/3.0 x16
2 x PCI Express 3.0 x1
NETWORK CARD: Realtek 2.5GbE LAN chip
SOUND CARD: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb /s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
EXTERNAL CONNECTIONS :
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
6 x audio jacks
ADDITIONAL:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer website: https://www.gigabyte.com/Motherboard/B760-GAMING-X-rev-10#kf
