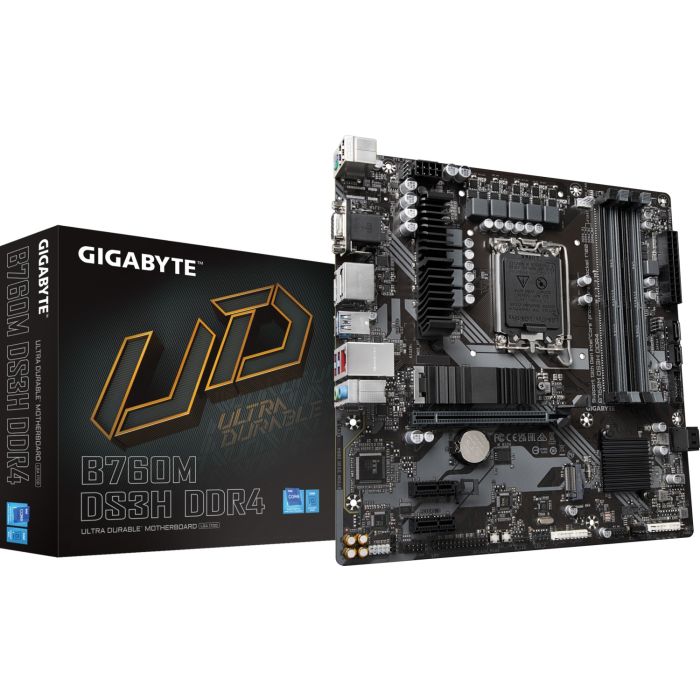

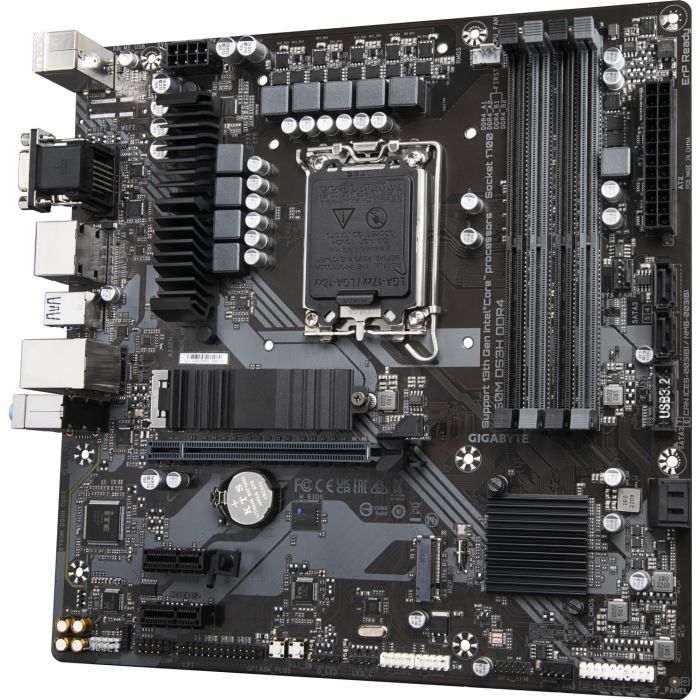

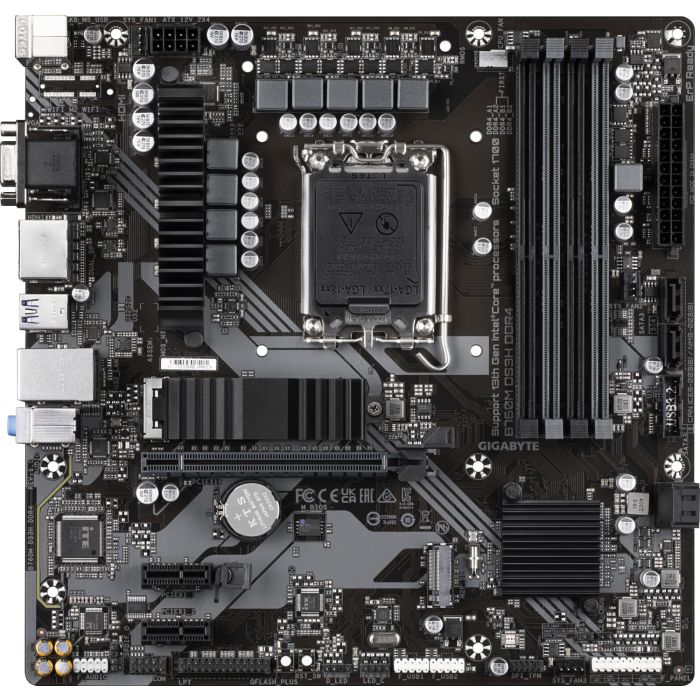

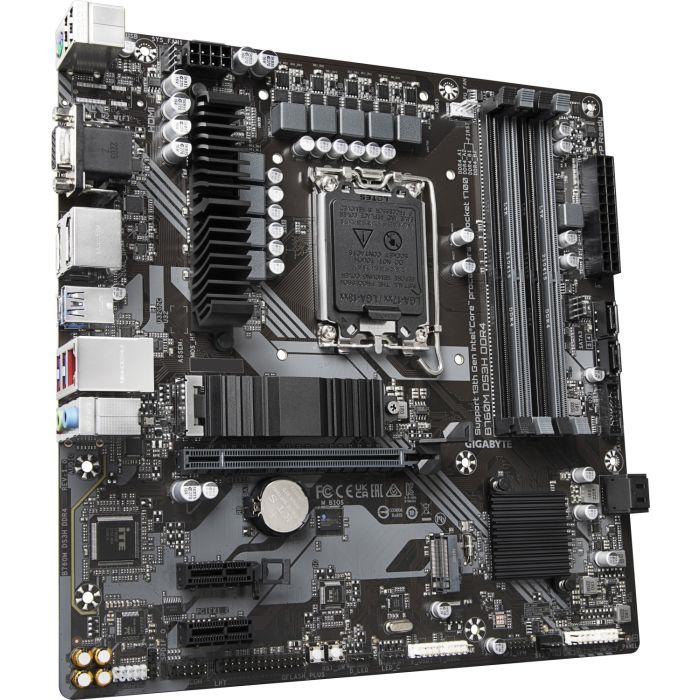

MATIČNA PLOČA GIGABYTE B760M DS3H DDR4, DDR4, SATA3, USB3.2GEN2, DP, LGA1700 MATX

SOCKET : INTEL LGA 1700
FOR PROCESSORS : 13th/ 12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT : mATX format 24.4 cm x 24.4 cm
CONNECTION CHIP : INTEL B760
MEMORY :
4 x DDR4 DIMM ECC/non-ECC 5333(OC)/ 5133(OC)/ 5000(OC)/ 4933(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400 (OC)/ 4300(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3666(OC)/ 3600(OC)/ 3466 (OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz) up to a total capacity of 128GB, dual channel and XMP support
GRAPHICS : YES - via CPU
RAID : RAID 0, RAID 1, RAID 5, and RAID 10
EXPANSION SLOTS :
1 x PCI Express 4.0/ 3.0 x16
2 x PCI Express 3.0 x1
NETWORK CARD : Realtek 2.5GbE LAN chip
SOUND CARD : Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS :
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

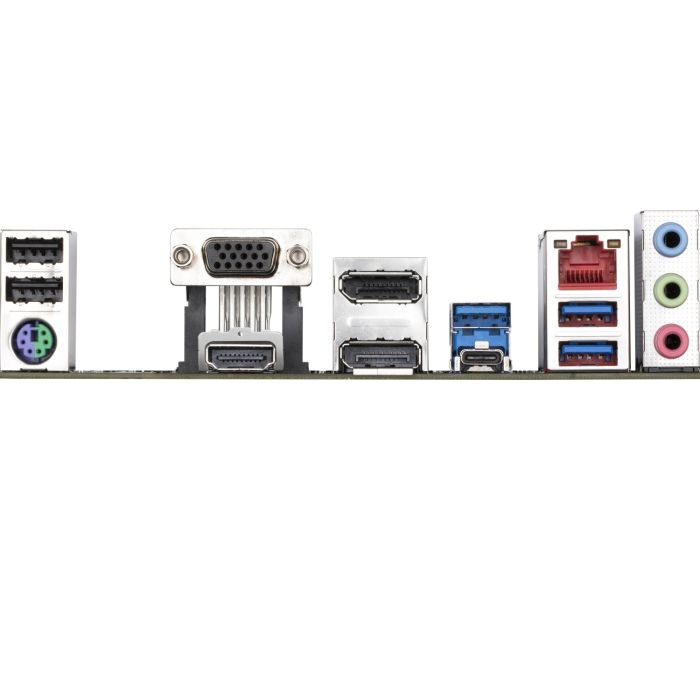

EXTERNAL CONNECTIONS :
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
ADDITIONAL :

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer's website: https://www.gigabyte.com/Motherboard/B760M-DS3H-DDR4-rev-10#kf
