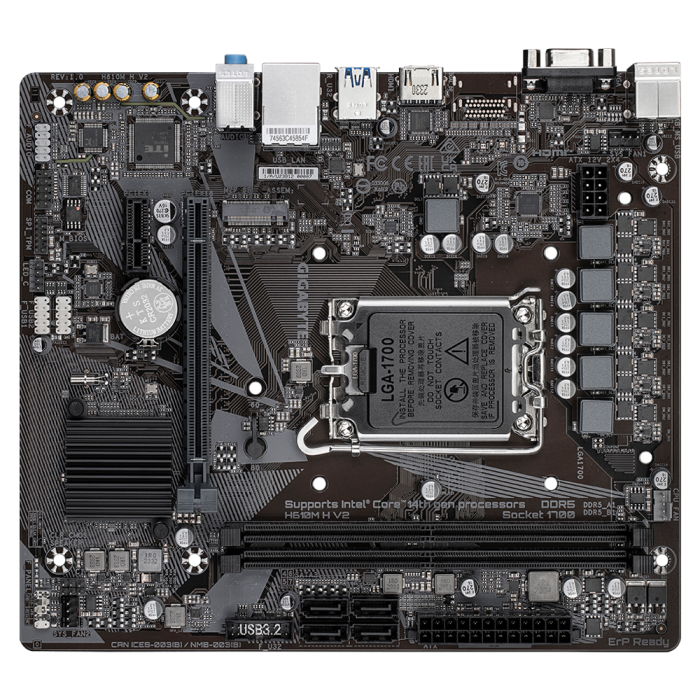

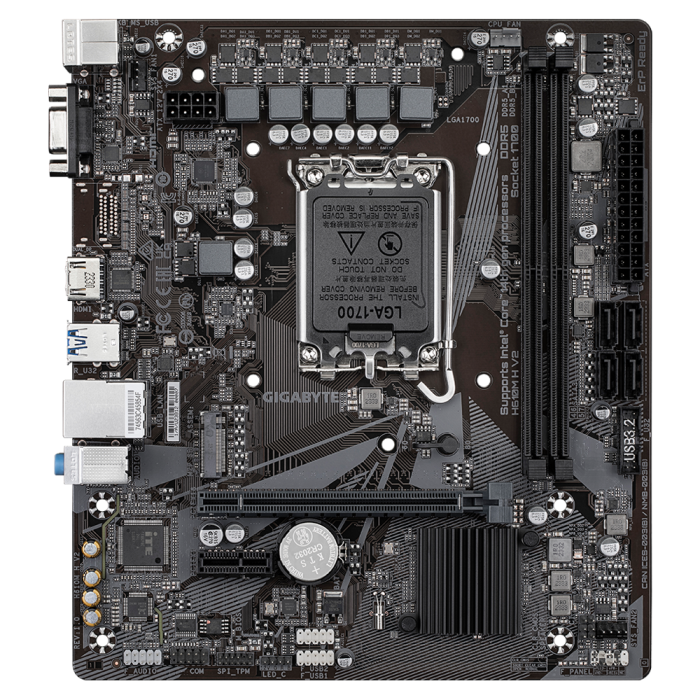

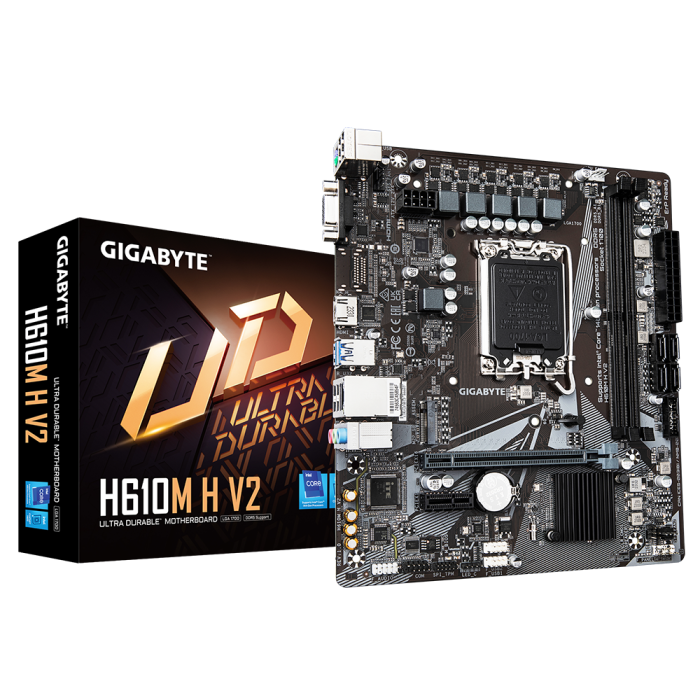

MATIČNA PLOČA GIGABYTE H610M H V2, DDR5, SATA3, HDMI, USB3.2GEN1, LGA1700 MATX

BASE: INTEL LGA 1700
FOR PROCESSORS: Support for the 14th, 13th, and 12th Generation Intel ® Core™, Pentium® Gold and Celeron® Processors< /span>
FORMAT: Micro ATX Form Factor 22.3cm x 19.6cm
CONNECTION CHIP: Intel H610
MEMORY:
2 x DDR5 DIMM (up to 5600/5200/4800/4400< /span>MHz) up to a total of 64GB capacity, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules
GRAPHICS: YES - via CPU
RAID: NO
EXPANSION SLOTS:
1 x PCI Express x16
1 x PCI Express x1
NETWORK CARD: Realtek LAN chip (10/100/1000 Mbit )
SOUND CARD: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

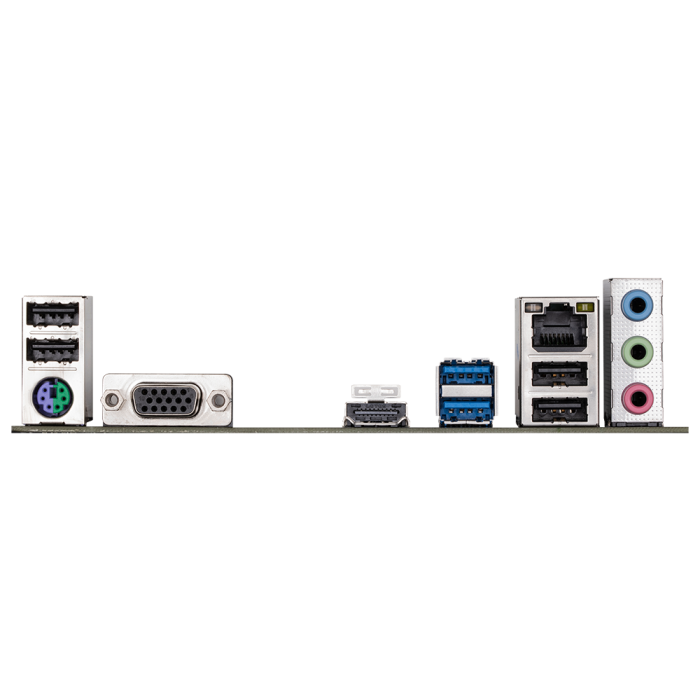

EXTERNAL CONNECTIONS :
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
ADDITIONAL:
