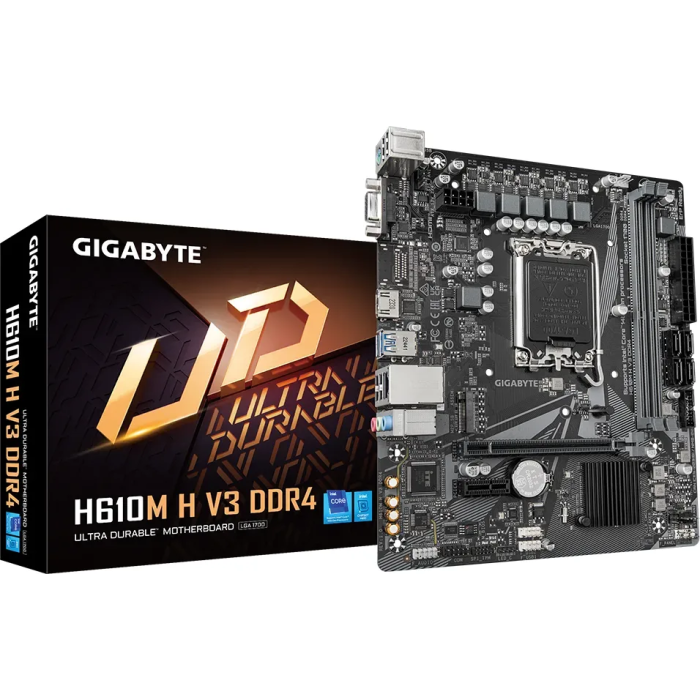

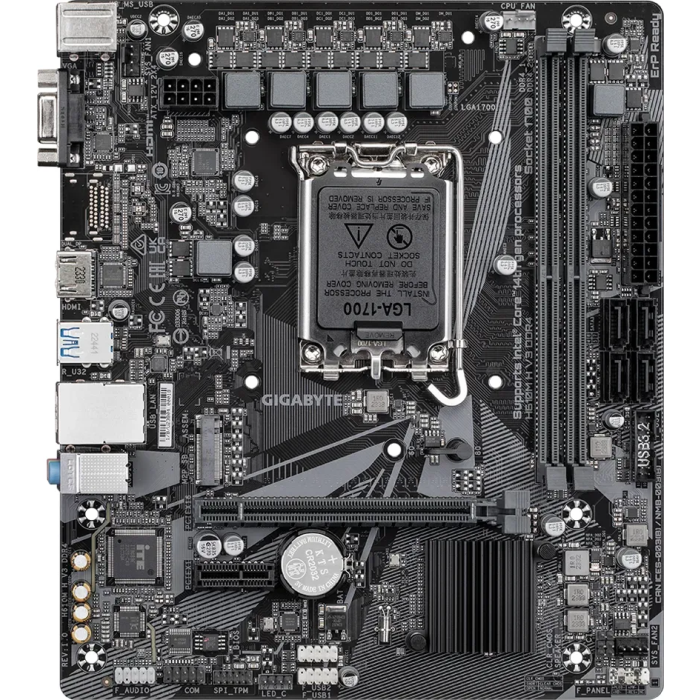

MATIČNA PLOČA GIGABYTE H610M H V3 DDR4, DDR4, SATA3, HDMI, USB3.2GEN1, LGA1700 MATX

BASE: INTEL LGA 1700
FOR PROCESSORS: 12/13GenIntel Core i9/i7/i5/i3 / Intel Pentium / Intel Celeron
FORMAT: Micro ATX Form Factor 22.3cm x 19.3cm
CONNECTIONS CHIP: Intel H610
MEMORY:
2 x DDR4 DIMM (up to 3200/3000/2933 /2666/2400/2133MHz) up to a total of 64GB capacity, dual channel and Extreme Memory Profile (XMP)support
GRAPHICS: YES - via CPU
RAID:NO
EXPANSION SLOTS:
1 x PCI Express x16
1 x PCI Express x1
NETWORK CARD:< /span> Realtek LAN chip (10/100/1000 Mbit)
SOUND CARD: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
INTERNAL CONNECTORS:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2. 0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

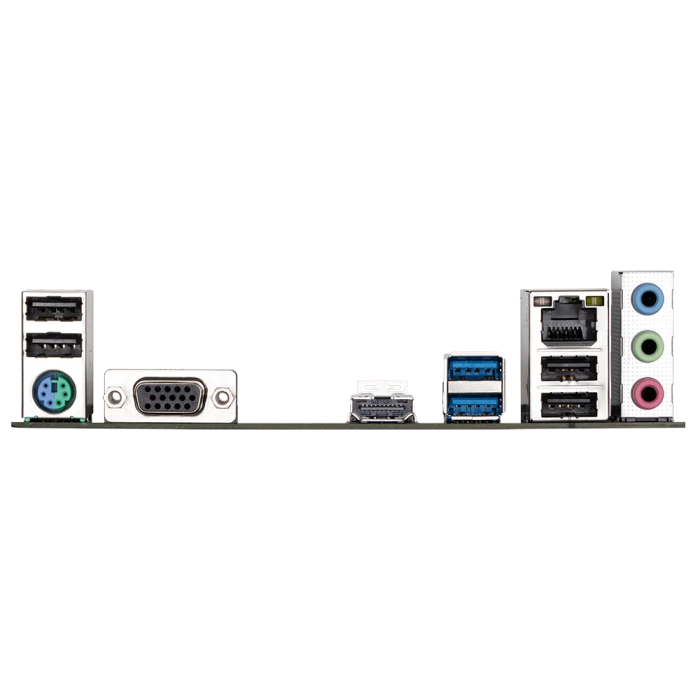

EXTERNAL CONNECTIONS :
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
ADDITIONAL:
