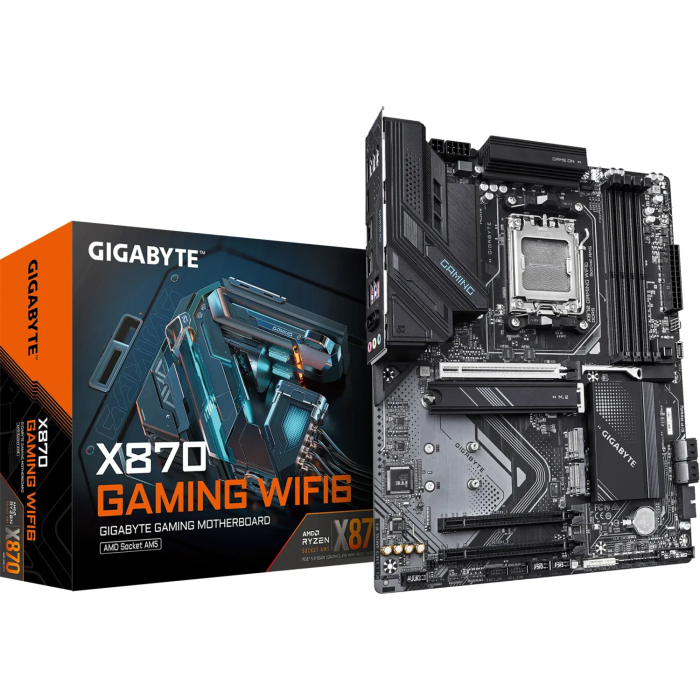

MATIČNA PLOČA GIGABYTE X870 GAMING WIFI6, DDR5, SATA3, USB4, DP, 2.5GBE, WIFI 6, AM5 ATX

BASE: AMD AM5
FOR PROCESSORS: AMD Ryzen 7000/8000/9000 Series Desktop Processors
< strong>FORMAT: ATX format 30.5 cm x 24.4 cm
CONNECTION CHIP: AMD X870
MEMORY:
4 x DIMM DDR5, Max. 256GB, DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600 (OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz
Dual Channel Memory Architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
GRAPHICS: via APU, if it supports
RAID: YES
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
EXPANSION SLOTS:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
NETWORK CARD:
Realtek 2.5GbE LAN chip + Wi-Fi 6 + BLUETOOTH 5.3
Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
SOUND CARD: Realtek Surround Sound High Definition Audio CODEC INTERNAL CONNECTORS: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
4 x USB 2.0/1.1 headers
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper

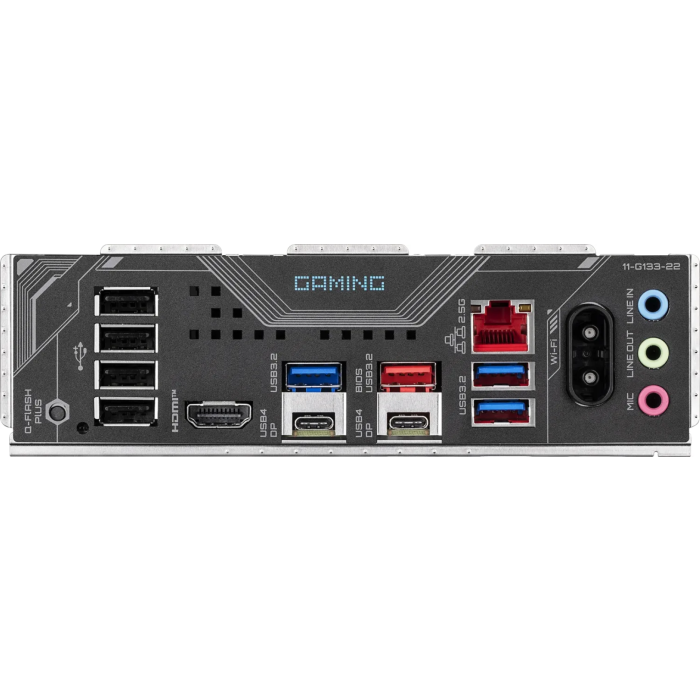

1 x Clear CMOS jumper< br />EXTERNAL CONNECTIONS:
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports< br />1 x RJ-45 port
3 x audio jacks
EXTRA:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
br />Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support forWindows 10 64-bit

Manufacturer's website: https://www.gigabyte.com/Motherboard/X870-GAMING-WIFI6#kf
