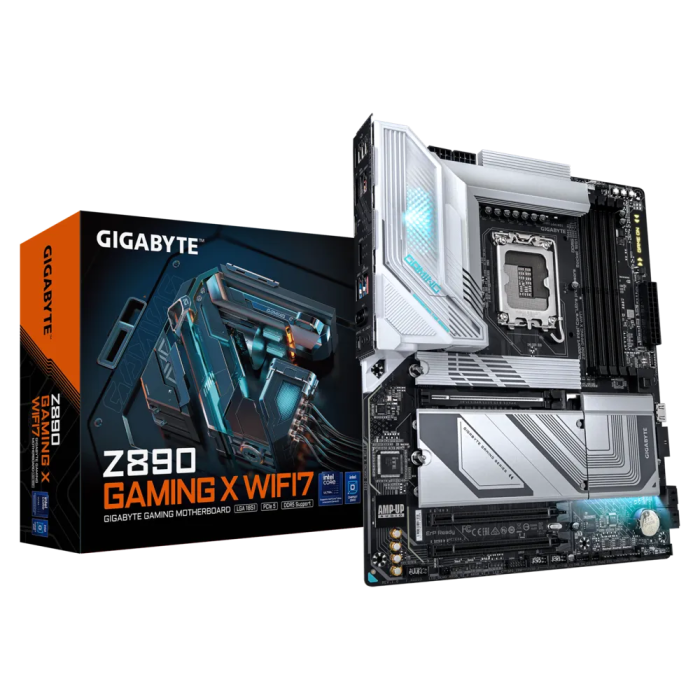

MATIČNA PLOČA GIGABYTE Z890 GAMING X WIFI7, DDR5, SATA3, USB4, DP, 2.5GBE, WIFI 7, LGA1851 ATX

BASE: INTEL LGA1851
FOR PROCESSORS: Intel Core Ultra Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm CONNECTION CHIP: Intel Z890 Express MEMORY:
4 x DDR5 (8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000 (O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MHz) up to a total of 256GB capacity, dual channel and Extreme Memory Profile (XMP) support, >Support for non-ECC /ECC Un-buffered DIMM(operate in non-ECC mode),Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) ,Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
GRAPHICS: via CPU
RAID: YES (0,1,5,10) NVMe SATA
EXPANSION SLOTS :
1 x PCIe 5.0/4.0/3.0 x16 (x16 mode)
2 x PCIe 4.0 x16 (x4 mode)
NETWORK CARD: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) + Wi-Fi 7 + BLUETOOTH 5.4
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)< br />- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
SOUND CARD: Realtek® High Definition Audio Audio CODEC
INTERNAL CONNECTIONS:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header< br />1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note )
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

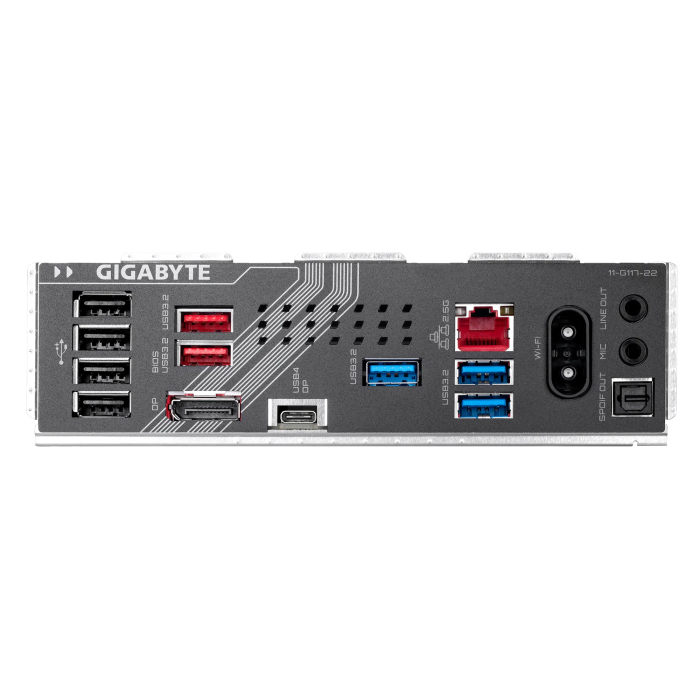

< strong>EXTERNAL CONNECTIONS:
1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type -A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
ADDITIONAL:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
ater cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
br />Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Manufacturer website: https://www.gigabyte.com/Motherboard/Z890-GAMING-X-WIFI7#kf
