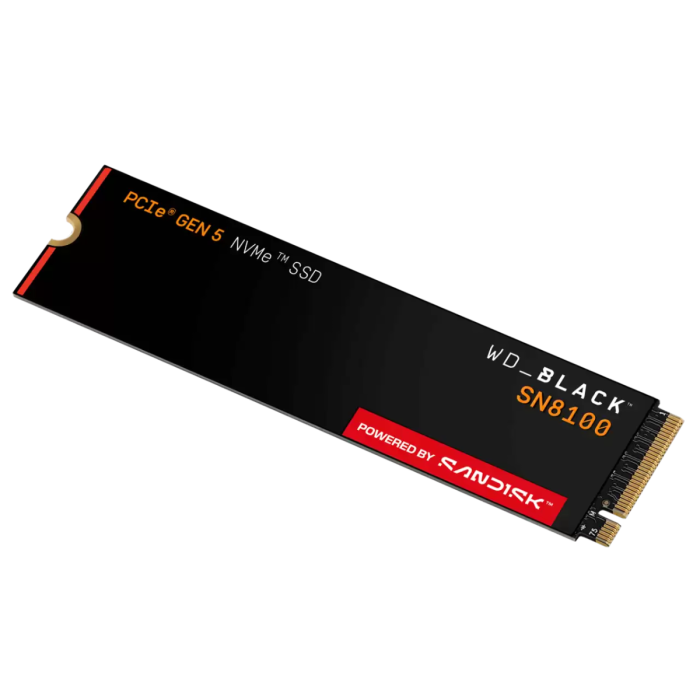

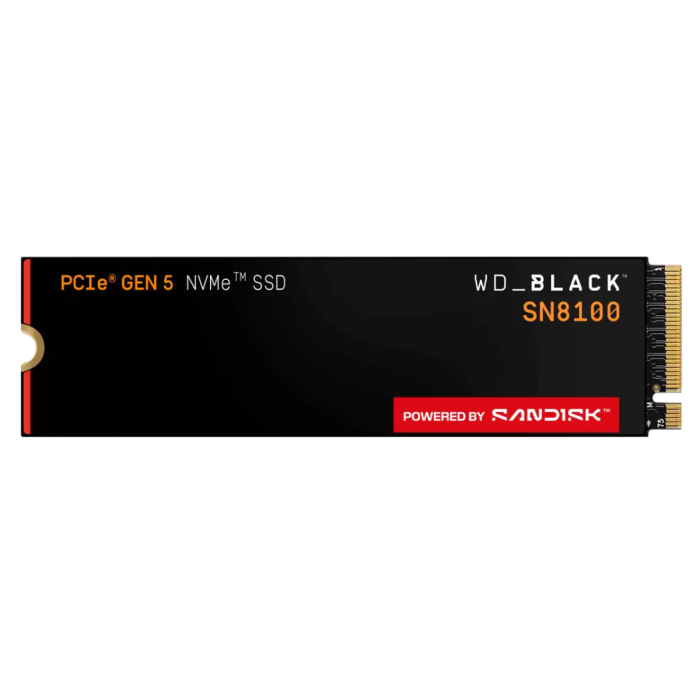

SanDisk 1TB WD Black SN8100 M.2 2280 PCI-e 5.0 NVMe 2.0 SSD drive

The SanDisk WD Black SN8100 (WDS100T1X0M) is a 1 TB NVMe SSD in M.2 2280 form factor with the latest PCIe Gen5×4 interface. It delivers sequential read speeds of up to 14,900 MB/s and write speeds of up to 11,000 MB/s, with consistent random performance of up to 1.6 M IOPS for read and 2.4 M IOPS for write. It uses TLC 3D CBA NAND, supported by DRAM and nCache 4.0. It is designed for demanding workflows such as professional creativity, AI system use, and gaming.

Specifications:
Model: WDS100T1X0M
Capacity: 1 TB
Form factor: M.2 2280
Interface: PCIe Gen5×4 NVMe
Sequential read: up to 14,900 MB/s
Sequential write: up to 11,000 MB/s
Random read (4 KB): up to 1,600,000 IOPS
Random write (4 KB): up to 2,400,000 IOPS
NAND: TLC 3D CBA NAND
Controller: DRAM-backed (exact model unknown)
Endurance (TBW): 600 TB (1 TB model)
MTTF: 1,750,000 hours
Compatibility: Windows, Linux
Dimensions (L × W × H): 80 × 22 × 2.38 mm
Weight: approx. 7.5 g
Certifications: CE, FCC, RCM, UKCA, BSMI, VCCI, KCC, Morocco, TÜV, UL
