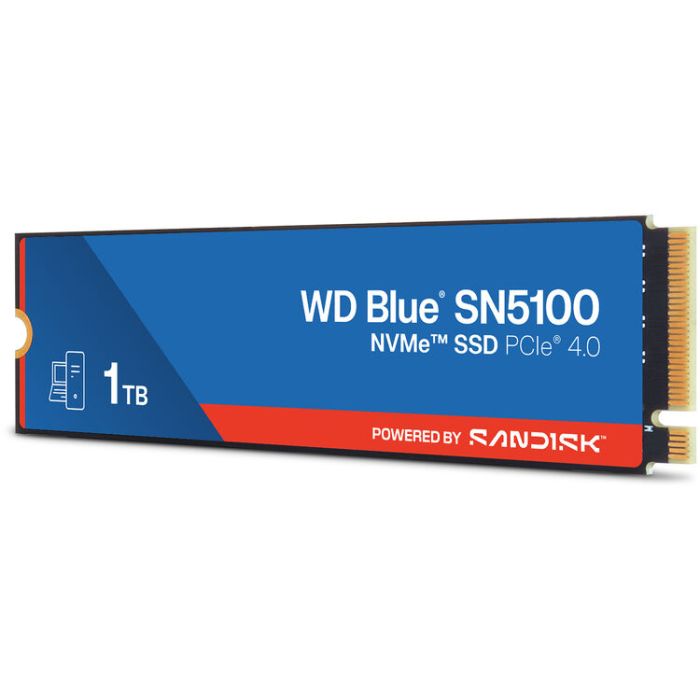

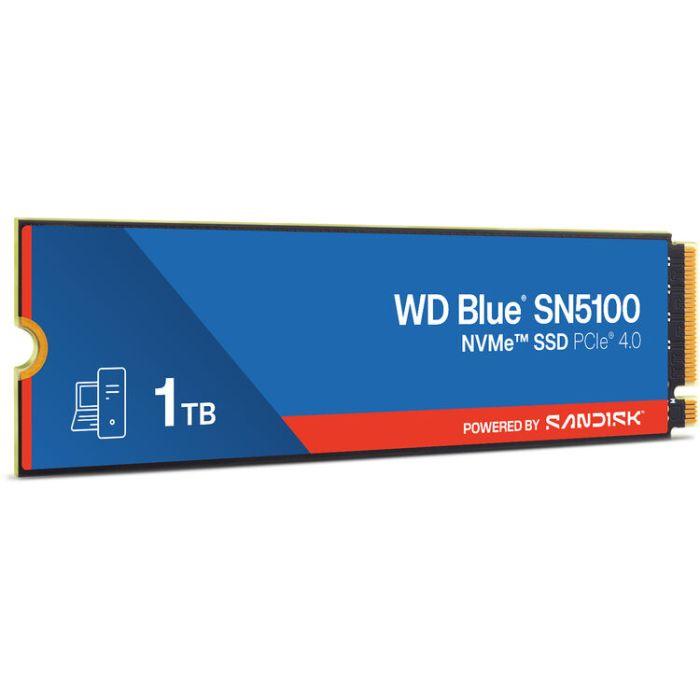

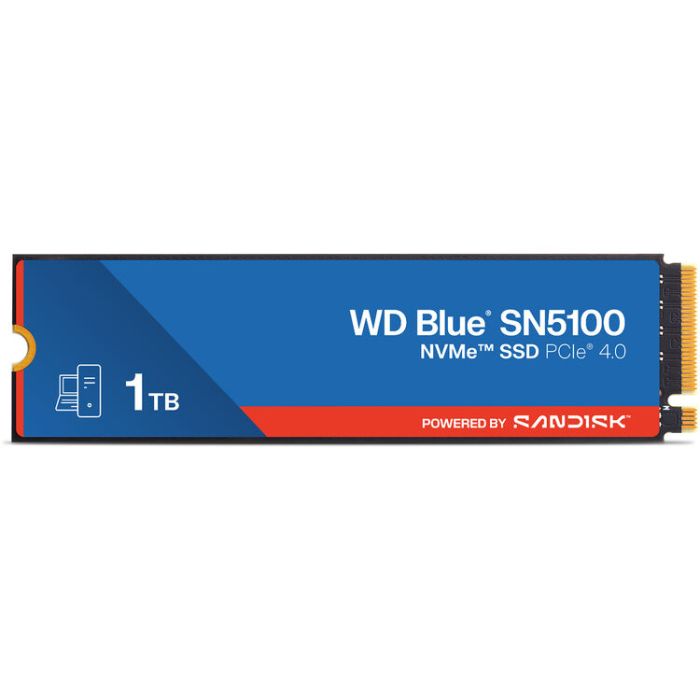

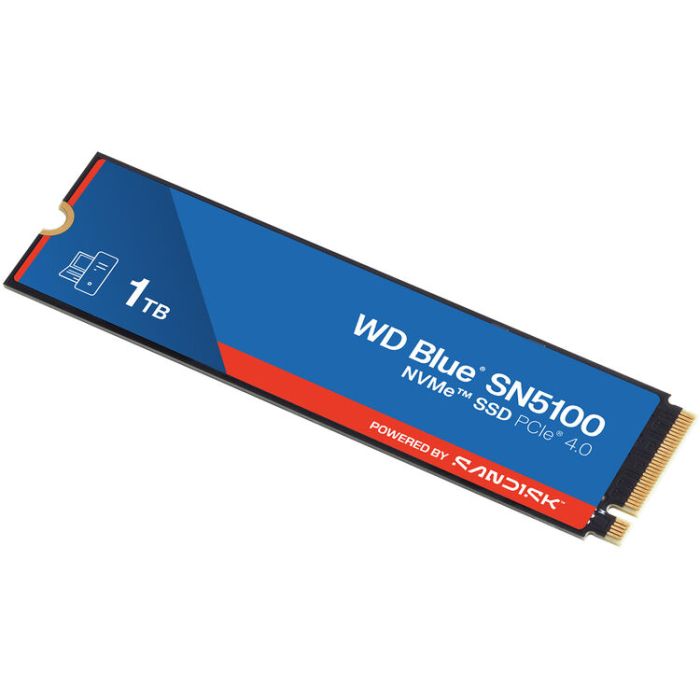

SanDisk 1TB WD Blue SN5100 M.2 2280 PCI-e 4.0 NVMe 1.4c SSD drive

The SanDisk WDS100T5B0E from the WD Blue SN5100 series offers 1 TB of capacity in the M.2 2280 format. Using the PCIe® Gen 4.0×4 (NVMe™) interface, it delivers exceptional data transfer speeds and response times. The SSD uses 3D QLC NAND technology and nCache™ 4.0 to optimize data flows, making it suitable for processing large files, creating content, and upgrading personal or professional systems. It is compatible with the M.2 2280 slot and supports PCIe Gen4 and is backward compatible with Gen3. The balance between performance and capacity makes this drive ideal for users looking for quality storage and high speed without compromise.

Specifications:
Model: WDS100T5B0E
Capacity: 1 TB
Form factor: M.2 2280
Interface: PCIe 4.0×4 (NVMe)
Recording technology: 3D QLC NAND
Sequential read: up to approximately 7,100 MB/s
Sequential write: up to approximately 6,700 MB/s
Random read (4 KB): up to approximately 1,000,000 IOPS
Random write (4 KB): up to approximately 1,300,000 IOPS
TBW: 600
MTBF: up to 1,750,000 hours
TRIM support: Yes
S.M.A.R.T. support: yes
LDPC ECC support: yes
Power consumption (active): approx. 3.9 W
Power consumption (idle): up to 4 mW
Dimensions (L × W × H): approximately 80 × 22 × 2.38 mm
Weight: approx. 5.7 g

Package contents: SSD WDS100T5B0E, documentation
