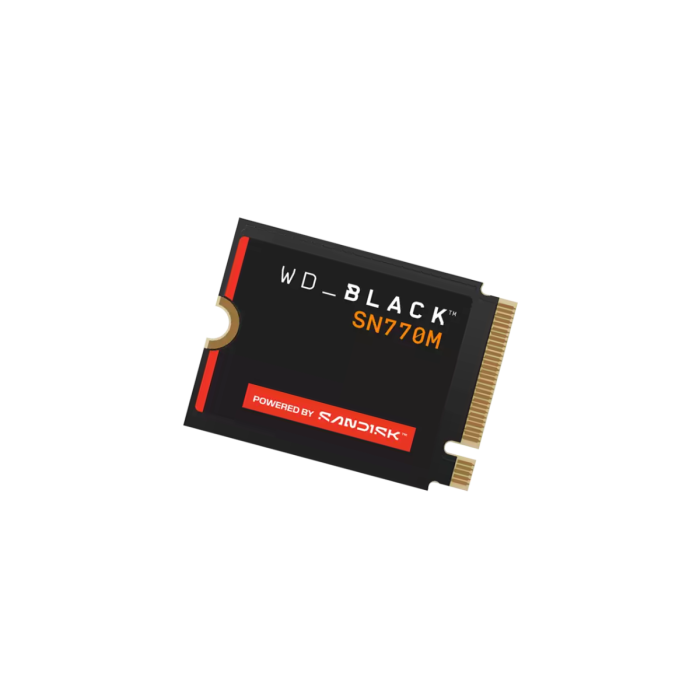

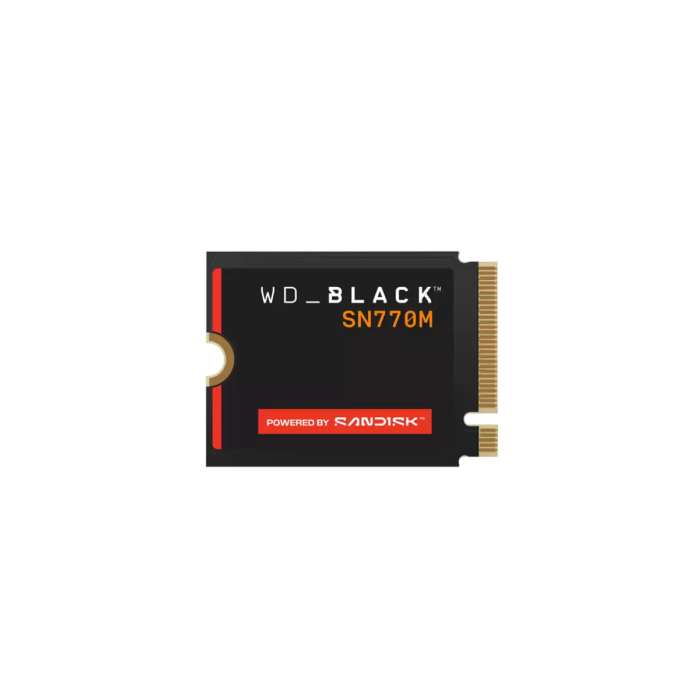

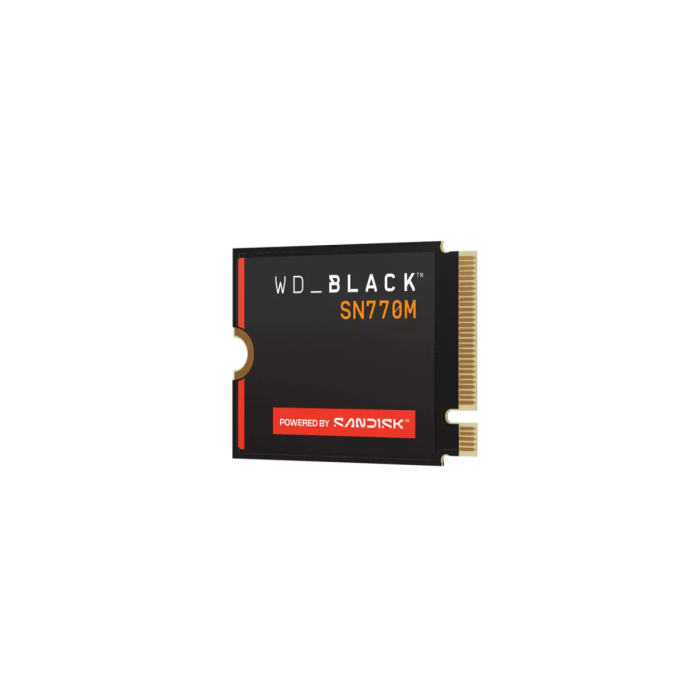

SanDisk 2TB WD Black SN770M M.2 2230 PCI-e 4.0 NVMe 1.4 SSD drive

The SanDisk WD Black SN770M (WDS200T3X0G) is a 2 TB NVMe SSD in a compact M.2 2230 form factor, developed for demanding mobile platforms. It offers sequential read speeds of up to 5,150 MB/s and write speeds of up to 4,850 MB/s. It uses 112-layer 3D TLC NAND (Kioxia BiCS5) without DRAM, with a Polaris MP16+ controller (SanDisk 20-82-10081). Random performance is up to 650,000 IOPS for read and 800,000 IOPS for write. It uses nCache 4.0 and supports DirectStorage. It is compatible with Windows, Linux, and portable gaming devices, and is supported by WD SSD Dashboard.

Specifications:
Model: WDS200T3X0G
Capacity: 2 TB
Form factor: M.2 2230
Interface: PCIe Gen4×4 NVMe
Sequential read: up to 5,150 MB/s
Sequential write: up to 4,850 MB/s
Random read (4 KB): up to 650,000 IOPS
Random write (4 KB): up to 800,000 IOPS
NAND: 112-layer 3D TLC NAND (Kioxia BiCS5)
Controller: Polaris MP16+ (SanDisk 20-82-10081), DRAM-less
Endurance (TBW): 1,200 TB
MTBF: 1,750,000 hours
Compatibility: Windows, Linux, portable gaming devices (Steam Deck, ASUS ROG Ally)
Dimensions (L × W × H): ≈ 30 × 22.15 × 2.38 mm
Weight: approx. 2.8 g
Certifications: CE, FCC, RCM, UKCA, BSMI, VCCI, KCC, Morocco, TÜV, UL
