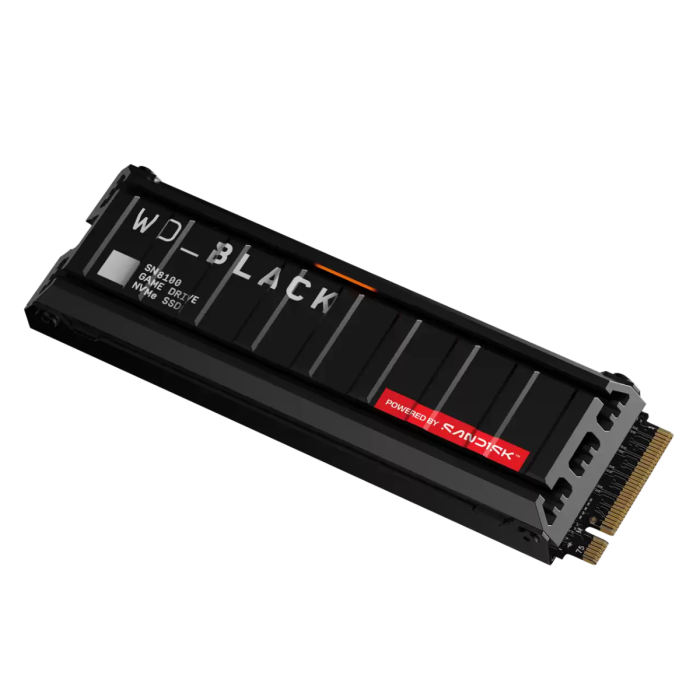

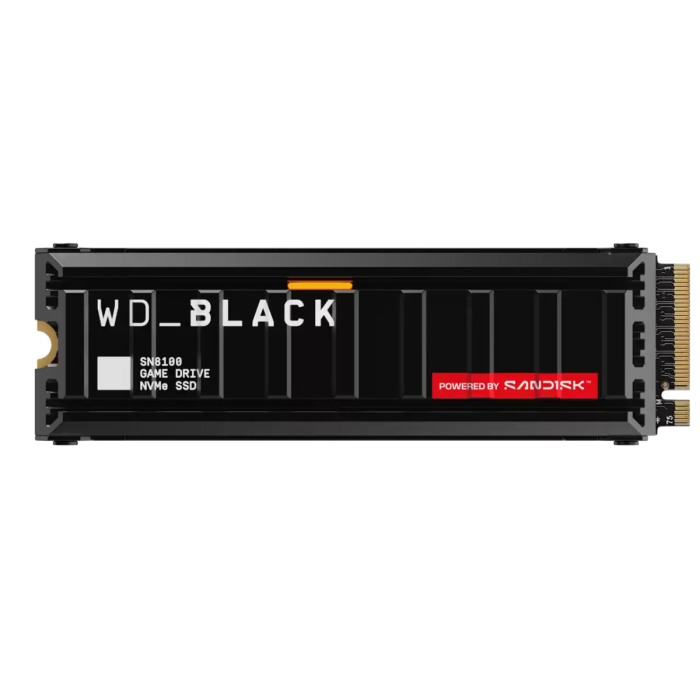

SanDisk 2TB WD Black SN8100 M.2 2280 PCI-e 5.0 NVMe 2.0 SSD drive with heat sink

The SanDisk WD Black SN8100 (WDS200T1XHM) is a high-end NVMe SSD with PCIe Gen5×4 support. It offers exceptional sequential speeds of up to 14,900 MB/s read and 14,000 MB/s write. It uses 3D TLC CBA NAND, SM2508 controller, and DDR4-DRAM cache. It achieves up to 2.3M IOPS (read) and 2.4M IOPS (write) in random operations. The built-in anodized aluminum heatsink with RGB lighting ensures stable operation even under high loads.

Specifications:
Model: WDS200T1XHM
Capacity: 2 TB
Form factor: M.2 2280
Interface: PCIe Gen5×4 NVMe
Sequential read: up to 14,900 MB/s
Sequential write: up to 14,000 MB/s
Random read (4 KB): up to 2,300,000 IOPS
Random write (4 KB): up to 2,400,000 IOPS
NAND: 3D TLC CBA NAND (Kioxia BiCS8, 218 layers)
Controller: Silicon Motion SM2508 (DDR4-DRAM cache)
TBW: 1,200 TB
MTBF: 1,750,000 hours
Compatibility: Windows, Linux, PS5 (heatsink meet), MacOS
Dimensions (L × W × H): 80 × 22 × 2.38 mm (without heatsink); integrated heatsink adds thickness and weight
Weight: approx. 7.5 g (without heatsink), approx. 31 g (with heatsink)
Certifications: CE, FCC, RCM, UKCA, BSMI, VCCI, KCC, Morocco, TÜV, UL
