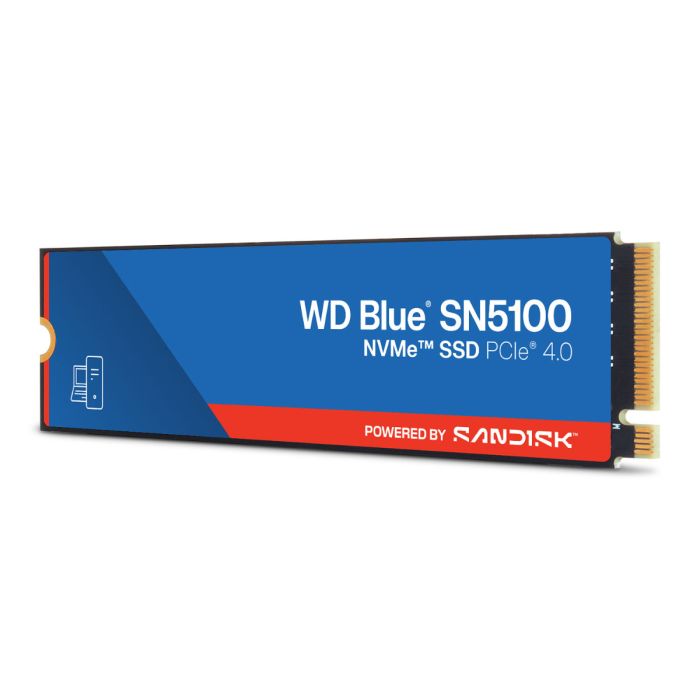

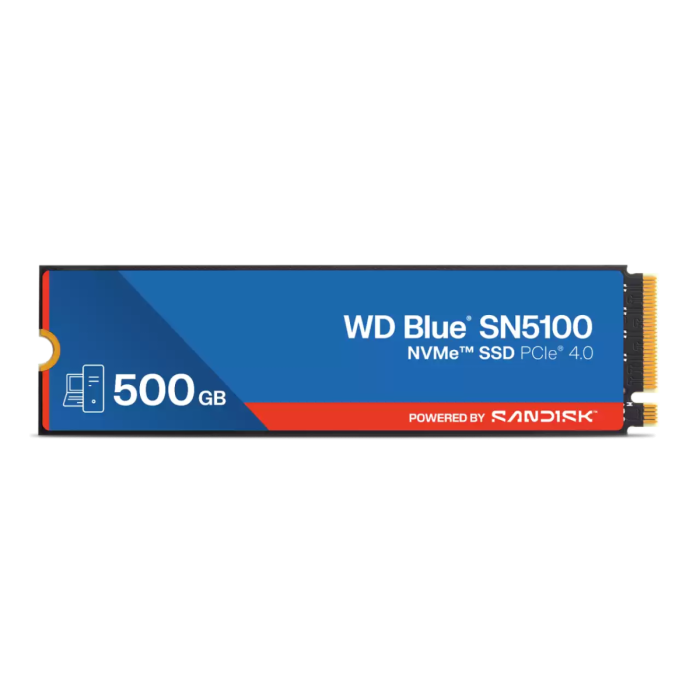

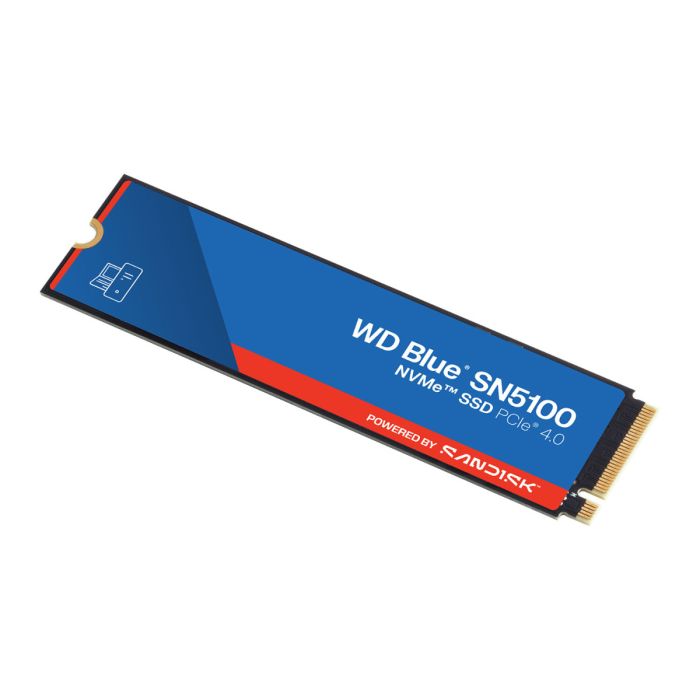

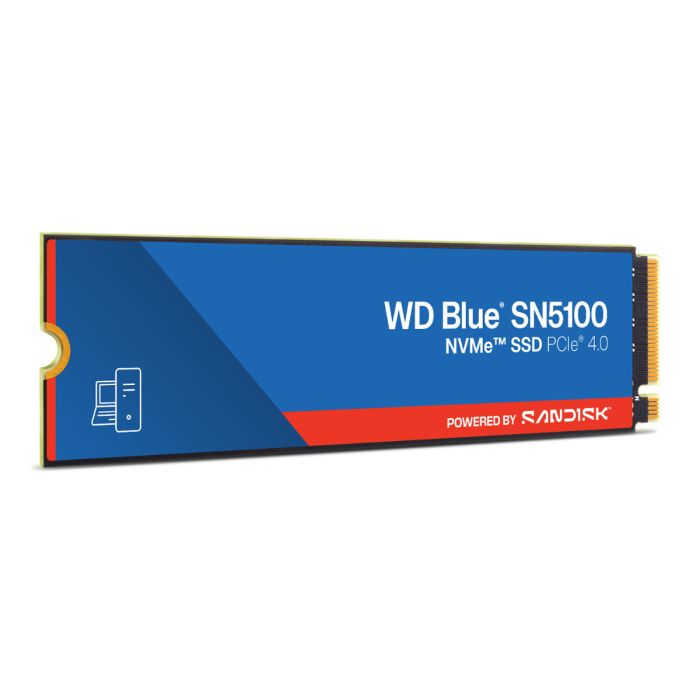

SanDisk 500GB WD Blue SN5100 M.2 2280 PCI-e 4.0 NVMe 1.4c SSD drive

The SanDisk WD Blue SN5100 with the model number WDS500G5B0E is an internal M.2 2280 NVMe SSD with a capacity of 500 GB, designed for fast and reliable data storage. The drive uses 3D CBA NAND technology and leverages the PCIe 4.0 ×4 (NVMe) interface, enabling high transfer speeds and excellent responsiveness. It achieves read speeds of up to 6,600 MB/s and write speeds of up to 5,600 MB/s, offering up to 660,000 IOPS in random read and 1,100,000 IOPS in random write. It is compatible with all systems that support M.2 2280 slots and is the ideal choice for content creators, gamers, and users who need fast and stable performance. It is suitable for system recovery, upgrades, or use in business and home computers where speed is of the essence.

Specifications:
Model: WDS500G5B0E
Capacity: 500 GB
Form factor: M.2 2280
Interface: PCIe 4.0×4 (NVMe)
Recording technology: SANDISK® QLC 3D CBA NAND
Sequential read: up to 6,600 MB/s
Sequential write: up to 5,600 MB/s
Random read (4 KB): up to 660,000 IOPS
Random write (4 KB): up to 1,100,000 IOPS
TBW: 300 TB
MTBF: up to 1,750,000 hours
TRIM support: Yes
S.M.A.R.T. support: yes
LDPC ECC support: yes
Power consumption (active): approx. 3.8 W
Power consumption (idle): up to 4 mW
Dimensions (L × W × H): approx. 80 × 22 × 2.38 mm
Weight: approx. 5.7 g

Package contents: SSD WDS500G5B0E, documentation
