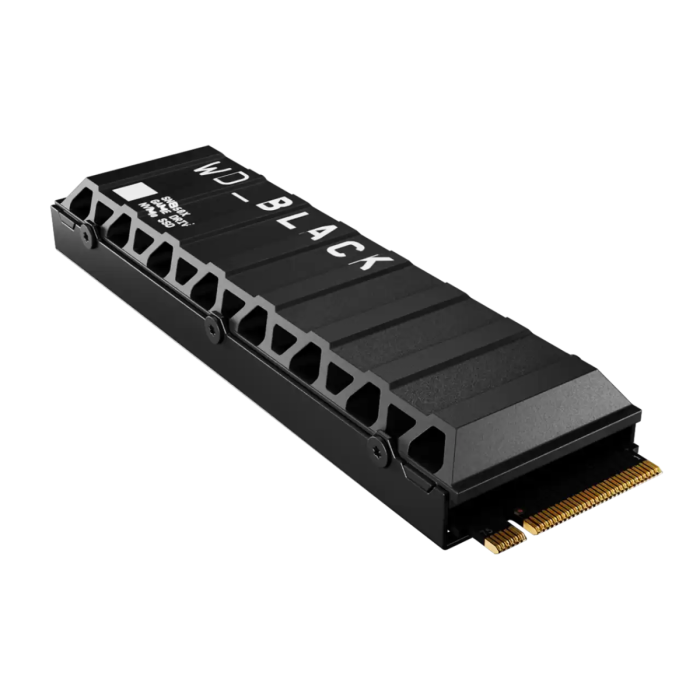

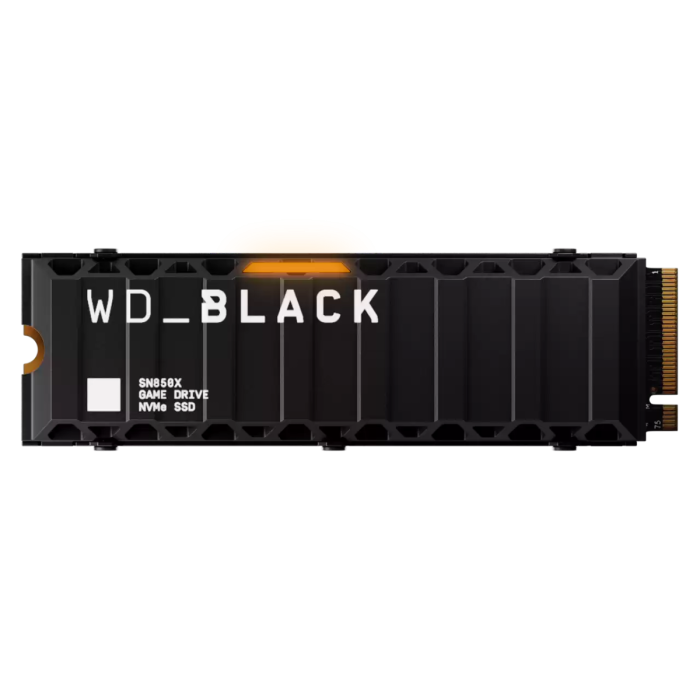

SanDisk 8TB WD Black SN850X M.2 2280 PCI-e 4.0 NVMe 1.4 SSD drive with heatsink

The SanDisk WD BLACK SN850X (WDS800T2XHE) model offers a massive 8 TB capacity in a standard M.2 2280 format, with a PCIe 4.0 ×4 interface and NVMe protocol, enabling extremely fast data transfer. With speeds of up to approximately 7,300 MB/s for reading and up to approximately 6,600 MB/s for writing, the SSD is optimized for gaming platforms, content creation, and demanding situations where time is of the essence. It uses 3D TLC NAND technology and includes a DRAM cache, contributing to reliable operation under high loads. The drive also supports hardware encryption (TCG Opal) and is optimized to support Microsoft DirectStorage. For demanding users who want maximum performance, this solution offers the highest level of performance.

Specifications:
Model: WDS800T2XHE
Capacity: 8 TB
Form factor: M.2 2280
Interface: PCIe 4.0 ×4 NVMe
Sequential read: up to ≈ 7,300 MB/s
Sequential write: up to ≈ 6,600 MB/s
Random read (4 KB): up to ≈ 1,200,000 IOPS
Random write (4 KB): up to ≈ 1,200,000 IOPS
Writing technology: TLC 3D NAND
Endurance (TBW): 4800 units
Hardware encryption: yes (TCG Opal V2.01)
MTBF: approximately 1,750,000 hours
Compatibility: Windows 10+, PlayStation 5 (heatsink model)
Dimensions (L × W × H): approx. 80 × 22 × 2.38 mm
Weight: approximately 30.4 g
Certifications: BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI

Package contents: SSD WDS800T2XHE, documentation
