- 16 × 10/100/1000Mbps RJ45
- Innovative energy-efficient technology saves energy consumption
- Supports self-learning MAC address and automatic MDI/MDIX
- Standard 19-inch metal housing for cabinet mounting

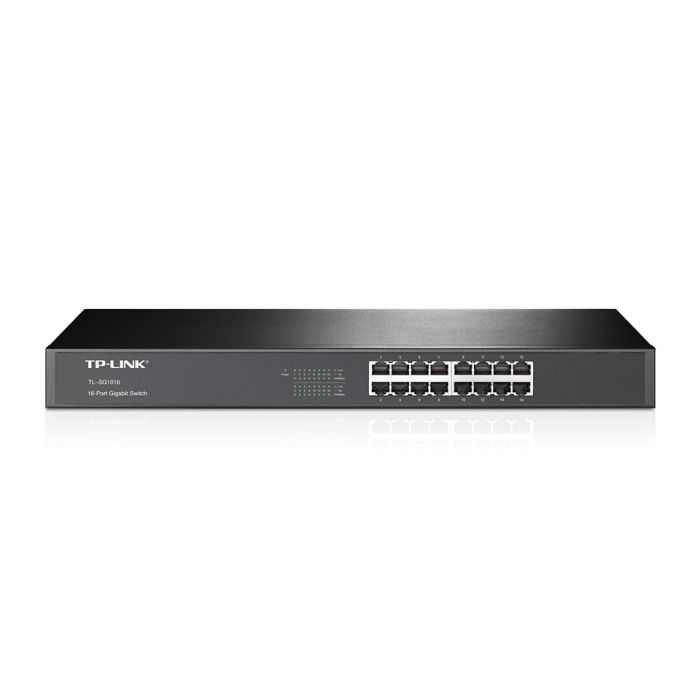

The TL-SG1016 Gigabit Ethernet Switch offers high performance, low cost, and easy use, with seamless and standard upgrades to upgrade your existing network to a 1000 Mbps network.
All 16 ports support MDI/MDIX auto, so there is no need to worry about cable type, just plug and play. In addition, with innovative energy-efficient technology, the TL-SG1016 can save energy consumption, and 80% of the packaging material can be recycled, making it an environmentally friendly solution for your business network.
TP-LINK Green Technology
This new generation Gigabit Switch TL-SG1016 features the latest innovative energy-efficient technologies that can greatly increase your network capacity with much less power. It automatically adjusts power consumption based on the connection status to reduce your network's carbon footprint. It also complies with the EU RoHS directive, which prohibits the use of certain hazardous substances. In addition, 80% of the packaging can be recycled.
High Performance All 16 Gigabit RJ-45 ports can provide high-speed file transfers and are also compatible with 10Mbps and 100Mbps Ethernet devices.
The TL-SG1016 advances and filters packets at full wire speed for maximum throughput with its non-blocking switching architecture. With 10KB Jumbo Frame, the performance of large file transfers is significantly improved. And IEEE 802.3x flow control for Full Duplex mode and Backpressure for Half-Duplex mode alleviate traffic jams and allow the TL-SG1016 to operate reliably. It is an excellent choice for upgrading your network to Gigabit while protecting your previous investment.
Easy to use
Technical Specifications:
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface |
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity |
Fanless |
| Power Supply |
100-240VAC, 50/60Hz |
| Dimensions (W x D x H) |
17.3*7.1*1.7 in. (440*180*44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
9.26W (220V/50Hz) |
| Max Heat Dissipation |
31.60 BTU/h |
| PERFORMANCE |
| Switching Capacity |
32Gbps |
| Packet Forwarding Rate |
23.8Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10KB |
| QoS |
802.1p/DSCP QoS*
*Only for V12 and later versions |
| Green Technology |
Yes |
| Transfer Method |
Store-and-Forward |
| OTHER |
| Certification |
FCC, CE, RoHS |
| Package Contents |
16-Port Gigabit Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
|
