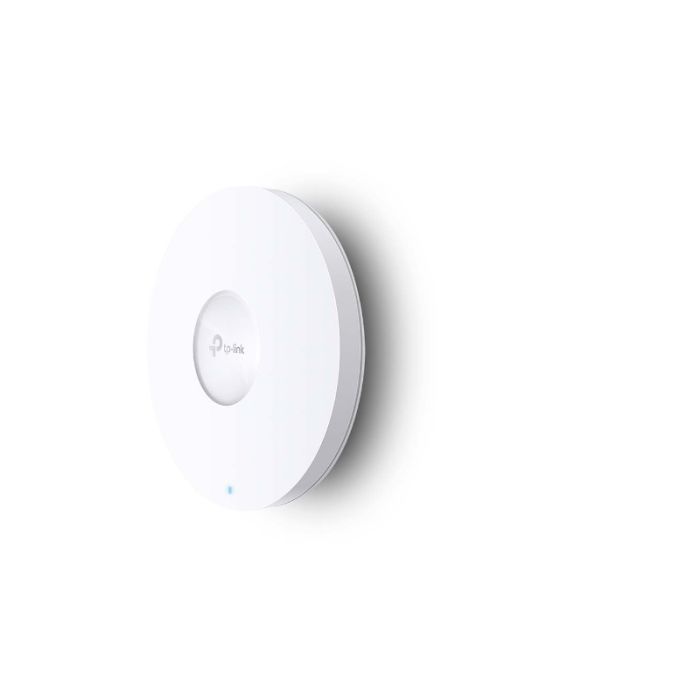

TP-LINK 1800Mbps Wireless AX WiFi 6 Ceiling Access Point

Super-fast WiFi 6 speeds: simultaneous 574 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz for a combined 1775 Mbps Wi-Fi speed.
Highly efficient WiFi 6: Multiple connected devices can enjoy higher speeds.
Centralized cloud management: Manage your entire network locally or from the cloud via the web user interface or Omada app.
Seamless roaming: Video streams and voice calls are not interrupted when users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+: Supports DC (adapter included), 802.3at PoE+, and passive PoE for flexible installations.
Ultra-slim design: The sleek Φ160 mm × 33.6 mm design brings more agility.
Secure guest network: Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and numerous wireless security technologies.

Interface: 1× Gigabit Ethernet (RJ-45) Port
Power supply: • 802.3at PoE
• 48 V passive PoE
• 12 V / 1 A DC (power supply included)
Power consumption:
11.0 W (for PoE);
9.9 W (for DC)
Dimensions: (W x D x H) 160 × 160 × 33.6 mm
Antenna type: Internal Omni antenna
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 5 dBi
Mounting:
Ceiling/wall mount (mounting kits included)
Junction box mounting
Wireless standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal speed:
5 GHz: up to 1201 Mbps
2.4 GHz: up to 574 Mbps
Wireless features:
1024-QAM
4× longer OFDM symbol
OFDMA
Multiple SSIDs (up to 16 SSIDs, 8 per band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (adjust transmit power in dBm)
QoS (WMM)
MU-MIMO
Seamless roaming
Omada Mesh
Band steering
Load balancing
Fair play
Beamforming
Speed limit
Restart schedule
Wireless schedule
Wireless statistics based on SSID/AP/client
Wireless security • Proxy portal authentication
Access control
Wireless MAC address filtering
Wireless isolation between clients
SSID mapping to VLAN
Rogue AP detection
802.1X support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power
CE:
<20 dBm (2.4 GHz, EIRP
<23 dBm (5 GHz band 1/2, EIRP) <25 dBm (5 GHz band 3)
FCC:
<25 dBm (2.4 GHz
<25 dBm (5 GHz)
MANAGEMENT
Omada app Yes
Centralized management
Omada Cloud Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller
Cloud access Yes, through
Email alerts Yes
LED ON/OFF Control Yes
MAC Access Control Management D
SNMP v1, v2c, v3
System logging Local/remote system log Local/remote system log
SSH Yes
Web Management HTTP/HTTPS
L3 Management Yes
Multi-site management Yes
VLAN management Yes
Touchless enablement Yes. Requires use of Omada cloud controller
CE, FCC, RoHS certification
Package contents:
EAP610
Charger
Ceiling/wall mounting kits
Installation instructions
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
