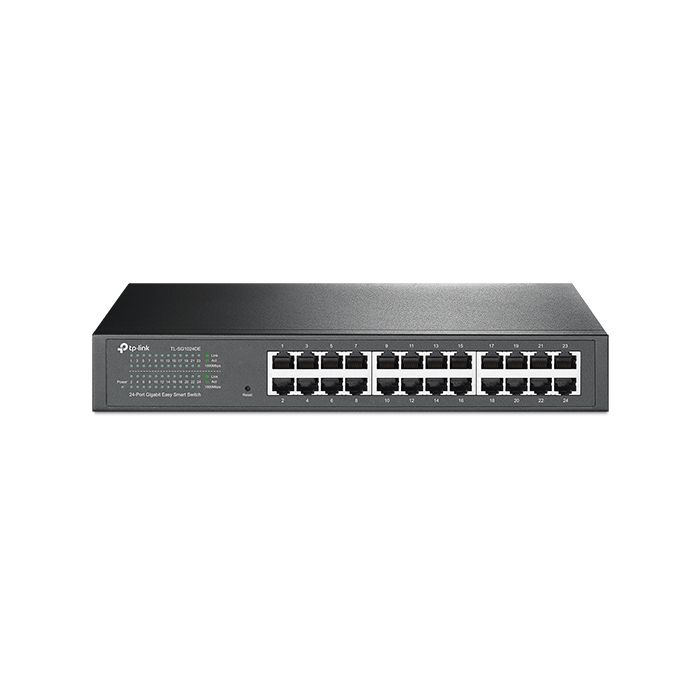

TP-LINK 24-port Gigabit 10/100/1000 switch TL-SG1024DE

The TL-SG1024DE 24-Port Gigabit Easy Smart Switch is the ideal upgrade from an unmanaged switch for small and medium business networks that require simple network management. Network administrators can effectively monitor traffic with Port Mirroring, Prevention Loop, and Cable Diagnostics features. To optimize traffic on your business network, the TL-SG1024DE offers port/802.1p/DSCP-based QoS1 to ensure that delay-sensitive traffic runs smoothly and without interference. In addition, VLAN based on port, tag, and MTU can enhance security and meet more network segmentation requirements. Furthermore, with its innovative energy-efficient technology, the TL-SG1024DE can save energy consumption, making it an environmentally friendly solution for your business network.

TP-LINK's Gigabit Easy Smart Switch, TL-SG1024DE, offers network monitoring for users. With port mirroring, loop prevention, and cable diagnostics, the TL-SG1024DE can identify and even locate connection problems in your business network. In addition, administrators can prioritize traffic based on Port Priority and Port/802.1p/DSCP Priority Priority to ensure that voice and video are always clear, smooth, and lag-free. Furthermore, to enhance network security and efficiency, the TL-SG1024DE supports MTU VLAN, port-based VLAN, and 802.1Q-based VLAN. The TL-SG1024DE is an upgrade from an unmanaged plug-and-play switch, providing great value while strengthening your network and delivering great value to the end user.

Now you have the opportunity to go green while upgrading to a gigabit network! This new generation of 24-port gigabit smart switches TL-SG1024DE incorporates the latest energy-efficient technologies that can greatly expand your network capacity with much less energy. It automatically adjusts power consumption based on link status and cable length to reduce your network's carbon footprint.
Turn off ports when idle
When a computer or network device is turned off, the corresponding ports on a traditional switch will continue to consume a significant amount of power. The TL-SG1024DE can automatically detect the connection status of each port and reduce power consumption on inactive ports.
Power budget based on cable length
Ideally, shorter cables would consume less power with less power degradation over their length; however, this is not the case for most devices, as they will consume the same amount of power over a cable regardless of whether it is 10 or 50 meters long. The TL-SG1024DE analyzes the length of the connected Ethernet cable and adjusts its power consumption accordingly, rather than maintaining the power consumption of a typical solution.

The TL-SG1024DE is easy to use and manage. Automatic MDI/MDI-X crossover on all ports eliminates the need for crossover cables or port-up ports. Auto-negotiation on all ports detects the connection speed of the network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktop computers with limited space, while also being convenient and secure for rack mounting. Dynamic LED lights provide real-time status display and basic fault diagnosis.

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50/60Hz
Dimensions (W x D x H) 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting Rack Mountable
Maximum Power Consumption 15.56W (220V/50Hz)
Max Heat Dissipation 50.06 BTU/h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mbit
Jumbo Frame 10KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
