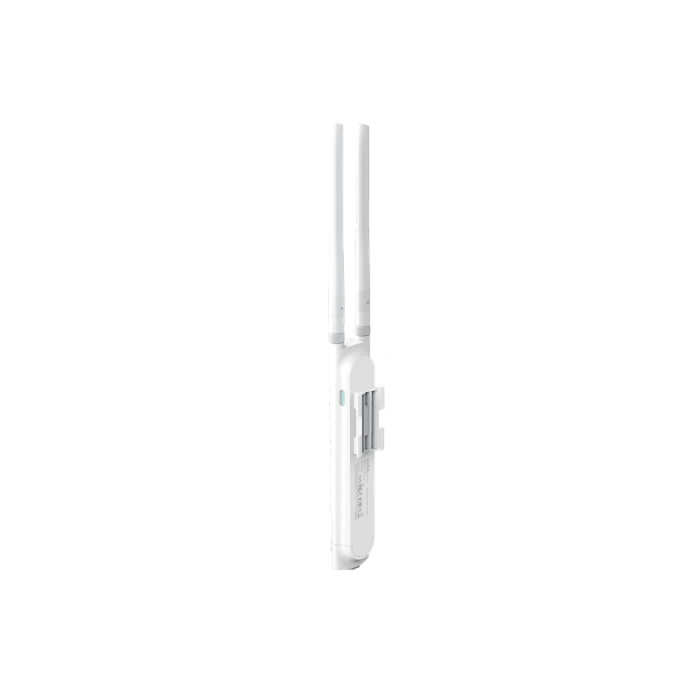

TP-LINK 300Mbps 2×2 MIMO Wireless N Outdoor Access Point (IP65)

Ideal for outdoor environments: IP65 weatherproof housing for outdoor Wi-Fi use.
Fast Wi-Fi: up to 300 Mbps Wi-Fi with 2×2 MIMO.
Long-range coverage: dedicated high-power amplifier and professional antennas.
Integrated with Omada SDN: centralized cloud management and intelligent monitoring.
Centralized management: cloud access and Omada app for ultimate convenience and easy management.
PoE support: supports both standard 802.3af and 48V passive PoE for flexible installations.
Secure guest network: Along with multiple authentication options (SMS/voucher, etc.) and numerous wireless security technologies.

HARDWARE FEATURES
1× Fast Ethernet (RJ-45) Port (Supports 48V Passive PoE/802.3af PoE)
Reset button
Power supply 48V Passive PoE (+4.5pins; -7.8pins);
802.3af PoE
Power Consumption 4.11 W
Dimensions (W x D x H) 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm)
Antenna Type 2 × 3 dBi Outdoor Omni Waterproof
Weatherproof IP65 enclosure
Mounting Pole/wall mount (kits included)
WIRELESS FEATURES
Simultaneous clients 100+
Wireless standards IEEE 802.11n/g/b
Frequency 2.4 GHz
Signal speed • 11n: up to 300 Mbps (dynamic)
• 11g: up to 54 Mbps (dynamic)
• 11b: up to 11 Mbps (dynamic)
Transmission power • CE: ≤20 dBm (EIRP)
• FCC: ≤22 dBm
Wireless features • Multiple SSIDs (up to 8 SSIDs)
• Enable/disable wireless radio
• Automatic channel assignment
• Transmit power control (Adjust transmit power in dBm)
• QoS (WMM)
• Load balancing
• Speed limit
• Reboot schedule
• Wireless schedule
• Wireless statistics based on SSID/AP/client
Wireless security • Captive portal authentication
• Access control
• Wireless MAC address filtering
• Wireless isolation between clients
• SSID mapping to VLAN
• Rogue AP detection
• 802.1X support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Requires the use of OC300, OC200, or Omada software controller.
Email alerts Yes
LED ON/OFF Control Yes
MAC Access Control Management Yes
SNMP v1, v2c
System logging Local/remote system log Local/remote system log
SSH Yes
Web Management HTTP/HTTPS
L3 Management Yes
Multi-site management Yes
VLAN management Yes
OTHER
Certification CE, FCC, RoHS
Package contents • 300 Mbps wireless outdoor access point N, EAP113-outdoor
• Mounting kits
• Waterproof rubber insert
• Waterproof antennas
• Installation instructions
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating temperature: -30–65 ℃ (-22–149 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH without condensation
