TP-LINK 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Five 10/100/1000Mbps RJ45 ports
Equipped with four 802.3af/at PoE+ ports with up to 30 W per port, data and power can be transmitted with a single cable
Supports PoE power up to 65 W for all PoE ports
Enables network monitoring, traffic prioritization, VLAN functions, and automatic PoE recovery
Easy network setup with plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design reduces power consumption and eliminates operating noise

HARDWARE FEATURES
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000Mbps RJ45 ports
AUTO-NEGOTIATION/AUTO MDI/MDIX
Network media 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan

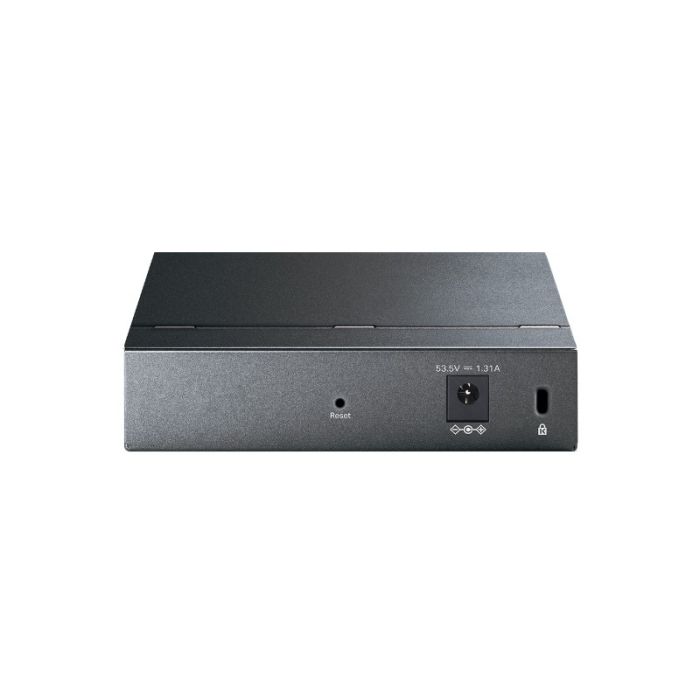

Power supply External power supply (output: 53.5 VDC/1.31 A)
PoE port (RJ45) Standard: compliant with 802.3 af/at
PoE ports: ports 1-4
PoE power budget: 65 W
Dimensions (W x D x H) 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Maximum power consumption 4.52 W (220 V/50 Hz with no PD connected)
75.16 W (220 V/50 Hz with 65 W PD connected)
Maximum heat dissipation 15.41 BTU/h (without PD connected)
256.30 BTU/h (with 65 W PD connected)
DESIGN
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
MAC address table 2 K
Packet buffer 1 Mb
Jumbo frame 16 KB
SOFTWARE FEATURES
Quality of service support Port-based/802.1p/DSCP priority
Supports 4 priority queues
Rate limiting
Storm control
L2 includes IGMP Snooping V1/V2/V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop Prevention
Automatic PoE recovery
Extended mode
VLAN Supports up to 32 VLANs simultaneously (from 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web GUI
Easy Smart Configuration Utility
Store-and-Forward Transfer Method
OTHER
Certification FCC, CE, RoHS
Package Contents TL-SG105PE
Charger
Installation instructions
Rubber feet
System Requirements Microsoft® Windows® for running the utility
Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90%RH non-condensing
Storage humidity: 5%~95%RH without condensation
