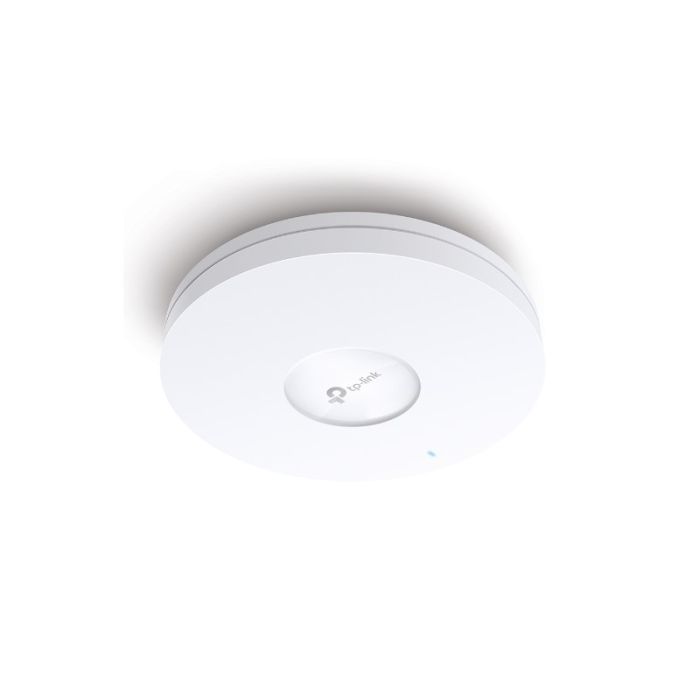

TP-LINK 5400Mbps Wireless AX WiFi 6 Ceiling Access Point

Super-fast WiFi 6 speeds: 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz simultaneously, for a total of 5378 Mbps WiFi speed.
Highly efficient WiFi 6: More connected devices can enjoy higher speeds.
Centralized cloud management: Omada SDN integration manages the entire network locally or from the cloud via a web user interface or the Omada app.
160 MHz channel: Double the data at peak transfer times in a single stream with HE160.‡
Seamless roaming: Video streams and voice calls are not affected when users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
PoE+ power supply: Supports 802.3at PoE+ and DC power supply (adapter included) for flexible installations.

HARDWARE FEATURES
Interface
1× 2.5 Gigabit Ethernet (RJ-45) port (supports IEEE802.3at PoE)
Reset button
Power • 802.3at PoE
• 12 V / 1.5 A DC (power supply included)
Power consumption
• EU: 18.1 W
• US: 19.8 W
Dimensions (W x D x H) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna type Internal Omni
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 4 × 5 dBi
Mounting Ceiling/wall mount (kits included)
WIRELESS FEATURES
Wireless client capacity 250+**
Wireless standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal speed • 5 GHz: up to 4804 Mbps
• 2.4 GHz: up to 574 Mbps
Wireless features • 1024-QAM
• 4× longer OFDM symbol
• OFDMA
• Multiple SSIDs (up to 16 SSIDs, 8 per band)
• Enable/disable wireless radio
• Automatic channel assignment
• Transmit power control (adjust transmit power in dBm)
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz bandwidth)‡
• Seamless roaming §
• Omada Mesh
• Band steering
• Load balancing
• Fair play
• Beamforming
• Speed limit
• Restart schedule
• Wireless schedule
• Wireless statistics based on SSID/AP/client
Wireless security • Captive portal authentication§
• Access control
• Wireless MAC address filtering
• Wireless isolation between clients
• SSID mapping to VLAN
• Rogue AP Detection
• 802.1X support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power • CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, band 1 and band 2, EIRP)
<30 dBm (5 GHz, band 3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT

Omada app Yes
Centralized management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email alerts Yes
LED ON/OFF Control Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
System Logging Local/Remote System Log Local/Remote System Log
SSH Yes
Web Management HTTP/HTTPS
L3 Management Yes
Multi-site management Yes
VLAN management Yes
Touchless enablement Yes. Requires the use of Omada cloud controller.
OTHER
Certification CE, FCC, RoHS
Package contents • EAP670
• Charger
• Ceiling/wall mounting kits
• Installation instructions
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH without condensation
• Storage humidity: 5–90% RH without condensation
