TP-LINK Archer AX12 AX1500 Wi-Fi 6 Router

Wi-Fi 6 technology: Archer AX12 is equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-generation speeds of 1.5 Gbps: The Archer AX12 dual-band router achieves even higher speeds of up to 1.5 Gbps (1201 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band)15
Connect more devices: Wi-Fi 6 technology delivers more data to more devices using revolutionary OFDMA and MU-MIMO technology, while reducing latency.
More reliable coverage: Get the strongest and most reliable WiFi coverage with Archer AX12, as it directs signal strength to your devices with Beamforming technology and four antennas.
Extended battery life: Target Wake Time technology reduces the power consumption of your devices, extending their battery life.
Easy setup: Set up your router in minutes with the powerful TP-Link Tether app.
Backward compatibility: Archer AX12 supports all previous 802.11 standards and all WiFi devices.

WIRELESS
Wi-Fi 6 standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi speeds AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
2-3 bedroom houses WiFi
4× fixed high-performance antennas
Multiple antennas form an array to boost the signal, covering multiple directions and large areas
Beamforming
Focuses wireless signal power on clients to extend WiFi range
High WiFi performance
Dual band
Assign devices to different bands for optimal performance
OFDMA
Communicates with multiple clients simultaneously Wi-Fi 6
Fair play
Improves network efficiency by limiting excessive congestion
4 streams
Connect your devices with greater bandwidth
Modes
Router mode
Access point mode

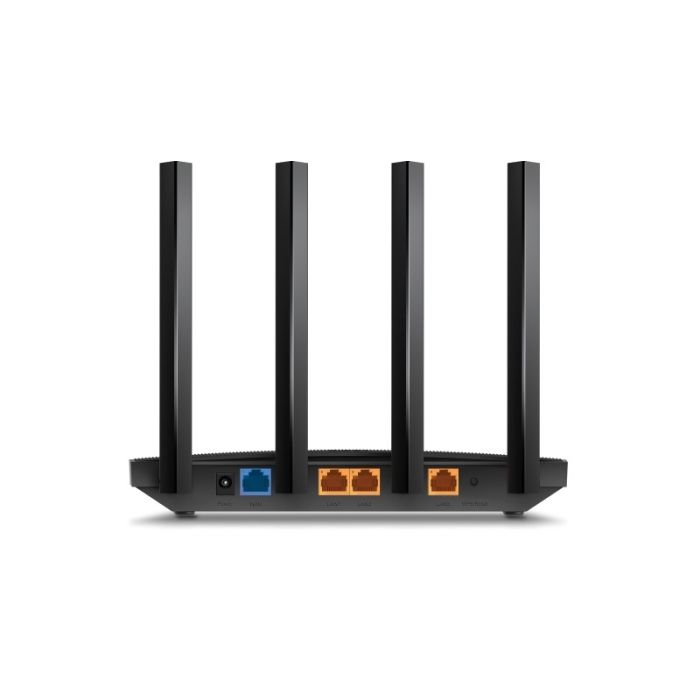

HARDWAREEthernet ports 1× Gigabit WAN port
3× Gigabit LAN ports
Buttons WPS/Reset button
Power supply 12 V ⎓ 1 A

SECURITY
WiFi encryption WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryption
Network security SPI Firewall
Access control
IP & MAC binding
Application Layer Gateway
Guest network 1 × 5 GHz guest network
1 × 2.4 GHz guest network
VPN server OpenVPN
PPTP

SOFTWARE
Protocols IPv4
IPv6
Parental control URL filtering
Time controls
WAN types Dynamic IP
Static IP
PPPoE/PPTP (dual access)/L2TP (dual access)
Device-based QoS
Automatic firmware upgrade Cloud services
OTA firmware upgrade
TP-Link ID
DDNS
NAT forwarding Port forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP proxy
IGMP snooping
Bridge
VLAN tagging
DHCP address reservation
DHCP client list
Server
TP-Link DDNS
NI-IP
DynDNS
Tether management application
Website
Check the web emulator>

OTHER
System requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX, or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or other
Browser that supports Java
Cable or DSL modem
Subscription to an Internet service provider (for Internet access)
FCC, CE, RoHS certifications
Operating temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~60℃ (-40℉ ~140℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing

TEST DATA
WiFi transmission power CE:
<20 dBm (2.4 GHz)
<23dBm (5.15 GHz ~ 5.25 GHz)
FCC:
<30dBm (2.4 GHz and 5.15 GHz~5.825 GHz)
WiFi reception sensitivity 5 GHz:
11a 6Mbps: -95dBm, 11a 54Mbps: -79dBm
11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS8: -66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0: -91dBm, 11ac VHT80_MCS9: -60dBm
11ax HE20_MCS0: -95dBm, 11ax HE20_MCS11: -66dBm
11ax HE40_MCS0: -92dBm, 11ax HE40_MCS11: -65dBm
11ax HE80_MCS0: -89dBm, 11ax HE80_MCS11: -62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75

PHYSICAL
Dimensions (W × D × H) 8.5 × 4.6 × 1.3 in
(215 × 117 × 32 mm)
Package contents Archer AX12 wireless router
Charger
RJ45 Ethernet cable
Quick installation guide
