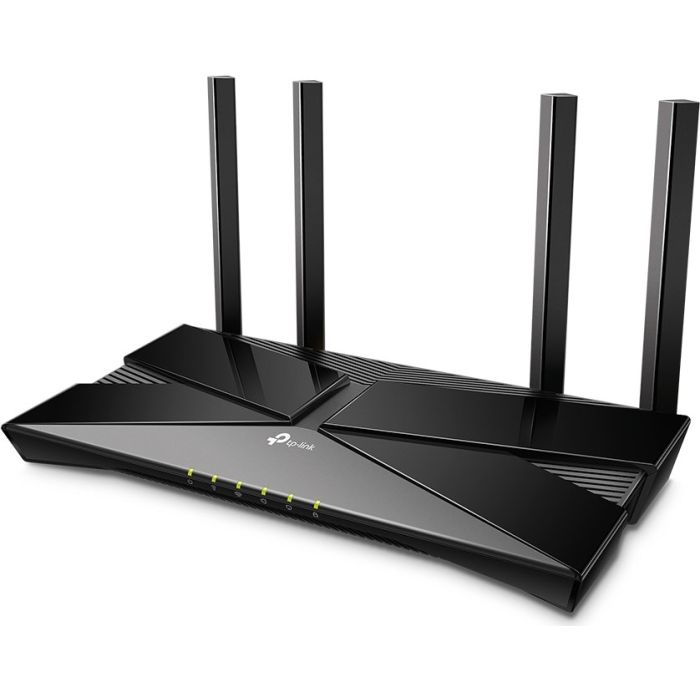

TP-LINK Archer AX53 AX3000 Dual Band Gigabit Wi-Fi 6 Router

Next-generation Gigabit Wi-Fi 6 speeds—2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band—deliver smoother streaming and faster downloads.
Connect more devices—OFDMA technology increases capacity by 4 times to enable simultaneous transfers to multiple devices.
Ultra-low latency—enables more responsive gaming and video chatting.
Extended Wi-Fi coverage—four high-gain external antennas and Beamforming technology combine to deliver powerful and reliable Wi-Fi throughout your home.
TP-Link HomeShield—Enhanced security protects against the latest cyber threats.
Improved battery life—Target Wake Time helps your devices communicate more while consuming less power.
Compatible with Alexa—Control your router with voice commands and make your life smarter and easier with Amazon Alexa.

WIRELESS
Wi-Fi 6 standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi AX3000 speeds
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
3-bedroom homes WiFi Range
4× fixed high-performance antennas
Multiple antennas form an array to boost the signal, covering multiple directions and large areas

Beamforming
Focuses wireless signal power on clients to extend WiFi range

High-power FEM
Improves transmission power for greater signal coverage
High-performance WiFi
Dual band
Assign devices to different bands for optimal performance

OFDMA
Communicates with multiple Wi-Fi 6 clients simultaneously

Fair play
Improves network efficiency by limiting excessive congestion

DFS
Access to additional bandwidth to reduce congestion

4 streams
Connect your devices with greater bandwidth
Modes of operation Router mode
Access point mode
HARDWARE
Processor Dual-Core CPU
Ethernet ports 1× Gigabit WAN port
4× Gigabit LAN ports
Buttons Wi-Fi/WPS button
Power button
Power LED button
Reset button
Power supply 12 V ⎓ 2 A
SECURITY
WiFi encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise
Network security SPI Firewall
Access control
IP & MAC binding
Application Layer Gateway

HomeShield security
Real-time IoT protection
Malicious Website Blocker
Intrusion Prevention System
DDoS attack prevention
Home network scanner
Guest network 1 × 5 GHz guest network
1 × 2.4 GHz guest network
OpenVPN VPN server
PPTP VPN
SOFTWARE
IPv4 protocols
IPv6
HomeShield service kits
Learn more>
OneMesh™ OneMesh™ supported
Without replacing your existing devices or purchasing a completely new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

HomeShield Parental Controls
Custom Profiles
Professional content filter library
Family Time
Bedtime
Off Time
Time rewards
Family online time scale
Stop the Internet
Weekly and monthly reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service (QoS) based on device
Automatic firmware upgrade Cloud services
OTA firmware upgrade
TP-Link ID
DDNS
NAT forwarding Port forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP proxy
IGMP snooping
Bridge
VLAN tagging
DHCP address reservation
DHCP client list
Server
TP-Link DDNS
NI-IP
DynDNS
Tether management application
Website
Check out the web emulator>
PHYSICAL
(260.2 × 135 × 41.6 mm)
Package contents Archer AX53 wireless router
Charger
RJ45 Ethernet cable
Quick installation guide
OTHER
System requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other browser that supports JavaScript

Cable or DSL modem (if necessary)

Subscription to an Internet service provider (for Internet access)
Certifications FCC, CE, RoHS
Operating temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~70℃ (-40℉ ~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
TEST DATA
WiFi transmission power CE:
<20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz)
FCC:
<30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz)
WiFi reception sensitivity 2.4 GHz:
11ac VHT20_MCS0: -96dBm
11ac VHT20_MCS8:-74dB
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS9: -70dB
11ax HE20_MCS0: -96dBm
11ax HE20_MCS11: -66dBm
11ax HE40_MCS0:-93dBm
11ax HE40_MCS11: -63dBm
5 GHz:
11ac VHT20_MCS0:-97dBm
11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0: -94dBm
11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS9: -67dBm
11ac VHT160_MCS0:-88dBm
11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-97dBm
11ax HE20_MCS11: -66dBm
11ax HE40_MCS0:-94dBm
11ax HE40_MCS11:-63dBm
11ax HE80_MCS0:-91dBm
11ax HE80_MCS11: -61dBm
11ax HE160_MCS0: -87dBm
11ax HE160_MCS11: -58dBm
