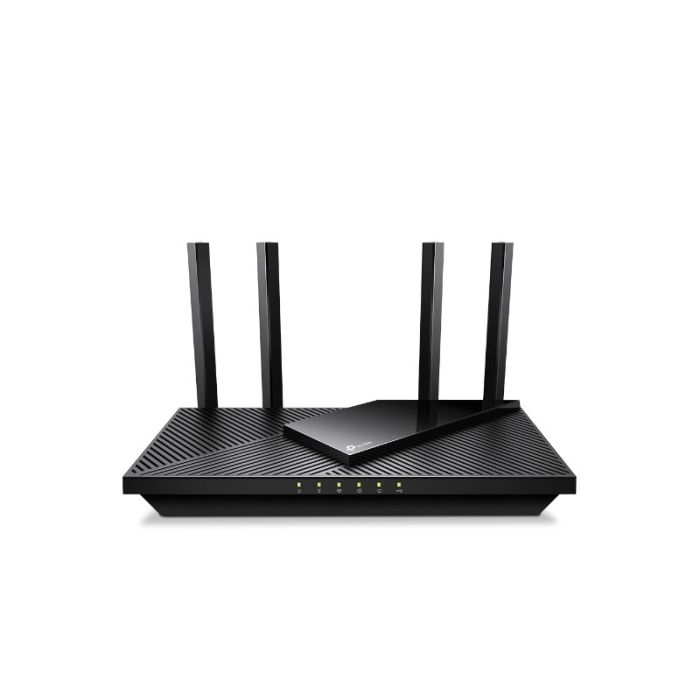

TP-LINK Archer AX55 PRO AX3000 Dual Band Gigabit Wi-Fi 6 Router, 2.5G Port

Faster dual-band WiFi AX3000: up to 3.0 Gbps (2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
2.5G Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port provide maximum flexibility and increased throughput.
Maximum coverage: Four high-gain antennas equipped with Beamforming provide wide coverage.
Connect more devices: OFDMA technology increases capacity by 4 times to enable simultaneous transmission to multiple devices.
Supported VPN client: Allow devices on your home network to access remote VPN servers without having to install VPN software on each device.
TP-Link HomeShield: Enhanced security protects against the latest cyber threats.
TP-Link OneMesh Supported: Flexibly create whole-home Wi-Fi with the Archer AX55 Pro by adding a OneMesh-supported range extender.
Alexa Compatible: Control your router with voice commands and make your life smarter and easier with Amazon Alexa.

WIRELESS
Wi-Fi 6 Standards
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi AX3000 speeds
• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
3-bedroom houses WiFi Range
• 4× fixed high-performance antennas
Multiple antennas form an array to boost the signal, covering multiple directions and large areas
• Beamforming
Focuses wireless signal power on clients to extend WiFi range
• High-Power FEM
Improves transmission power for greater signal coverage
High-performance WiFi
• Dual-band
Assign devices to different bands for optimal performance
• OFDMA
Communicates with multiple Wi-Fi 6 clients simultaneously
• Fair play
Improve network efficiency by limiting excessive congestion
• DFS
Accesses additional bandwidth to reduce congestion
• 4 streams
Connect your devices with greater bandwidth
Working modes • Router mode
• Access point mode

SECURITY
Network security SPI Firewall
Access control
IP & MAC binding
Application Layer Gateway
HomeShield security
Real-time IoT protection
Malicious Website Blocker
Intrusion Prevention System
DDoS attack prevention
Home network scanner
Guest network
• 1 × 5 GHz guest network
• 1 × 2.4 GHz guest network
VPN server • OpenVPN
• PPTP
• L2TP
VPN client • OpenVPN
• PPTP
• L2TP
WiFi encryption • WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x)

HARDWARE
Ethernet ports
• 1 × 2.5 Gigabit WAN/LAN port
• 1 × Gigabit WAN/LAN port
• 3 × Gigabit LAN ports
USB support 1 × USB 3.0 port
Supported partition formats:
NTFS, exFAT, HFS+, FAT32
Supported features:
Apple Time Machine
FTP server
Media server
Samba server
Buttons Wi-Fi/WPS button
Power button
Reset button
Power supply • 12 V/2 A (US version)
• 12 V/ 1.5 A (EU version)

SOFTWARE
Protocols • IPv4
• IPv6
HomeShield service kits
Learn more>
OneMesh™ OneMesh™ supported
Without replacing your existing devices or purchasing a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn more>
All OneMesh products>
The EasyMesh Mesh network creates a smooth, fast, and stable hosting experience. Archer AX55 Pro can flexibly build an EasyMesh network with EasyMesh-compatible devices, eliminating Wi-Fi dead zones, expanding your network, and filling your entire home with fast Wi-Fi. Seamless Wi-Fi connections with a single network name, one-click setup, and flexible scalability.
Learn more>
HomeShield Parental Controls
• Custom profiles
• Professional content filter library
• Family time
• Bedtime
• Downtime
• Time rewards
• Family online time scale
• Stop the internet
• Weekly and monthly reports
WAN types • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service (QoS) based on device
Cloud service • Automatic firmware upgrade
• OTA firmware upgrade
• TP-Link ID
• DDNS
NAT forwarding • Port forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP proxy
• IGMP snooping
• Bridge
• VLAN tagging
DHCP • Address reservation
• DHCP client list
• Server
DDNS • TP-Link
• NO IP
• DynDNS
Management • Tether app
• Website
Check out the web emulator

OTHER
System requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser that supports JavaScript
Cable or DSL modem (if necessary)
Subscription to an Internet service provider (for Internet access)
FCC, CE, RoHS certifications
Operating ambient temperature: 0℃~40℃ (32℉ ~104℉)
Operating humidity: 10%~90% non-condensing

TEST DATA
WiFi transmission power • CE:
<20 dBm (2.4 GHz)
<23dBm (5.15GHz~5.25GHz & 5.25GHz~5.35GHz)
<30dBm (5.47GHz~5.725GHz)
• FCC:
<30 dBm (2.4 GHz)
<30dBm (5.15GHz~5.25GHz&5.725GHz~5.850GHz)
<24dBm (5.25GHz~5.35GHz & 5.47GHz~5.725GHz)
WiFi reception sensitivity • 2.4 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
• 5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm

PHYSICAL
Dimensions (W × D × H) 10.2 × 5.3 × 1.5 in
(261.1 × 134.5 × 41.0 mm)
Package contents • Archer AX55 Pro Wi-Fi router
• Charger
• RJ45 Ethernet cable
• Quick installation guide
