TP-LINK Archer AX95 AX7800 Tri-Band Gigabit Wi-Fi 6 Router

Faster tri-band AX7800 WiFi 6: up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
Ultra connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports and two USB ports provide maximum flexibility and increased throughput.
Maximum coverage: Eight high-gain antennas equipped with Beamforming provide wide coverage.
More devices with less lag: OFDMA and MU-MIMO technologies deliver data to multiple devices simultaneously.
Powerful processor: A 1.7 GHz quad-core processor ensures high transfer speeds and smooth operation of multiple devices and applications.
TP-Link HomeShield: Enhanced security protects against the latest cyber threats.
Enhanced security: WPA3 strengthens Wi-Fi encryption and guest network for improved security.

WIRELESS
Wi-Fi 6 Standards
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi speeds •AX7800
• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
4-bedroom houses WiFi Range
8× fixed high-performance antennas
Multiple antennas form an array to boost the signal, covering multiple directions and large areas

Beamforming
Focuses wireless signal power on clients to extend WiFi range

High-power FEM
Improves transmission power for greater signal coverage

4T4R
Multiple streams in the same band strengthen transmission error tolerance
WiFi performance very high
Tri-Band
Assign devices to different bands for optimal performance

4×4 MU-MIMO
Communicates with multiple MU-MIMO clients simultaneously

OFDMA
Communicate with multiple Wi-Fi 6 clients simultaneously

Fair play
Improves network efficiency by limiting excessive congestion

DFS
Access to additional bandwidth to reduce congestion

8 streams
Connect your devices with greater bandwidth
Modes • Router mode
• Access point mode
HARDWARE
Processor 1.7 GHz quad-core processor
Ethernet ports • 1× 2.5 Gbps WAN/LAN port
• 1× 1 Gbps WAN/LAN port
• 3 × 1 Gbps LAN ports
USB support • 1× USB 3.0 port
• 1× USB 2.0 port

• Supported partition formats:
NTFS, exFAT, HFS+, FAT32

• Supported functions:
FTP server
Media server
Samba server
Buttons • LED power button
• WPS button
• Wi-Fi on/off button
• Power button
• Reset button
Power supply 12 V ⎓ 3.3 A
SECURITY
WiFi encryption • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
Network security • SPI firewall
• Access control
• IP & MAC binding
• Application Layer Gateway

• HomeShield security
Real-time IoT protection
Malicious website blocker
Intrusion Prevention System
DDoS attack prevention
Home network scanner
Guest network • 1× 5 GHz-1 guest network
• 1 × 5 GHz-2 guest network
• 1 × 2.4 GHz guest network
VPN server • OpenVPN
• PPTP
• L2TP
VPN client • OpenVPN
• PPTP
• L2TP
SOFTWARE
Protocols • IPv4
• IPv6
HomeShield service kits
Learn more>
OneMesh™ OneMesh™ supported
Without replacing your existing devices or purchasing a completely new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn more>
All OneMesh products>
HomeShield Parental Controls
Custom Profiles
Professional content filter library
Family Time
Bedtime
Off Time
Time rewards
Family online time scale
Stop the Internet
Weekly and monthly reports
WAN Types • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service (QoS) based on device
Automatic firmware upgrade Cloud services
TP-Link ID
DDNS
NAT forwarding • Port forwarding
• Port Triggering
• DMZ
• UPnP
IPTV • IGMP proxy
• IGMP snooping
• Bridge
• VLAN tagging
DHCP • Address reservation
• DHCP client list
• Server
DDNS • TP-Link
• NO IP
• DynDNS
Management • Tether app
• Website
OTHER
System requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser that supports JavaScript

Cable or DSL modem (if necessary)

Subscription to an Internet service provider (for Internet access)
Certifications FCC, CE, RoHS
Environment • Operating temperature: 0℃~40℃ (32℉ ~104℉)
• Storage temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating humidity: 10%~90% non-condensing
• Storage humidity: 5%~90% non-condensing
TEST DATA
WiFi transmission power • FCC:
≤30dBm (5.17GHz~5.25GHz);
≤23dBm (5.25GHz~5.35GHz);
≤23dBm (5.49GHz~5.725GHz);
≤28dBm (5.725GHz~5.825GHz);
≤28dBm (2.4GHz)

• CE:
≤23dBm EIRP (5.17GHz~5.35GHz);
≤30dBm EIRP (5.47GHz~5.725GHz);
≤20dBm EIRP (2.4GHz)
WiFi reception sensitivity • 2.4 GHz:
11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm

• 5 GHz:
11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm,
11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm,
11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm,
11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm,
11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm,
11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm,
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm
PHYSICAL
Dimensions (W × D × H) 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package contents

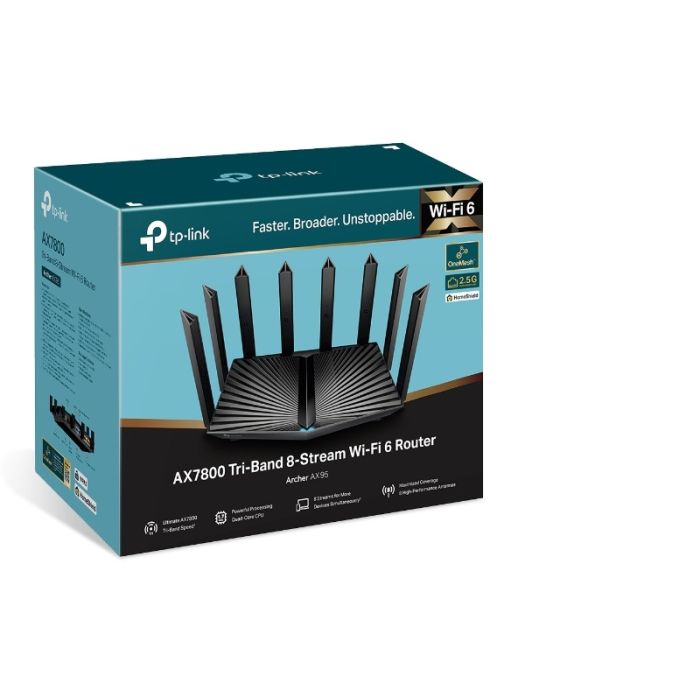

• Archer AX95 Wi-Fi router
• Charger
• RJ45 Ethernet cable
• Quick installation guide
