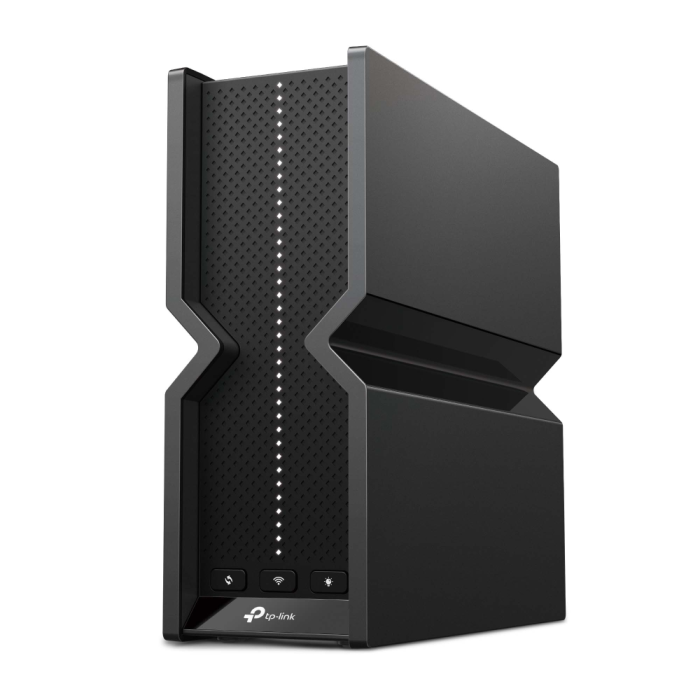

TP-LINK Archer BE550 Wi-Fi 7 BE9300 tri-band 2.5G router

The Archer BE550 V1 is a tri-band Wi-Fi 7 router designed for high speeds, wide coverage, and stable performance in larger homes. The device supports speeds of up to 5760 Mbps in the 6 GHz band, 2880 Mbps in the 5 GHz band, and 574 Mbps in the 2.4 GHz band, providing enough bandwidth for the demands of a modern home network. Six optimally positioned antennas, Beamforming signal direction, and a high-performance FEM transmitter contribute to extended coverage that is sufficient even for four-bedroom homes.
The router supports advanced Wi-Fi 7 technologies such as Multi-Link Operation, 320 MHz channels, 4K-QAM, OFDMA, MU-MIMO, and additional DFS channels to reduce congestion. A larger number of wireless streams allows for efficient distribution of devices across different frequency bands. The device operates in router or access point mode and is compatible with EasyMesh for network expansion with additional units.
Five 2.5 Gbps Ethernet ports (1 WAN + 4 LAN) are available for connecting high-speed wired devices, while USB 3.0 provides FTP, Samba, and media server functions. The router includes a rich set of security features such as SPI firewall, Access Control, IP & MAC Binding, and HomeShield security with IoT device protection, attack prevention, and network scanning. For remote access and secure connectivity, it supports VPN server and client with OpenVPN, L2TP, PPTP, and WireGuard protocols.
Management is done via the Tether app or web interface, with additional features such as device-based QoS, port forwarding, parental controls, DDNS, IPTV settings, and automatic device updates. Due to its performance and tri-band operation, the Archer BE550 is suitable for demanding home users who need high speeds and a stable network in larger living spaces.

WIRELESS FEATURES
Wi-Fi speeds (BE9300)
6 GHz: 5760 Mbps (802.11be)
5 GHz: 2880 Mbps (802.11be)
2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi coverage
Suitable for 4-bedroom homes
6× optimally positioned antennas
Beamforming – directional signal amplification
High-Power FEM – improved transmitter for greater range
Wi-Fi capacity
High capacity
Tri-band system
2×2 MU-MIMO
OFDMA
Airtime Fairness
DFS – access to additional 5 GHz band
6 streams
Operating modes
Router Mode
Access Point Mode
Advanced features
Multi-Link Operation (MLO)
320 MHz Channel
4K-QAM
Multi-RUs
EasyMesh compatible
Works with Alexa and Google Assistant
IoT network

SECURITY
Network security
SPI firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-time protection for IoT devices
Blocking malicious websites
Intrusion Prevention System (IPS)
DDoS protection
Network Scanner
Guest networks
1 × 6 GHz Guest Network
1 × 5 GHz Guest Network
1 × 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
L2TP
WireGuard
VPN client
OpenVPN
PPTP
L2TP
WireGuard
Wi-Fi encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1X)

HARDWARE FEATURES
Ethernet ports
1 × 2.5 Gbps WAN
4 × 2.5 Gbps LAN
USB support
1 × USB 3.0
Supported partition formats:
NTFS, exFAT, HFS+, FAT32
Supported functions:
FTP Server
Media Server
Samba Server
Buttons
Power On/Off
Wi-Fi On/Off
LED button
WPS button
Reset
Power
12 V ⎓ 3.3 A

SOFTWARE
Protocols
IPv4
IPv6
HomeShield Parental Control:
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
QoS per device
Cloud features
Automatic firmware update (OTA)
TP-Link ID
DDNS
NAT forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
VLAN tag
DHCP
Address Reservation
DHCP Client List
DHCP server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Web UI

OTHER
Default enabled network services
Web Server (HTTP/HTTPS) – port 80/443 (TCP)
DNS – port 53 (TCP & UDP)
DHCP Server – port 67 (UDP)
Management via application:
• Port 20001 (TCP)
• Port 30001 (TCP)
• Port 20002 (UDP)
System requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or another browser with JavaScript support
Cable/DSL modem (if needed)
Subscription to an Internet service provider
Certificates: CE, FCC, RoHS
Environment
Operating temperature: 0 °C – 40 °C
Operating humidity: 10% – 90% (non-condensing)

PHYSICAL
Dimensions: 76 × 231.7 × 203 mm
Package contents: Wi-Fi 7 Router Archer BE550, Power adapter, RJ45 Ethernet cable, Quick installation guide
