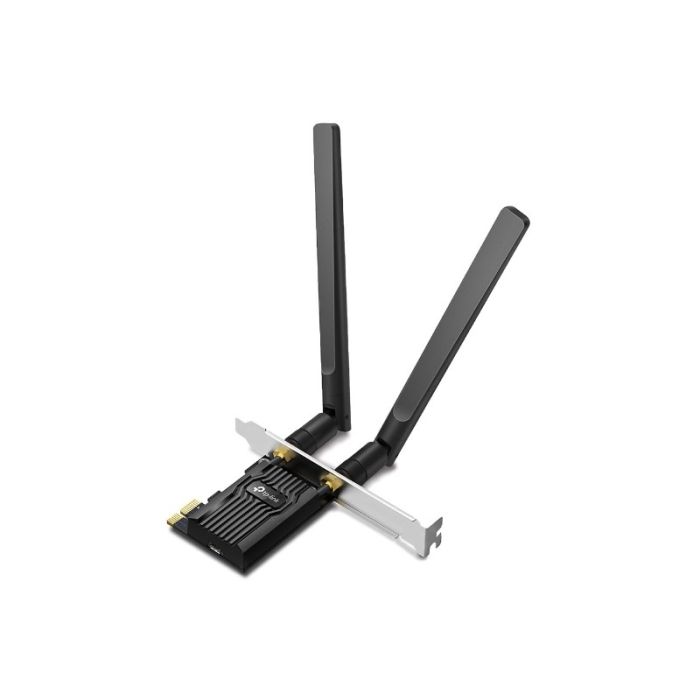

TP-LINK AX1800 Wi-Fi 6 Bluetooth 5.2 PCI-E Adapter

Unmatched Wi-Fi 6 speed—breaks the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Wider signal coverage—Connect to your Wi-Fi network in more areas of your home with two high-gain external antennas that provide greater coverage and stability
Bluetooth 5.2 – The latest Bluetooth technology delivers 2× faster speeds and 4× wider coverage than BT 4.2
Enhanced security – The latest WPA3 security enhancements provide improved protection for personal passwords
Backward compatibility – Full support for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES
Dimensions 4.76 × 3.09 × 0.82 in
(120.8 × 78.5 × 20.9 mm)
Antenna type Two high-gain dual-band antennas
Chipset Realtek Wi-Fi 6 Chipset

WIRELESS FEATURES
Wireless standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN signal speed 5 GHz
11ax: up to 1201 Mbps (dynamic)
11ac: up to 867 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)
2.4 GHz
11ax: up to 574 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
WLAN 5 GHz reception sensitivity:
11ax HE80: -57.0 dBm
11ax HE40: -60.0 dBm
11ax HE20: -63.0 dBm
11ac VHT80: -59.5 dBm
11ac VHT40: -62.5 dBm
11ac VHT20: -67.5 dBm
11n HT40: -69.5 dBm
11n HT20: -72.5 dBm
11a 54 Mbps: -74.0 dBm
11a 6Mbps: -94.5dBm
2.4 GHz:
11ax HE40: -60.0 dBm
11ax HE20: -63.0 dBm
11n HT40: -69.5 dBm
11n HT20: -72.5 dBm
11g 54Mbps: -74.0dBm
11b 11 Mbps: -88.0 dBm
WLAN 5 GHz transmit power: 27dBm(FCC)/23dBm(CE) (EIRP)
2.4 GHz: 25 dBm (FCC)/20 dBm (CE) (EIRP)
WLAN modes Infrastructure mode
Wireless security support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHER
Certification CE, FCC, RoHS
Archer TX20E package contents
Two high-gain dual-band antennas
Low-profile bracket
Bluetooth headset cable
Quick installation guide
CD with resources
System requirements Windows 11/10 (64-bit) only.
Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
