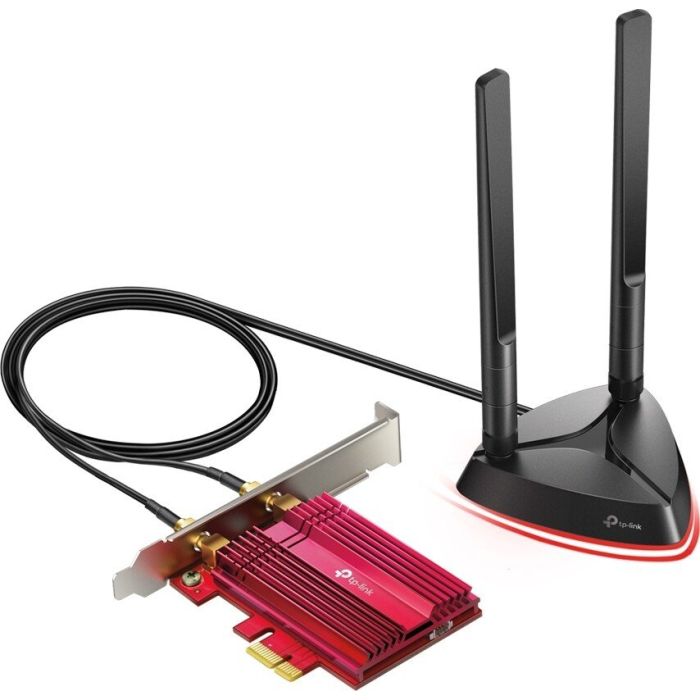

TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unmatched Wi-Fi 6 speed—breaks the gigabit barrier with speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†§
Smoother experience—75% lower latency for ultra-responsive real-time gaming*
Reliable connections—the Intel® Wi-Fi 6 chipset delivers faster, clearer Wi-Fi to fully unleash the potential of your Wi-Fi 6 router‡
Wider signal coverage – Two omnidirectional antennas with magnetized bases are designed for optimal signal reception
Bluetooth 5.2 – The latest Bluetooth technology delivers faster speeds and wider coverage than older versions***
Enhanced security - The latest WPA3 security enhancements provide improved protection for personal passwords**
Fine craftsmanship – A specialized heat sink and gold-plated coating are designed to improve stability and reliability even in hot environments
Backward compatibility – Full support for 802.11ac/a/b/g/n standards

HARDWARE FEATURES
PCI Express x1/x4/x8/x16 interface
Dimensions 3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)
Antenna type Two high-gain dual-band antennas
Magnetized antenna base
Intel Wi-Fi 6 chipset
BLUETOOTH FEATURES
Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 standards and protocols
Interface F_USB 2.0
WIRELESS FEATURES
Wireless standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0
WLAN signal speed 5 GHz
11ax: up to 2402 Mbps (dynamic)
11ac: up to 1733 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)

2.4 GHz
11ax: up to 574 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
WLAN 5 GHz reception sensitivity:
11ax HT160: -56.25 dBm
11ax HT80: -59dBm
11ax HT40: -62.25 dBm
11ax HT20: -65dBm

11ac HT160: -62dBm
11ac HT80: -65.5 dBm
11ac HT40: -69.75 dBm
11ac HT20: -73.75 dBm
11n HT40: -74.5 dBm
11n HT20: -77.5 dBm
11a 54 Mbps: -77.75 dBm
11a 6Mbps: -94.5dBm

2.4 GHz:
11ax HT40: -60.75 dBm
11ax HT20: -63.75 dBm
11n HT40: -73 dBm
11n HT20: -76.25 dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN transmission power 5 GHz: 28dBm(FCC)/23dBm(CE) (EIRP),
2.4 GHz: 24 dBm (FCC)/20 dBm (CE) (EIRP)
WLAN modes Infrastructure mode
Wireless security support 64/128 bit WEP, WPA/WAP2/WPA3,
WPA-PSK/WPA2-PSK, 802.1x
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM,
256-QAM, 1024QAM
OTHER
Certification CE, FCC, RoHS
Archer TX3000E package contents
Magnetized antenna base with 1 m RF cable
Two high-gain antennas
Low-profile bracket
Bluetooth headset cable
Quick installation guide
CD with resources
System requirements Windows 11/10 (64-bit) only.
Operating ambient temperature: 0℃~40℃ (32℉ ~104℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
