TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Unmatched Wi-Fi 6 speed - breaks the gigabit barrier with speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Smoother experience - 75% lower latency ensures ultra-responsive gaming, uninterrupted video chat, and seamless live streaming
Reliable connections - Intel® Wi-Fi 6 chipset delivers faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
Wider signal coverage – Connect to your Wi-Fi network in more areas of your home with two high-gain external antennas that provide greater coverage and stability

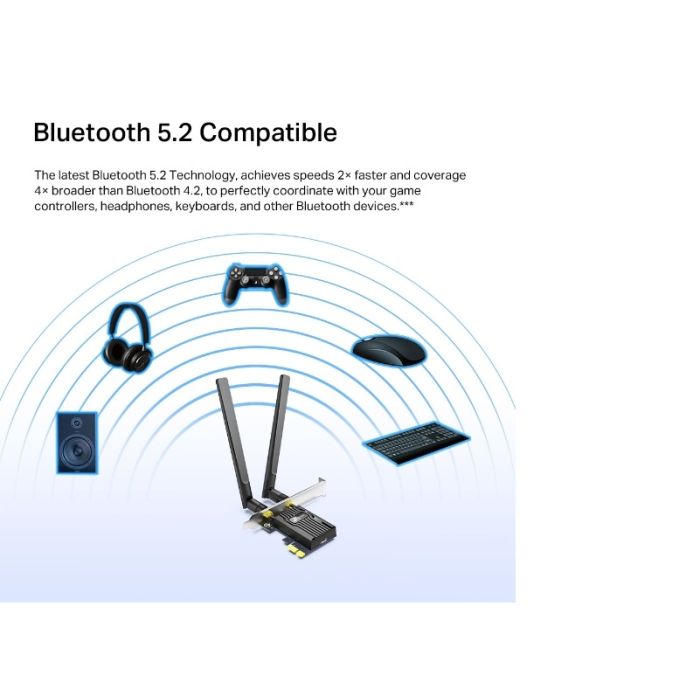

Bluetooth 5.2 – The latest Bluetooth technology achieves faster speeds and wider coverage than the previous version
Improved security – The latest WPA3 security enhancements provide improved protection and a secure personal password
Fine craftsmanship – Specialized gold plating is designed to improve stability and reliability even in hot environments
Backward compatibility – Full support for 802.11ac/a/b/g/n standards

HARDWARE FEATURES
Dimensions 55 x 36 x 11.5 mm
Antenna type Two high-gain dual-band antennas
Chipset Intel Wi-Fi 6 Chipset
BLUETOOTH FEATURES
Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 standards and protocols
Interface F_USB 2.0
WIRELESS FEATURES
Wireless standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2/5.0/4.2/4.0
WLAN signal speed 5 GHz
11ax: up to 2402 Mbps (dynamic)
11ac: up to 1733 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11a: up to 54 Mbps (dynamic)

2.4 GHz
11ax: up to 574 Mbps (dynamic)
11n: up to 300 Mbps (dynamic)
11g: up to 54 Mbps (dynamic)
11b: up to 11 Mbps (dynamic)
WLAN 5 GHz reception sensitivity:
11ax HT160: -56.25 dBm
11ax HT80: -59dBm
11ax HT40: -62.25 dBm
11ax HT20: -65dBm

11ac HT160: -62dBm
11ac HT80: -65.5 dBm
11ac HT40: -69.75 dBm
11ac HT20: -73.75 dBm
11n HT40: -74.5 dBm
11n HT20: -77.5 dBm
11a 54 Mbps: -77.75 dBm
11a 6Mbps: -94.5dBm

2.4 GHz:
11ax HT40: -60.75 dBm
11ax HT20: -63.75 dBm
11n HT40: -73 dBm
11n HT20: -76.25 dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm
WLAN 5 GHz transmit power: 27 dBm (FCC)/23 dBm (CE) (EIRP)
2.4 GHz: 26 dBm (FCC)/20 dBm (CE) (EIRP)
WLAN modes Infrastructure mode
Wireless security support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHER
Certification CE, FCC, RoHS
Archer TX55E package contents
Two high-gain antennas
Low-profile bracket
Standard Bluetooth connection cable
Quick installation guide
Resource CD
System requirements Windows 10 (64-bit) only.
Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
