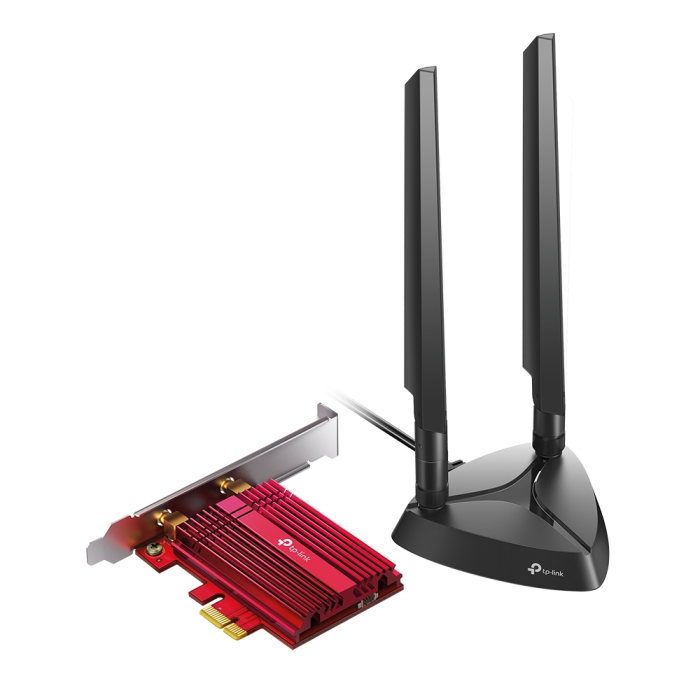

TP-LINK AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

Unbeatable tri-band speed – Total speed up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E standard – Expansion to a cleaner and wider 6 GHz band for greater bandwidth and faster transfers (6 GHz currently only supported on Windows 11)
Wider signal coverage – Two omnidirectional antennas with magnetic mounts are designed for optimal signal reception
Bluetooth 5.3 – Improved security and reliability compared to the previous generation Bluetooth 5.2
Improved security – The latest WPA3 standard provides better protection for personal passwords
Reliable design – A dedicated heat sink and gold-plated contacts improve stability and performance even at high processor temperatures
Backward compatibility – Full support for 802.11ax/ac/a/b/g/n standards

HARDWARE FEATURES
Interface: PCI Express
Dimensions: (95.2 × 120.8 × 21.5 mm)
Antenna type: Two high-gain dual-band antennas
Magnetized antenna base: yes

WIRELESS FEATURES
Wireless standards: IEEE 802.11a/b/g/n/ac/ax
6 GHz: IEEE 802.11ax
5 GHz: IEEE 802.11ax/ac/n/a
2.4 GHz: IEEE 802.11ax/n/g/b

Bluetooth: 5.3 / 5.2 / 5.0 / 4.2 / 4.0

Signal speed:
6 GHz:
11ax: up to 2402 Mbps
5 GHz:
11ax: up to 2402 Mb/s
11ac: up to 1733 Mb/s
11n: up to 300 Mbps
11a: up to 54 Mbps
2.4 GHz:
11ax: up to 574 Mbps
11n: up to 300 Mbps
11g: up to 54 Mbps
11b: up to 11 Mbps

Transmission power:
6 GHz: in accordance with local regulations
5 GHz: in accordance with local regulations
2.4 GHz: in accordance with local regulations

WLAN modes: Infrastructure mode

Wireless security support: WEP, WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK

OTHER INFORMATION
Certifications: FCC, CE, RoHS

Package contents: Archer TXE75E, Magnetized antenna base with 1 m RF cable, 2× high-gain antenna, Low-profile PCIe bracket, Bluetooth connection cable, User manual, CD with resources

System requirements: Windows 10 (64-bit), Windows 11 (6 GHz)

Operating temperature: 0°C ~ 40°C
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% without condensation
