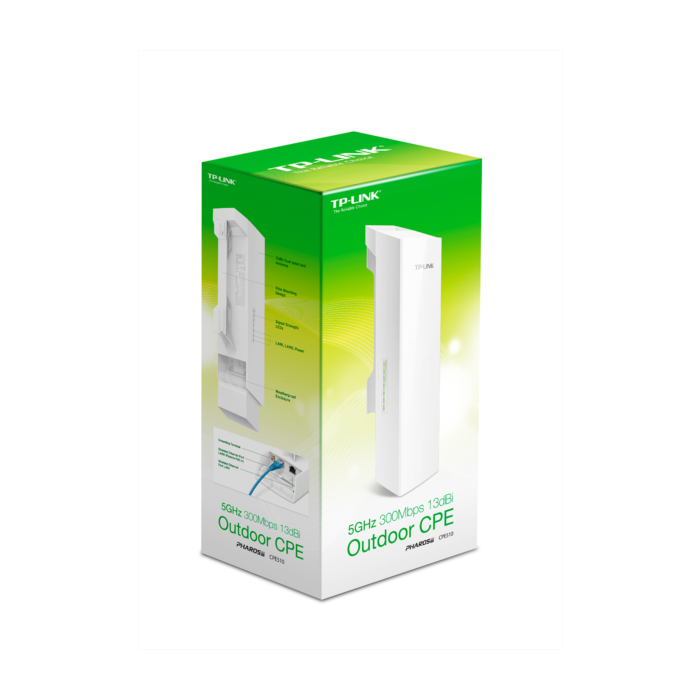

TP-LINK CPE510 5GHz 300Mbps 13dBi outdoor directional access point

The TP-LINK CPE510 is designed for cost-effective solutions for outdoor wireless network applications. With its centralized management, it is ideal for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage. Professional performance combined with a user-friendly design makes the CPE510 an ideal choice for both business and home users.

Supported standards: IEEE 802.11a/n (with Pharos MAXtream disabled)
Frequency: 5.15 - 5.85GHz
Speed: up to 300Mbps
Antenna: built-in 13dBi 2x2 dual-polarized directional antenna
Protection: 15KV ESD protection, 6000V lightning protection
Connections: 1 x 10/100Mbps protected Ethernet port (LAN0, passive PoE input)
1 x 10/100Mbps shielded Ethernet port (LAN1, passive PoE pass-through)
1 x grounding terminal
Power supply: passive power supply via Ethernet LAN0 (+4.5pins; -7.8pins); voltage range: 16-27VDC
Dimensions: 224x79x60 mm
System requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, MAC® OS, NetWare®, UNIX® or Linux.
Additional: AP / client / Repeater / AP router / AP client router (WISP) operating modes;
External stabilized housing with IPX5 waterproof certification; Passive PoE PoE adapter supports up to 60m installations with power over Ethernet cable and allows remote device reset; Offers WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data protection; choice of 5/10/20/40MHz bandwidth; offers tools: traffic monitor, Spectrum Analyzer, Speed Test, and Ping; easy antenna setup with wireless signal indicators via web interface


Web link to manufacturer: http://www.tp-link.us/products/details/?categoryid=&model=CPE510#spec
