TP-LINK CPE610 5GHz 300Mbps 23dBi outdoor directional access point

Up to 300Mbps1 at 5GHz wireless data transfer speeds
23dBi directional 2×2 MIMO antenna with high gain and dedicated metal reflector, ideal for long-range use
Excellent beamforming, improved latency, and noise cancellation

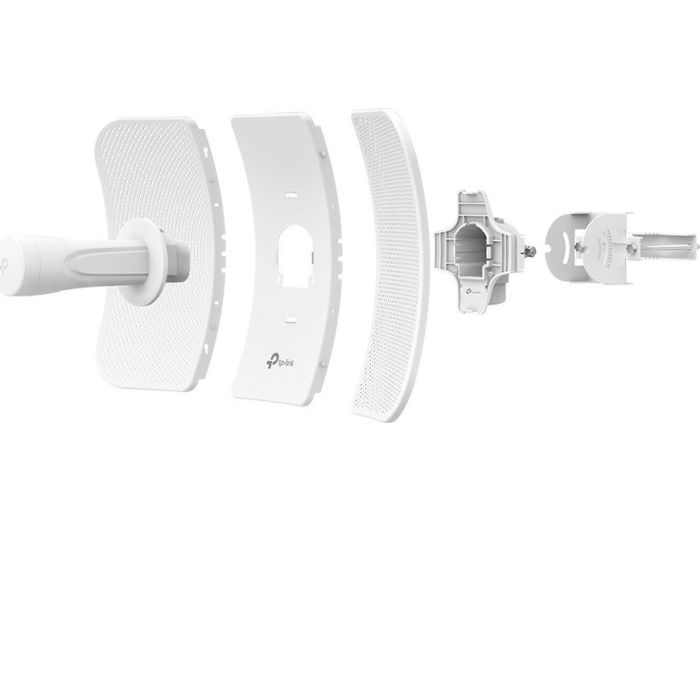

Innovative snap-lock parts enable quick installation, while a robust structural design keeps the CPE610 stable even in strong winds
Durable, weather-resistant IP65 housing, along with 15 kV ESD and 6 kV lightning protection2, ensures suitability in all weather conditions
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity, and latency
Pharos Control provides administrators with a free, centralized management system
Passive PoE support enables flexible deployment and convenient installation

HARDWARE FEATURES
560MHz CPU, MIPS 74Kc
Memory 64 MB DDR2 RAM, 8 MB Flash
Interface 1 10/100Mbps secure Ethernet port (LAN/POE)
1 Reset button
Power supply Passive power supply via Ethernet over LAN (+4.5 pins; -7.8 pins)
Voltage range: 16-27VDC
Power consumption 8.8 W
Note: When implementing passive PoE, the power drawn by the power source will be higher by a certain amount depending on the length of the connection cable.
Dimensions (W x D x H) 14.4 x 11.0 x 8.1 in
Antenna gain 23dBi
Antenna beam width 9° (azimuth), 7° (elevation)
Protection 15KV ESD protection
6KV lightning protection
Housing material: PC stabilized plastic for outdoor use
Weather resistant: IP65 water and dust resistant design
WIRELESS FEATURES
Wireless standards IEEE 802.11a/n
Proprietary TDMA protocol mode (with Pharos MAXtream enabled)
Wireless speeds up to 300 Mbps (40 MHz, dynamic)
Up to 144.4 Mbps (20MHz, dynamic)
Up to 72.2 Mbps (10 MHz, dynamic)
Up to 36.1 Mbps (5 MHz, dynamic)
Frequency 5.15~5.85 GHz
Transmission power Max. 25dBm (adjustable power for 1dBm)
SOFTWARE FEATURES
WAN network configuration: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI firewall/Ping denial/DoS protection
Access control
Static routing
Bandwidth control
IP & MAC binding
Wireless configurations Pharos MAXtream TDMA technology
Selectable channel width: 5/10/20/40MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
Enable/disable WDS
Security: WPA/WPA2 encryption, WPA-PSK/WPA2-PSK (AES/TKIP),
64/128/152-bit WEP encryption
Enable/disable SSID broadcast
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK time limit setting
Wireless MAC address filter
Wireless advanced:
Beacon interval/RTS threshold/Fragmentation threshold/DTIM interval/AP isolation/Short GI/Wi-Fi Multimedia
Remote management discovery and management via Pharos Control app
HTTP/HTTPS web management
System log
SNMP agent (v2c)
Ping Watch Dog
Dynamic DDNS
SSH server
System tool indicators: signal strength/noise/CCQ/CPU/memory transfer
Monitors: Throughput/Stations/Interfaces/ARP/Paths/WAN/DHCP
Spectrum analyzer
Speed test
Ping
Traceroute
System-level optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware bandwidth guard
POE ADAPTER FEATURES
Dimensions (W x D x H) 4.3 x 2.2 x 1.3 in
Interfaces 1 AC Jack with grounding
1 10/100 Mbps shielded Ethernet port (power + data)
1 10/100 Mbps shielded Ethernet port (data)
Button Remote reset button
Power status LED lights Green
Input 100-240VAC, 50/60Hz
Output 24 VDC, 0.5 A max
+4.5 pins; -7.8 pins. (Supports up to 60m Power over Ethernet)
Efficiency >84.29%
Certificates CE/FCC
OTHER
Certification FCC, RoHS
Package contents External wireless CPE
24V 0.5A passive PoE adapter
Strips for pole mounting
AC power cable
Installation instructions
Operating temperature: -40℃~70℃ (-40℉~158℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
