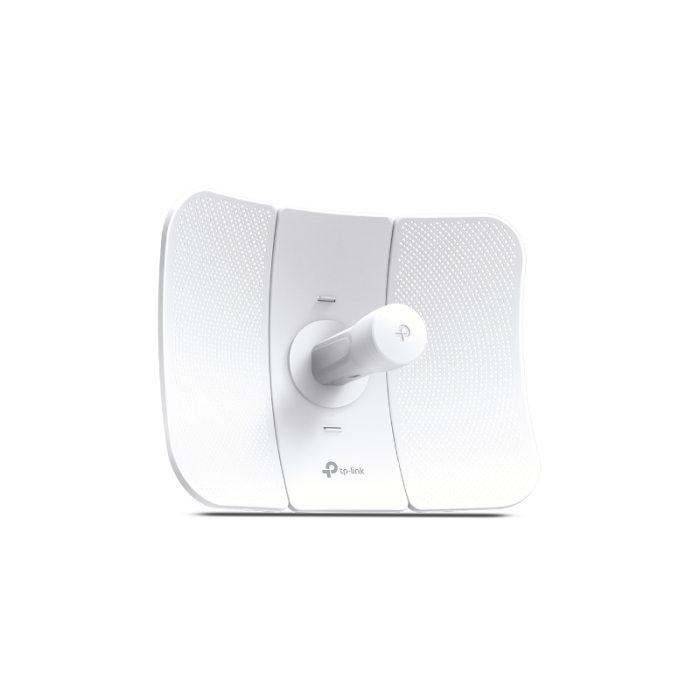

TP-LINK CPE710 5GHz AC 867Mbps 23dBi outdoor CPE access point

802.11ac for up to 867Mbps at 5GHz wireless data rates
23dBi high-gain directional 2×2 MIMO, ideal for long-range wireless transmission up to 30km
Excellent beamforming, improved latency and noise cancellation
Innovative snap-lock parts enable quick installation, while the robust structural design keeps the CPE710 stable even in strong winds
Durable, weather-resistant IP65 housing, together with 15 kV ESD and 6 kV lightning protection, ensures suitability in all weather conditions
Pharos Control provides administrators with a free, centralized management system
Passive PoE support enables flexible deployment and convenient installation

HARDWARE FEATURES
Qualcomm 750MHz CPU, MIPS 74Kc
Memory 128 MB DDR2 RAM, 16 MB Flash
Interface 1 10/100/1000 Mbps secure Ethernet port (LAN/POE)
1 Reset button
Power supply Passive power over Ethernet via LAN (+4.5 pins; -7.8 pins)
Voltage range: 16-27V DC
Dimensions (W x D x H) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna gain 23 dBi
Antenna beam width 9° (azimuth)/7° (elevation)
Protection 15 KV ESD protection
6 KV lightning protection
Housing material: PC stabilized plastic for outdoor use
Weather resistant: IP65 water and dust resistant design
WIRELESS FEATURES
Wireless standards IEEE 802.11a/n/ac
Wireless speeds up to 867 Mbps (80 MHz, dynamic)
Up to 400 Mbps (40 MHz, dynamic)
Up to 173.4 Mbps (20 MHz, dynamic)
Frequency 5.15–5.85 GHz
Transmit power Max. 27 dBm (adjustable power in 1 dBm steps)
SOFTWARE FEATURES
WAN network configuration: Static/Dynamic/PPPoE
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI firewall/ping prohibition/DoS protection
Access control
Static routing
Bandwidth control
IP & MAC binding
Wireless configurations Channel width selection: 20/40/80MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
Enable/disable WDS
Security: WPA/WPA2 encryption, WPA-PSK/WPA2-PSK (AES/TKIP),
Enable/disable SSID broadcast
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK time limit setting
Wireless MAC address filter
Wireless advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long-range PtP
Remote management discovery and management via Pharos Control app
HTTP/ HTTPS Web management
System log
SNMP Agent (v2c)
Ping Watch Dog
Dynamic DDNS
SSH server
System tool indicators: signal strength/noise/CCQ transmission/CPU/memory
Monitors: throughput/stations/interfaces/ARP/paths/WAN/DHCP
Spectrum analyzer
Speed test
Ping
Traceroute
Antenna alignment
System-level optimizations Optimized IGMP Snooping/Proxy for multicast applications
POE ADAPTER FEATURES
Dimensions (W x D x H) 85.8×43.9×29.7 mm
Interfaces 1 AC Jack with grounding
1× 10/100/1000 Mb/s shielded Ethernet port (power + data)
1 × 10/100/1000 Mbps shielded Ethernet port (data)
Button Remote reset button
Power status LED lights Green
Input 100-240VAC, 50/60Hz
Output 24 VDC, 0.5 A max
+4.5 pins; -7.8 pins. (Supports up to 60m Power over Ethernet)
Efficiency >84.29%
Certificates CE/FCC/UL/IC/GS/PSB/SAA/S-Mark/KC-mark
OTHER
Certification CE, FCC, RoHS, IP65, IC
Package contents External wireless CPE
24V 0.5A passive PoE adapter
Pole mounting kits
AC power cable
Installation instructions
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: For a better user experience, we recommend using one of the following web browsers: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Operating temperature: -40℃~70℃ (-40℉~158℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~95% without condensation
