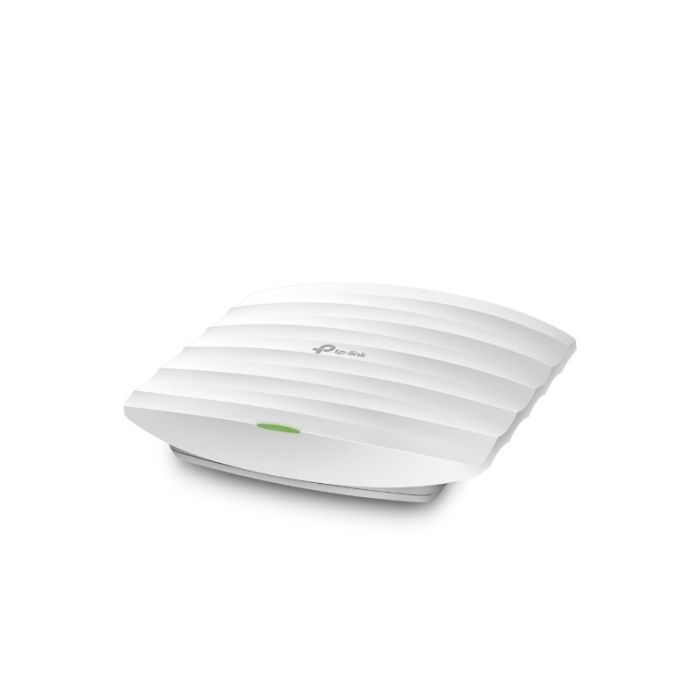

TP-LINK EAP225 AC1350 Wireless Dual Band Gigabit Ceiling Access Point

The TP-LINK EAP225 access point allows for flexible ceiling or wall mounting, is easy to manage, and provides security for businesses. WLAN configuration and management are simplified through the ability to create clusters or use a centralized management program. It is ideal for use in demanding environments such as hotels, student residences, shopping centers, offices, etc.

Centralized Wi-Fi management: The software allows administrators to easily manage hundreds of EAPs via computers on the network for efficient management without high costs.

Guest authentication - Captive portal provides a convenient method of Wi-Fi guest authentication. It requires the user to complete certain steps before they can access the network. The required step must be confirmed by an external server or via a configured database managed by the administrator. The steps can be as simple as agreeing to the terms and conditions or entering a user ID and password.

EAP225 achieves speeds of up to 1200Mbps, up to 300Mbps in the 2.4GHz band, and up to 867Mbps in the 5GHz band.
The combination of Wi-Fi 802.11ac and advanced 3x3 MIMO technology enables EAP devices to offer an unmatched Wi-Fi experience.
Power over Ethernet (802.3af) support and easy mounting allow for flexible placement and convenient installation.
Band steering automatically redirects dual-band devices to the wider 5GHz band for faster connections.
Supports VLAN management for improved network management.
Access Control restricts or allows client access to a specific network segment.
Reboot Schedule allows all access points to automatically reboot at a specified time or schedule.
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication ensures secure WLAN access points.
Multi SSID divides multiple wireless networks for different users.
The QoS function prioritizes data, audio, and video applications to ensure priority for speed-sensitive data.

Interface: Gigabit Ethernet (RJ-45) port *1 (supports IEEE802.3af PoE)
Power supply: PoE or external 12VDC / 1.5A power supply
Power consumption: 10.15W
Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a, IEEE 802.11ac
Dimensions: 180 x 180 x 47.5 mm
Antenna: internal omnidirectional 2.4GHz: 2x 4dBi, 5GHz: 2x 4dBi
Mounting: ceiling/wall mounting (mounting kit included)
Physical security lock: Kensington Lock Slot
Frequency: 2.4GHz and 5GHz
Wireless speed: 5GHz: up to 867Mbps, 2.4GHz: up to 300Mbps
Wireless security: 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Package contents: EAP225, power adapter, mounting kit
System requirements: Microsoft Windows 10/8/7/Vista/XP


Manufacturer's website: http://www.tp-link.com/en/products/details/cat-5692_EAP225.html#overview
