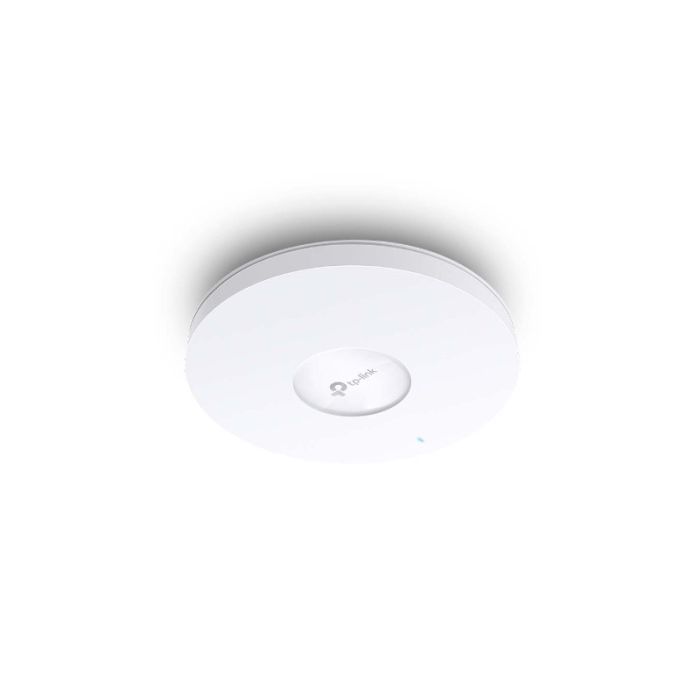

TP-LINK EAP620 HD Wireless AX1800 WiFi 6 Ceiling Access Point

Extremely fast WiFi 6 speeds: simultaneous 574 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz, totaling 1775 Mbps Wi-Fi speeds.
High-density connectivity: 4× increased capacity for connecting multiple devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, centralized cloud management, and intelligent monitoring.
Centralized management: cloud access and Omada app for exceptional convenience and easy management.
Ultra-thin design: Elegant Φ160 mm × 33.6 mm form factor brings more agility.
Seamless roaming: even video streams and voice calls are not affected when users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ power supply: Supports DC (adapter included), 802.3at PoE+, and passive PoE for flexible installations.
Secure guest network: Along with multiple authentication options (SMS/voucher, etc.) and numerous wireless security technologies.

HARDWARE FEATURES
1× Gigabit Ethernet (RJ-45) port (supports IEEE802.3at PoE and Passive PoE)
Reset button
Power • 802.3at PoE
• 48 V passive PoE
• 12 V / 1.5 A DC
Power consumption • EU: 14.4 W (for PoE); 13.1 W (for DC)
• US: 14.9 W (for PoE); 13.4 W (for DC)
Dimensions (W x D x H) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna type Internal Omni antenna
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 5 dBi
Mounting • Ceiling/wall mount (kits included)
• Junction box mounting
WIRELESS FEATURES
Coverage 140 m² (1,500 ft²)***
Simultaneous clients 1,020+**
Wireless standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal speed • 5 GHz: up to 1201 Mbps†
• 2.4 GHz: up to 574 Mbps†
Wireless features • 1024-QAM
• 4× longer OFDM symbol
• OFDMA
• Multiple SSIDs (up to 16 SSIDs, 8 per band)
• Enable/disable wireless radio
• Automatic channel assignment
• Transmit power control (adjust transmit power in dBm)
• QoS (WMM)
• MU-MIMO
• Seamless roaming (802.11k/v/r)
• Omada Mesh
• Band steering
• Load balancing
• Fair play
• Beamforming
• Rate limiting
• Restart schedule
• Wireless schedule
• Wireless statistics based on SSID/AP/client
Wireless security • Captive portal authentication△
• Access control
• Wireless MAC address filtering
• Wireless isolation between clients
• SSID mapping to VLAN
• Rogue AP Detection
• 802.1X support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power • CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz band 1/2, EIRP) <25 dBm (5 GHz band 3)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized management • Omada Controller in the cloud (supported by EAP620 HD v2.0 and later)
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud access Yes, via
• OC300
• OC200
• Omada Software Controller
• Omada Cloud Controller (supported by EAP620 HD v2.0 and above)
Email alerts Yes
LED ON/OFF Monitoring Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
System logging Local/remote system log Local/remote system log
SSH Yes
Web Management HTTP/HTTPS
L3 Management Yes
Multi-site management Yes
VLAN management Yes
Touchless enable Yes. Requires Omada Cloud Controller (supported by EAP620 HD v2.0 and above)
OTHER
Certification CE, FCC, RoHS
Package contents • EAP620 HD
• Charger
• Ceiling/wall mounting kits
• Installation instructions
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH without condensation
• Storage humidity: 5–90% RH without condensation
