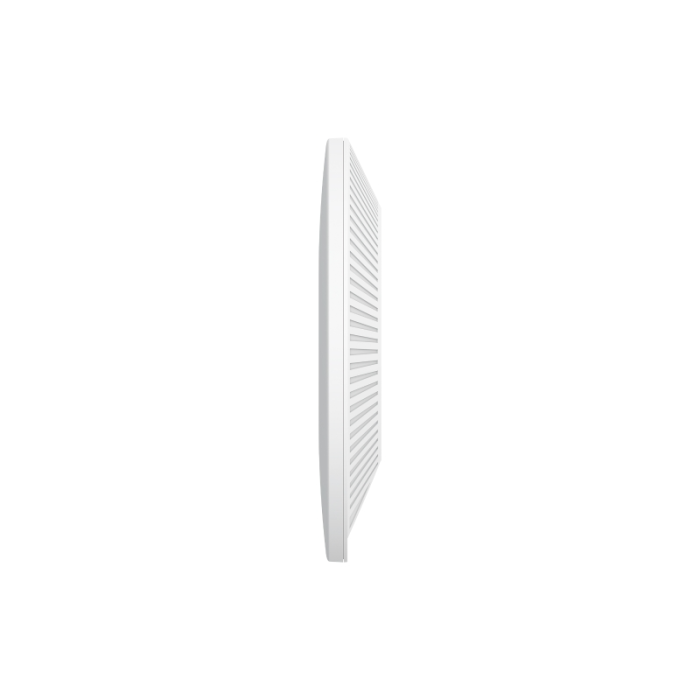

TP-LINK EAP660 HD AX3600 Wireless WiFi 6 2.5 Gbps LAN Ceiling Access Point

Extremely fast Wi-Fi 6 speeds (1148 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz).
Capacity for up to 1,000+ clients, ideal for high-density scenarios.
All-new ultra-thin design
Integrated with Omada SDN, supporting centralized cloud management, ZTP, and more.
2.5 Gbps Ethernet ports increase total Internet throughput.
Supports 802.3at PoE for convenient deployment and installation.

HARDWARE FEATURES
Interface 1 × 2.5 Gbps Ethernet port (supports IEEE802.3at PoE)
Reset button
Power • 802.3at PoE
• 12 V DC
Power consumption • EU: 25.5 W
• US: 22.3 W
Dimensions (W x D x H) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4 × 4 dBi
• 5 GHz: 4 × 5 dBi
Mounting Ceiling/wall mount (kits included)
WIRELESS FEATURES
Coverage 200 m² (2,150 ft²)
Simultaneous clients 1,020+
Wireless standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal speed • 5 GHz: up to 2402 Mbps
• 2.4 GHz: up to 1148 Mbps
Wireless features • 1024-QAM
• 4× longer OFDM symbol
• OFDMA
• Multiple SSIDs (up to 16 SSIDs, 8 per band)
• Enable/disable wireless radio
• Automatic channel assignment
• Transmit power control (adjust transmit power in dBm)
• QoS (WMM)
• MU-MIMO
• Seamless roaming
• Omada Mesh
• Band steering
• Load balancing
• Fair play
• Beamforming
• Speed limit
• Restart schedule
• Wireless schedule
• Wireless statistics based on SSID/AP/client
Wireless security • Captive portal authentication△
• Access control
• Wireless MAC address filtering
• Wireless isolation between clients
• SSID mapping to VLAN
• Rogue AP Detection
• 802.1X support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power • CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)
MANAGEMENT
Omada app Yes
Centralized management • Omada cloud controller
• Omada hardware controller (OC300)
• Omada hardware controller (OC200)
• Omada Software Controller
Cloud access Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email alerts Yes
LED ON/OFF Control Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
System Logging Local/Remote System Log Local/Remote System Log
SSH Yes
Web Management HTTP/HTTPS
L3 Management Yes
Multi-site management Yes
VLAN management Yes
Touchless enablement Yes. Requires the use of Omada cloud controller.
OTHER
Certification CE, FCC, RoHS
Package contents • EAP660 HD
• Charger
• Ceiling/wall mounting kits
• Installation instructions
System requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment • Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH without condensation
• Storage humidity: 5–90% RH without condensation
