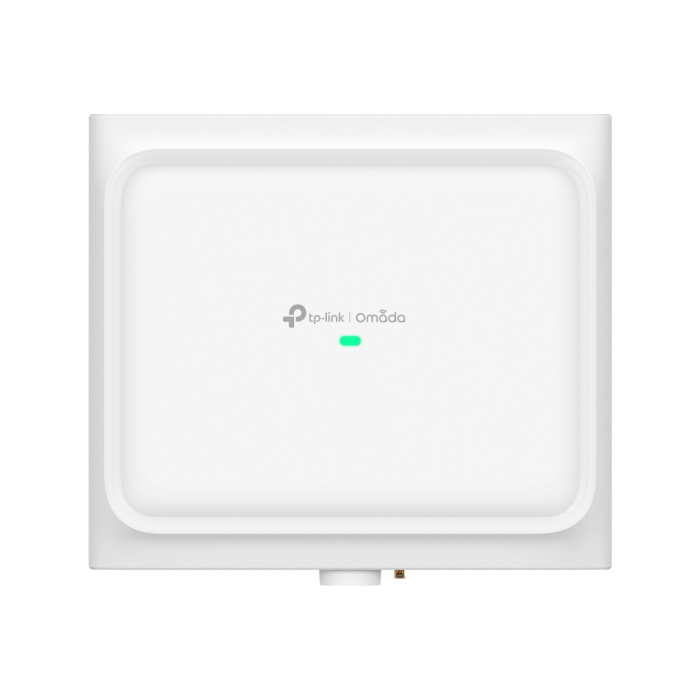

TP-LINK EAP772-Outdoor Wi-Fi 7 BE11000 Outdoor Gigabit Access Point

The EAP772-Outdoor is a powerful outdoor Wi-Fi 7 access point designed for wide coverage, high device capacity, and resilience in harsh weather conditions. It is equipped with one 2.5G Ethernet port with support for PoE 802.3at, enabling easy power supply and installation without additional electrical wiring. The IP68-certified housing provides protection against rain, dust, and temperature extremes, enabling reliable operation in outdoor environments.
The access point supports three frequency bands—2.4 GHz, 5 GHz, and 6 GHz—with combined speeds of up to 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz. Omnidirectional antennas and advanced technologies such as 4K-QAM, OFDMA, MU-MIMO, 320 MHz channel, and MLO enable stable operation and high throughput even with a large number of simultaneous connections. The EAP772-Outdoor supports up to 380+ clients and is suitable for outdoor areas such as courtyards, business courtyards, campuses, and hotel complexes.
The integrated GNSS receiver with support for GPS, Galileo, GLONASS, and BeiDou signals enables accurate device positioning, while Bluetooth BLE 5.2 facilitates installation and configuration. Advanced features such as automatic channel selection, band steering, load balancing, airtime fairness, and Omada Mesh connectivity enable flexible and optimized network performance.
The EAP772-Outdoor includes a comprehensive set of security options such as Captive Portal, 802.1X, WPA/WPA2/WPA3, and client isolation, while Omada controllers enable centralized management, reporting, multi-site administration, and Zero-Touch Provisioning. The included mounting kits allow for easy wall or pole mounting and ensure a robust and stable outdoor installation.

HARDWARE FEATURES
Interface:
• 1 × 2.5G Ethernet (RJ-45) port (supports 802.3at PoE)
Button: Reset
Power supply: 802.3at PoE
Maximum power consumption: 21.5 W (via PoE)
Dimensions (W × D × H): 230 × 207.5 × 69.7 mm
Antennas:
• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 6 dBi
• 6 GHz: 2 × 6 dBi
GNSS:
• L1 receiver (1575.42 MHz), supports GPS, Galileo, GLONASS, BeiDou
• Sensitivity: –164 dBm (tracking)
• Integrated 3 dBi omnidirectional antennas
Bluetooth: BLE 5.2
Housing: IP68 (weatherproof)
Installation: pole or wall mount (kits included)

WIRELESS FEATURES
Recommended coverage: 300 m² (3,200 ft²), omnidirectional
Number of simultaneous clients: 380+
Wireless standards: IEEE 802.11be/ax/ac/n/g/b/a
Frequencies: 2.4 GHz, 5 GHz, 6 GHz
Signal speed:
• 2.4 GHz: 688 Mbps
• 5 GHz: 2882 Mbps
• 6 GHz: 5765 Mbps
Wireless features
4K-QAM
OFDMA
Multiple SSIDs: 24 (8 per band)
Enable/Disable Wireless Radio
Automatic channel selection
Transmit power control (in dBm)
QoS (WMM)
MU-MIMO
MLO
320 MHz
Omada Mesh
Seamless Roaming (802.11k/v/r)
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedules
Wireless Statistics by SSID/AP/Client
Static IP / Dynamic IP
Wireless security
Captive Portal Authentication
Access Control
Wireless MAC address filtering
Client isolation
SSID-to-VLAN mapping
Rogue AP Detection
802.1X
WPA-Personal / WPA-Enterprise
WPA2-Personal / WPA2-Enterprise
WPA3-Personal / WPA3-Enterprise
OWE
Transmission power
CE – Indoor Mode:
• < 20 dBm (2.4 GHz)
• < 23 dBm (5 GHz, band 1 & 2)
• < 28 dBm (5 GHz, band 3)
• < 23 dBm (6 GHz)
CE – Outdoor Mode:
• < 20 dBm (2.4 GHz)
• < 28 dBm (5 GHz, band 3)
FCC – Indoor Mode:
• < 25 dBm (2.4 GHz, 5 GHz, 6 GHz)
FCC – Outdoor Mode:
• < 25 dBm (2.4 GHz, 5 GHz, 6 GHz)

MANAGEMENT
Omada App: yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud access: yes (requires Omada Controller)
Email alerts: yes
MAC Access Control Management: yes
SNMP: v1, v2c
Syslog (local/remote): yes
SSH: yes
Web management: yes
L3 Management: yes
Multi-site Management: yes
VLAN management: yes
Zero-Touch Provisioning: yes (with Omada Cloud Controller)

OTHER
Certifications: CE, FCC, RoHS
Package contents: EAP772-Outdoor access point, Waterproof kit, Mounting kit, Installation manual
System requirements: Windows XP, Vista, Windows 7/8/10/11, Linux
Environment:
Operating temperature: –30 to 70 °C
Storage temperature: –40 to 70 °C
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 90% RH (non-condensing)
