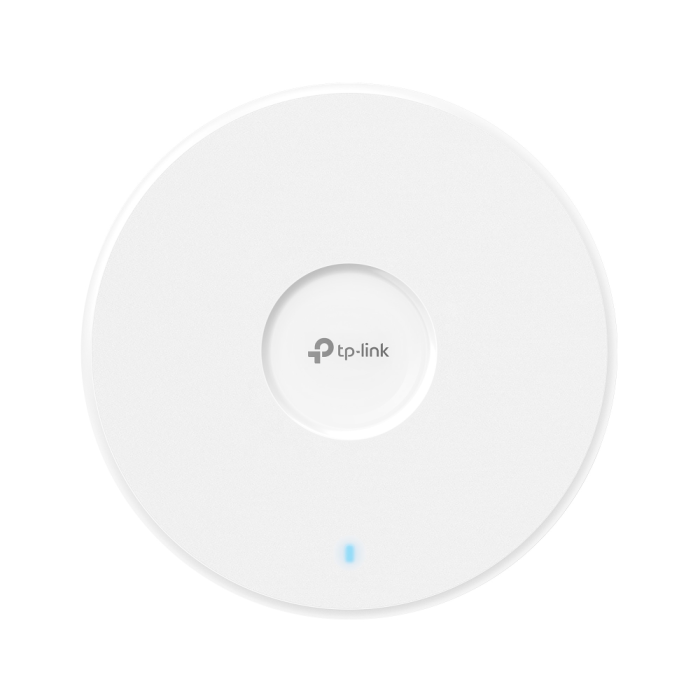

TP-LINK EAP773 Wi-Fi 7 BE9300 Ceiling-Mounted Tri-Band Access Point

The EAP773 is a tri-band Wi-Fi 7 access point designed for high-performance business networks that require high speeds and stable wireless coverage. With support for the 6 GHz, 5 GHz, and 2.4 GHz bands, it delivers aggregate speeds of up to 5760 Mbps, greatly improving the transfer of large amounts of data, network responsiveness, and the performance of multiple simultaneously connected devices. Advanced technologies such as Multi-Link Operation, OFDMA, MU-MIMO, and 4K-QAM improve bandwidth efficiency and reduce latency.
The access point is equipped with a 10-gigabit Ethernet interface, which enables high wired network throughput, while PoE compatibility simplifies installation without additional cables. Built-in Bluetooth 5.2 allows for easy setup and management. The housing is designed for ceiling or wall mounting, enabling optimal coverage in a variety of spaces.
The EAP773 supports centralized management via Omada Cloud or a local controller, allowing you to control a large number of access points from a single location. With a wide operating temperature range and reliable construction, it is suitable for professional environments where high wireless performance and stability are required.

HARDWARE FEATURES
Interface: 1 × 10G Ethernet port
Button: Reset
Power supply: 802.3at PoE or 12V/2.5A DC
Maximum power consumption:
• 24.05 W (for PoE)
• 20.92 W (for DC)
Dimensions (W × D × H): 220 × 220 × 32.5 mm
Antennas:
• 2.4 GHz: 2 × 4.0 dBi
• 5 GHz: 2 × 5.0 dBi
• 6 GHz: 2 × 5.0 dBi
Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
Mounting: ceiling/wall/distribution cabinet mounting (kits included)

WIRELESS FEATURES
Coverage: approx. 140 m²
Simultaneously connected users: 380+
Wireless standards: IEEE 802.11 a/b/g/n/ac/ax/be
Frequency bands: 6 GHz, 5 GHz, and 2.4 GHz
Signal speed:
• 574 Mbps (2.4 GHz)
• 2880 Mbps (5 GHz)
• 5760 Mbps (6 GHz)
Wireless features:
• MLO (Multi-Link Operation)
• 4K-QAM
• Seamless Roaming (802.11k/v/r)
• MU-MIMO (2×2 DL/UL)
• 320 MHz bandwidth
• Mesh
• BSS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs: 24 (8 per band)
• Wireless Schedule
• Reboot Schedule
• QoS (WMM)
• Rate Limit
• Stat IP / Din IP
• RADIUS Accounting
• MAC Authentication
Wireless network security:
• Captive Portal Authentication
• Access Control
• MAC Filter (up to 4000)
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power (EIRP):
• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz band 1 & 2)
• <28 dBm (5 GHz band 3)
• <23 dBm (6 GHz)

MANAGEMENT
Omada App: yes
Centralized management:
• Omada Cloud-based Controller
• Omada hardware controller
• Omada software controller
Cloud Access: yes (requires Omada controller)
Email notifications: yes
LED ON/OFF control: yes
MAC Access Control: yes
SNMP: v1, v2c, v3
System logging (local/remote): yes
Web-based management: yes

OTHER
Certificates: CE , FCC, RoHS, IC
Package contents: EAP773, Installation instructions, Mounting kit (ceiling/wall/coupling)
Operating environment:
Operating temperature: 0 °C – 40 °C
Storage temperature: -40 °C – 70 °C
Operating humidity: 10% – 90% RH (non-condensing)
Storage humidity: 5% – 90% RH (non-condensing)

*Note: DC power supply not included
