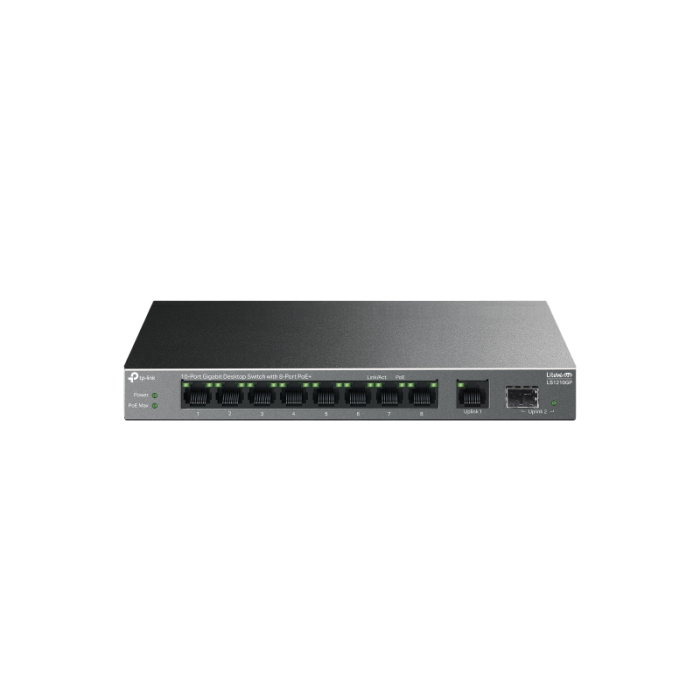

TP-LINK LS1210GP 10-port Gigabit network switch with 8-port PoE+

Full Gigabit Ports: 9× Gigabit RJ45 Ethernet ports with auto-negotiation and 1× Gigabit SFP port provide switching capacity up to 20 Gbps.
61 W PoE budget: Eight 802.3af/at-compliant PoE+ Gigabit ports easily connect and power fixed devices such as IP cameras, access points, and IP phones over a single cable. Each PoE port supports up to 30 W of PoE output power.*
Up to 250 m PoE transmission: With extended mode, the PoE transmission distance reaches up to 250 m, perfect for deploying surveillance cameras in large areas.
PoE Auto Recovery: Automatically restarts your PoE-powered devices if they become unresponsive.
Traffic separation for higher security: Isolation mode allows you to separate client traffic with one click to avoid snooping and interference and isolate broadcast storms.
Plug and Play: Simply plug and play for instant connectivity without configuration.
Quiet operation: Fanless design reduces power consumption and ensures quiet operation, ideal for noise-sensitive homes or businesses.
Reliable hardware design: Durable metal chassis and desktop/wall-mount design are highly suitable for various environments.

HARDWARE FEATURES
Interface
• 9 × 10/100/1000 Mbps RJ45 ports (ports 1–8 support PoE+ output)
• 1× Gigabit SFP Port
Network Media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m); EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m); EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6 or higher UTP cable (max. 100 m); EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
Installation • Desktop
• Wall mount
Physical security lock Yes
Power supply External power supply (output: 53.5 VDC / 1.31 A)
PoE+ ports (RJ45) • Standard: compliant with 802.3at/802.3af
• PoE ports: ports 1–8, up to 30 W of PoE output power per port
• PoE power budget: 61 W
Dimensions (W x D x H) 8.2×4.9×1.0 in (209×126×26 mm)
Maximum power consumption • 7.3 W (220/50 Hz. with no PD connected)
• 76.96 W (220/50 Hz. with 61 W PD connected)
Maximum heat dissipation • 24.82 BTU/h (without PD connected)
• 261.66 BTU/h (with 61 W PD connected)
DESIGN
Switching capacity 20 Gbps
Packet forwarding rate 14.88 Mpps
MAC address table 4K
Jumbo frame 16 KB
SOFTWARE FEATURES
Advanced features • Expansion mode button (ports 1–4, up to 250 m PoE power and data transmission)
• Isolation mode button (ports 1–8)
• PoE auto-recovery button (ports 1–8)
• Compatible with IEEE 802.3af/at compliant PDs
• IEEE802.3x flow control
• 802.1p/DSCP QoS
• IGMP snooping
• Green technology
Store-and-Forward transmission method
OTHER
Certification CE, FCC, RoHS
Package contents • LS1210GP
• Charger
• Installation instructions
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
