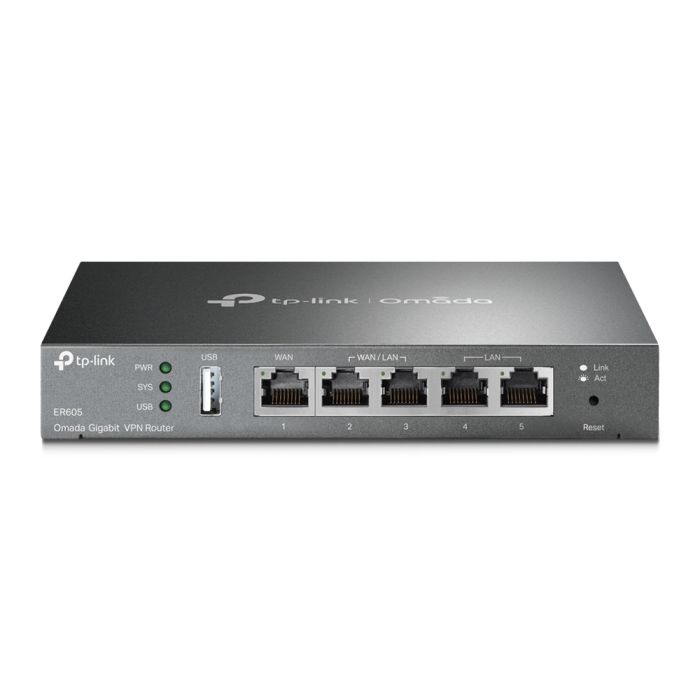

TP-LINK Omada ER605 Gigabit 4x WAN VPN Router

Integrated with Omada SDN: Zero-Touch Provisioning, centralized cloud management, and intelligent monitoring.
Centralized management: cloud access and Omada app for convenience and easy management.
Five Gigabit ports: fast wired connectivity.
Up to 3 WAN Ethernet ports: 1 Gigabit WAN port and 2 Gigabit WAN/LAN ports with load balancing increase the utilization rate of multi-line broadband connections.
One USB WAN port for mobile broadband connection: mobile broadband connection via 4G/3G modem is supported for WAN backup via USB port connection.
Highly secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
Abundance of security features: Advanced firewall rules, DoS protection, IP/MAC/URL filtering, and more security features protect your network and data.

HARDWARE FEATURES
Standards and protocols • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1 fixed Gigabit WAN port
• 2 fixed Gigabit LAN ports
• 2 interchangeable Gigabit WAN/LAN ports
• 1 USB 2.0 port (connecting a 4G/3G modem as a WAN backup‡)
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: UTP cable category 5, 5e, 6 (max. 100 m)
Button Reset button
Power supply External 12V/1A DC adapter
Flash 128 MB NAND
DRAM 256 MB DDR
LEDs PWR, SYS, WAN (link/power), LAN (link/power), USB
Dimensions (W x D x H) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Maximum power consumption 7.94 W
DESIGN
Concurrent sessions 150,000
New sessions/others 2600
NAT (Static IP) • Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bidirectional: 1808.29 Mbps
NAT(DHCP) • Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bidirectional: 1808.11 Mbps
NAT(PPPoE) • Upload: 940.44 Mbps
• Download: 940.52 Mbps
• Bidirectional: 1804.27 Mbps
NAT (L2TP) • Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bidirectional: 931.96 Mbps
NAT (PPTP) • Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bidirectional: 999.54 Mbps
64-byte packet forwarding rate • Upload/download: 1,402,238 pps
• Bidirectional: 1,681,548 pps
IPsec VPN throughput • ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mb/s
• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN • 21.70 Mbps
L2TP VPN throughput • Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
PPTP VPN throughput • Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps
BASIC FEATURES
WAN connection type • Static/dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile broadband connection: 4G/3G modem for backup via USB port‡
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP server/client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP interfaces*
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, custom mode, bridge mode
ADVANCED FEATURES
ACL IP/port/protocol/domain name filtering
Advanced routing • Static routing
• Routing policy
Bandwidth Control IP-based Bandwidth Control
Load balancing • Intelligent load balancing
• Application-optimized routing
• Connection backup (Time§, failover)
• Web discovery
NAT • One-to-one NAT
• Multi-Net NAT
• Virtual server
• Port triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall
• VPN pass-through
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS defense, Ping of Death
• Local management
Session restriction IP-based session restriction
VPN
IPsec VPN • 20 IPsec VPN tunnels
• LAN-to-LAN, Client-to-LAN
• Main, aggressive negotiation mode
• DES, 3DES, AES128, AES192, AES256 encryption algorithms
• IKEv1/v2
• MD5, SHA1 authentication algorithm
• NAT traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN server
• 10 PPTP VPN clients**
• 16 tunnels
• PPTP with MPPE encryption
L2TP VPN • L2TP VPN server
• 10 L2TP VPN clients**
• 16 tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server*
• 10 OpenVPN clients*△
• 16 OpenVPN tunnels*
SECURITY
Filtering • Web group filtering
• URL filtering
• Web security§
ARP inspection • GARP packet sending§
• ARP scanning§
• IP-MAC binding§
Attack protection • TCP/UDP/ICMP Flood protection
• Block TCP scanning (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access control Source/Destination IP-based access control
AUTHENTICATION
Web Authentication • No Authentication
• Simple password*
• Hotspot (Local user/Voucher*/SMS*/Radus*)
• External radius Sever
• External portal north*
• Facebook
MANAGEMENT
Omada App Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Dynamic DNS service (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web management interface
• Remote management
• Export and import configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP synchronization
• System log support
Touchless enablement Yes. Requires use of Omada cloud controller.
Management Features • Automatic device discovery
• Intelligent network monitoring
• Abnormal event alerts
• Unified configuration
• Reboot schedule
• Interception portal configuration
OTHER
CE, FCC, RoHS certification
Package contents • Gigabit VPN Router ER605
• Charger
• RJ45 Ethernet cable
• Quick installation guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™, or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX, or Linux
Environment • Operating temperature: 0–40 ℃ (32–104 ℉);
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH without condensation
• Storage humidity: 5–90% RH without condensation
