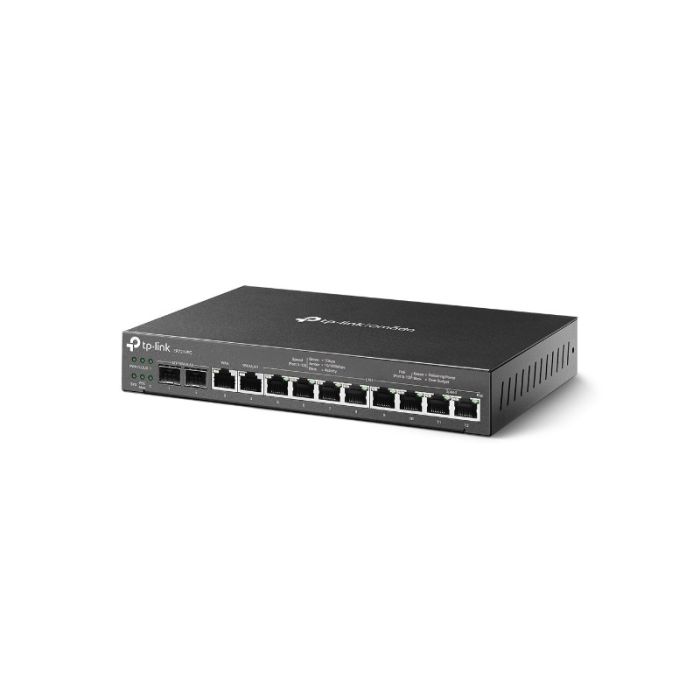

TP-LINK Omada ER7212PC 3-in-1 Gigabit VPN Router

3-in-1 router: combines a router, PoE switch, and Omada controller.
Professional hardware: Dual-core processor with 1 GB DDR3 memory provides exceptional performance for up to 12× Gigabit ports.
Up to 4 × WAN Ethernet ports: equipped with 2 × Gigabit SFP WAN/LAN ports, 1 × Gigabit RJ45 WAN port, and 1 × Gigabit RJ45 WAN/LAN port.
110 W PoE Budget: 8 × 802.3at/af-compliant PoE+ RJ45 LAN ports deliver a total power of 110 W*.
Centralized Management: Cloud access and the Omada app provide convenience and easy management.
Highly secure VPN: supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy installation: compact fanless design for desktop and wall mounting.

HARDWARE FEATURES
Standards and protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface • 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6 UTP cable (max. 100 m)
Fan quantity No fan
Button Reset button
Power supply 53.5 VDC/2.43 A Adapter
PoE Budget 8-port PoE+ output, 110 W PoE Budget
Flash 8Mb or +4GB EMMC
DRAM 1 GB DDR3
LED PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (speed, link/action), LAN (speed, link/action)
Dimensions (W x D x H) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection 4 kV surge protection
Steel housing
Desktop/wall mount installation
Maximum power consumption • 133.2 W with PoE Max
• 13.88 W without PoE
DESIGN
Simultaneous sessions 24,980
New sessions/others 1,900
NAT (static IP) 935.5 Mbps / 942.1 Mbps
NAT (DHCP) 940.2 Mb/s / 941.7 Mb/s
NAT (PPPoE) 913.1 Mbps / 935.2 Mbps
NAT (L2TP) 545.0 Mbps / 912.7 Mbps
NAT (PPTP) 523.0 Mbps / 912.8 Mbps
IPsec VPN throughput AES256: 168.5 Mbps
OpenVPN 34 Mbps
L2TP VPN throughput • Unencrypted: 845.3 Mbps
• Encrypted: 333.2 Mbps
PPTP VPN throughput • Unencrypted: 1012.6 Mbps
• Encrypted: 401.4 Mbps
66-byte packet forwarding rate 154,069 pps / 156,977 pps
1518 bytes Packet forwarding rate 81,193 pps / 81,193 pps
BASIC FUNCTIONS
WAN connection type • Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone Change WAN MAC Address
DHCP • DHCP server
• DHCP Address Reservation
• Multi-IP interfaces
• Multi-Net DHCP
IPv6 Support
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 proxy
ADVANCED FEATURES
ACL IP/port/protocol/domain name filtering
Advanced routing • Static routing
• Routing policy
Bandwidth Control IP/port-based bandwidth control
Load balancing • Intelligent load balancing
• Application-optimized routing
• Connection backup
• Web discovery
NAT • Multi-Net NAT
• Virtual server
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session restriction Session restriction based on IP
VPN
SSL VPN -
IPsec VPN • 20 IPSec VPN tunnels
• LAN-to-LAN, Client-to-LAN
• Main, aggressive negotiation mode
• AES128, AES192, AES256 encryption algorithm
• IKE v1/v2
• SHA1, SHA2 authentication algorithm
• NAT traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN server
• PPTP VPN client (10)
• 16 tunnels
• PPTP with MPPE encryption
L2TP VPN • L2TP VPN server
• L2TP VPN client (10)
• 16 tunnels
• L2TP over IPSec
OpenVPN • OpenVPN server
• OpenVPN client (10)
• 16 OpenVPN tunnels
SECURITY
URL filtering Filtering
ARP Inspection -
Attack Protection • TCP/UDP/ICMP Flood Protection
• Block TCP scanning (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control Source/Destination IP-based Access Control
AUTHENTICATION
Web Authentication • No Authentication
• Simple password
• Access point (local user / coupon / SMS / radius)
• External radius Sever
• External Portal North
MANAGEMENT
Omada application Yes.
Centralized management Yes.
Cloud access Yes.
Dynamic DNS service (Dyndns, No-IP)
Maintenance • Web-based management interface
• Remote management
• Export and import configuration
• SNMP v1/v2c/v3
• System log support
Touchless provisioning -
Management features • Automatic device discovery
• Intelligent network monitoring
• Abnormal event alerts
• Unified configuration
• Reboot schedule
• Proxy portal configuration
• Management of up to 2 switches and 10 EAPs
OTHER
CE, FCC, RoHS certification
Package contents • ER7212PC
• Charger
• Power cable
• Quick installation guide
System requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™, or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX, or Linux
Environment • Operating temperature: 0°C to 45°C (32°F to 113°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating humidity: 10% to 90% non-condensing
• Storage humidity: 5% to 90% non-condensing
