Durable, weather-resistant housing for outdoor Wi-Fi applications
Up to 1200Mbps with 2 × 2 MIMO technology
Omada Mesh Technology enables wireless connectivity between APs for extended coverage, making wireless devices more flexible and convenient
Supports Seamless Roaming
High transmission power and high-gain antennas ensure long-range coverage
Free centralized cloud management and Omada app for exceptional convenience and easy management
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS authentication help boost your business
802.3af/passive PoE (PoE Adapter included) compatible and easy mounting design allows for flexible installation and convenient placement
Technical specifications:
| HARDWARE FEATURES |
|---|
| Interface |
Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE) |
|---|
| Button |
Reset |
|---|
| Power |
802.3af PoE and 24 Passive PoE (PoE Adapter Included) |
|---|
| Power Consumption |
10.5 |
|---|
| Dimensions (W x D x H) |
8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |
|---|
| Antenna |
2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
|---|
| Weatherproof Enclosure |
IP65 |
|---|
| Mounting |
Pole/Wall Mounting (Kits included) |
|---|
| Hardware Watch Dog |
Yes |
|---|
| WIRELESS FEATURES |
|---|
| Wireless Standards |
IEEE 802.11a/b/g/n/ac |
|---|
| Frequency |
2.4GHz, 5GHz |
|---|
| Signal Rate |
802.11ac: 5G: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80) 2.4G: 78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|---|
| Wireless Functions |
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client |
|---|
| Wireless Security |
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support |
|---|
| Transmission Power |
23dBm, max. (2.4GHz)
22dBm, max. (5GHz) |
|---|
| MANAGEMENT |
|---|
| Omada Controller Software |
Yes |
|---|
| Email Alerts |
Yes |
|---|
| Management MAC Access Control |
Yes |
|---|
| System Logging Local/Remote Syslog |
Yes |
|---|
| Web-based Management |
Yes |
|---|
| L3 Management |
Yes |
|---|
| Multi-site Management |
Yes |
|---|
| VLAN Management |
Yes |
|---|
| OTHERS |
|---|
| Certification |
FCC
RoHS |
|---|
| Package Contents |

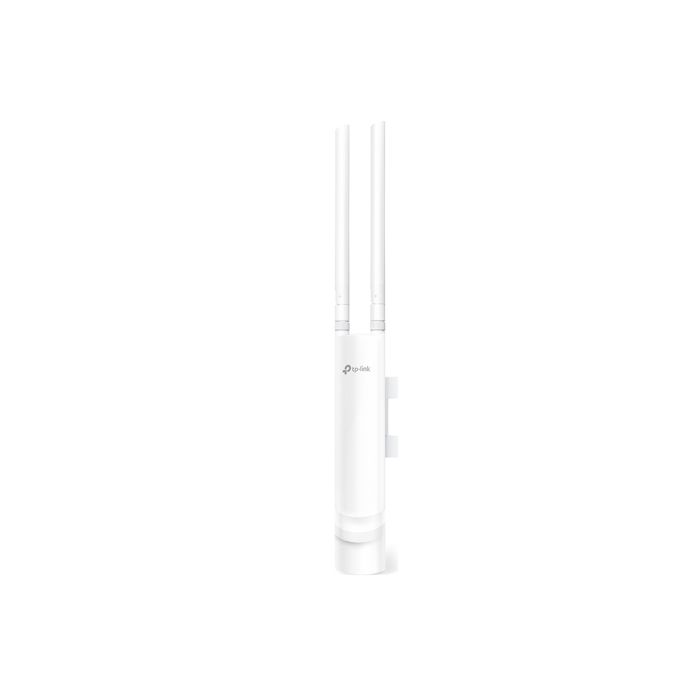

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna |
|---|
| Environment |
Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
Manufacturer's website: https://www.tp-link.com/us/products/details/cat-4908_EAP225-Outdoor.html#overview
