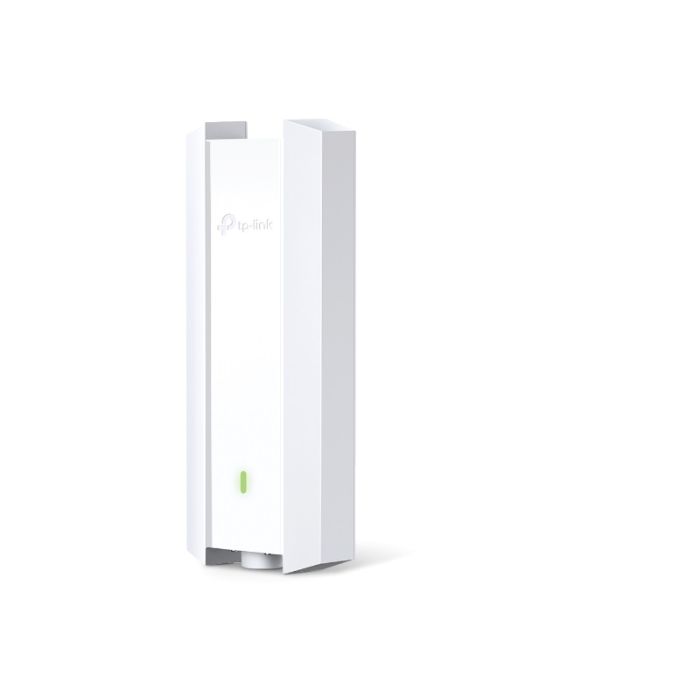

TP-LINK Outdoor Gigabit Access Point EAP610-outdoor

Top WiFi 6 speeds: Delivers dual-band speeds of up to 1.8 Gbps, powered by the latest WiFi 6 technology
Greater network efficiency: Enjoy faster speeds on more devices with less latency via OFDMA and MU-MIMO
Wide-range coverage: Dedicated high-power amplifier and professional antennas with IP67 weather-resistant housing
Omada Mesh technology: Enables wireless connectivity between access points for extended range and flexible deployment
Stay connected with fast roaming: Users can enjoy seamless streaming throughout the entire facility, with their devices simply switching between access points
Centralized cloud management: Integrates with Omada SDN for cloud access and remote management

Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)
Power supply:
802.3at PoE
48 V/0.5 A passive PoE (PoE adapter included)
Power consumption:
EU: 12.5 W (802.3at PoE or passive PoE)
US: 14.7 W (802.3at PoE or passive PoE)
Dimensions (W x D x H) • 280.4×106.5×56.8 mm (without antenna and mounting kit)
Antenna:
2.4 GHz: 2× 4 dBi
5 GHz: 2 × 5 dBi
Weatherproof IP67 housing
Pole/wall mount (kits included)
Wireless standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz, 5 GHz
Signal speed:
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmission power:
CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
Wireless features:
1024-QAM
4× longer OFDM symbol
OFDMA
Multiple SSIDs (up to 16 SSIDs, 8 per band)
Enable/disable wireless radio
Automatic channel assignment
Transmit power control (adjust transmit power in dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless roaming
Band steering
Load balancing
Fair play
Beamforming
Speed limitation
Restart schedule
Wireless schedule
Wireless statistics based on SSID/AP/client
Wireless security:
Intrusion portal authentication
Access control
Wireless MAC address filtering
Wireless isolation between clients
SSID mapping to VLAN
Rogue AP detection
802.1X support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management:
Omada App Yes
Centralized Management • Omada Cloud Controller (supported by EAP610-Outdoor v1.20 and later versions, while EAP610-Outdoor v1.0 does not support)
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud access Yes, through
Omada Cloud Controller (supported by EAP610-Outdoor v1.20 and later, while EAP610-Outdoor v1.0 does not support)
Omada software controller
Email alerts Yes
MAC Access Control Management Yes
SNMP v1, v2c
Local/remote system log recording
SSH
Web management
L3 Management
Multi-site management
VLAN management
Touchless enablement. Requires the use of Omada Cloud Controller (supported by EAP610-Outdoor v1.20 and later, while EAP610-Outdoor v1.0 does not support it).
Certification: CE, FCC, RoHS
Package contents:
EAP610-Outdoor access point
Passive PoE adapter
Power cable
Mounting kits
Waterproof kits
Waterproof antenna
Installation instructions
System requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment:
Operating temperature: -30–70 ℃ (-22–158 ℉)
Storage temperature: -40–70 ℃ (-40–158 ℉)
Operating humidity: 10–90% RH without condensation
Storage humidity: 5–90% RH without condensation
