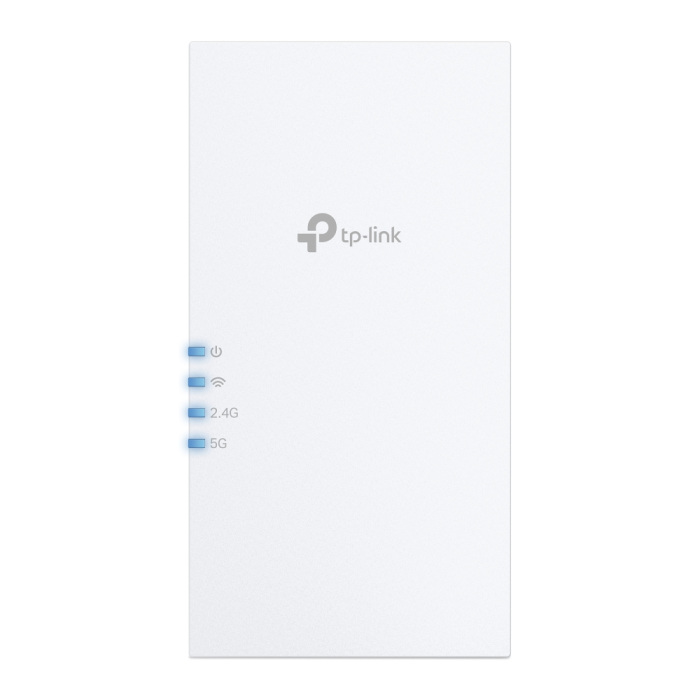

TP-LINK RE220BE Wi-Fi 7 BE3600 Range Extender

The RE220BE is a dual-band Wi-Fi 7 signal extender designed to improve wireless coverage and stability in your home network. It supports 5 GHz and 2.4 GHz frequency bands, enabling speeds of up to 2882 Mbps on 5 GHz and up to 688 Mbps on 2.4 GHz. Thanks to advanced technologies such as Multi-Link Operation, 160 MHz channels, 4K-QAM, and Multi-RUs, it ensures more efficient data transfer and less latency during high network traffic.
The device operates in two modes, as a network signal extender or as an access point, allowing for flexible placement according to user needs. Two external antennas provide better reception and wider coverage, while WPA/WPA2-PSK and WPA2/WPA3 security support ensures secure operation in modern networks. Compatibility with EasyMesh makes it easy to expand existing mesh systems.
The RE220BE includes features such as LED indicator management, access control, consumption scheduling, and coverage area settings. The integrated web server and app management support make configuration easy. Its compact design, 1 Gbps Ethernet port, and simple WPS connection make it suitable for quick upgrades to your home Wi-Fi network.

HARDWARE FEATURES
Interface: 1 Gbps Ethernet port
Buttons:
• WPS button
• Reset button
Input voltage: 100–240 V ~ 50/60 Hz, 0.3 A
Maximum power consumption: 15 W
Dimensions (W × D × H): 97 × 46 × 158 mm
Antennas: 2 external antennas

WIRELESS FEATURES
Wireless standards:
• Wi-Fi 7
• IEEE 802.11be/ax/ac/n/a (5 GHz)
• IEEE 802.11be/ax/n/b/g (2.4 GHz)
Frequency bands:
• 5 GHz
• 2.4 GHz
Signal speed:
• 5 GHz: 2882 Mbps
• 2.4 GHz: 688 Mbps
Operating modes: Range Extender / Access Point
Reception sensitivity:
5 GHz:
• 11be EHT20 MCS0: –96 dBm
• 11be EHT40 MCS0: –94 dBm
• 11be EHT80 MCS0: –91 dBm
• 11be EHT160 MCS0: –88 dBm
• 11be EHT20 MCS13: –59 dBm
• 11be EHT40 MCS13: –57 dBm
• 11be EHT80 MCS13: –54 dBm
• 11be EHT160 MCS13: –51 dBm
2.4 GHz:
• 11be EHT20 MCS0: –95 dBm
• 11be EHT40 MCS0: –93 dBm
• 11be EHT20 MCS13: –58 dBm
• 11be EHT40 MCS13: –56 dBm
Wireless security:
• WPA/WPA2-PSK
• WPA2/WPA3
Advanced features:
• Multi-Link Operation (MLO)
• 160 MHz channel
• 4K-QAM
• Multi-RUs
Transmit power (FCC):
• 2.4 GHz: < 30 dBm
• 5 GHz: < 30 dBm
Mesh technology: EasyMesh compatible
Wireless features:
• LED light control
• Access Control
• Power Schedule
• Wi-Fi coverage (Coverage Settings)

NETWORK FUNCTIONS
Default enabled services:
• Web server (HTTP/HTTPS) — port 80/443 (TCP)
• DHCP server — port 67 (UDP)
• Management via application — port 20001 (TCP), 20002 (UDP)

OTHER
Certificates: FCC , RoHS
Package contents: Wi-Fi 7 Range Extender RE220BE, quick installation guide
System requirements: browser with JavaScript enabled (Internet Explorer, Firefox, Chrome, Safari, or others)
Environment:
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: –40 °C ~ 70 °C
• Operating humidity: 10% ~ 90% (non-condensing)
• Storage humidity: 5% ~ 90% (non-condensing)
