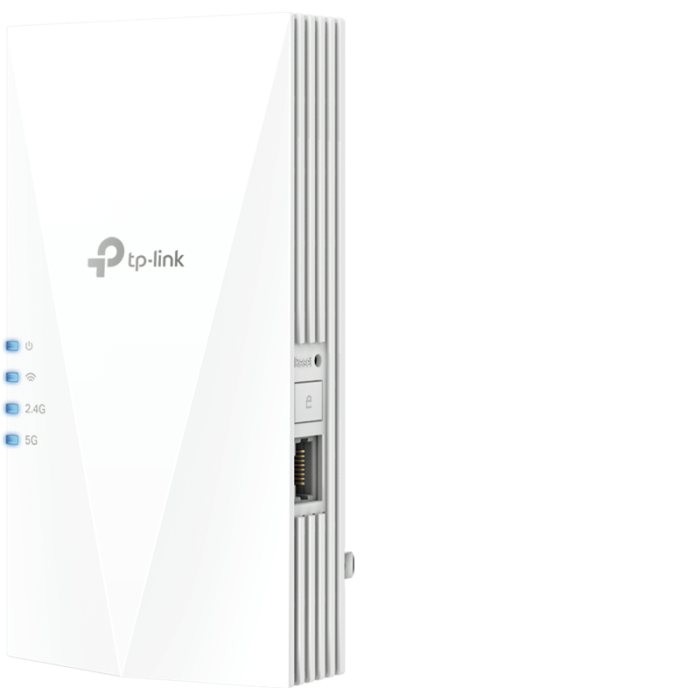

TP-LINK RE500X AX1500 WiFi 6 Range Extender

The RE500X is equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Create a Mesh network by connecting to a TP-Link OneMesh™ router for seamless coverage throughout your home.
Gigabit Ethernet Port – Enables faster wired connections to smart TVs, computers, and game consoles
Smart Signal Light – Helps determine the best location for optimal Wi-Fi coverage by displaying the signal strength at your current location
Access Point Mode – Creates a new Wi-Fi access point to enhance your wired network with Wi-Fi capabilities
TP-LINK Tether app – Easily access and manage your network from any iOS or Android mobile device
Superior compatibility – extends the range of any Wi-Fi router or wireless access point

WIRELESS
Modes of operation Range extender/access point
HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button WPS button, Reset button
Input Power 100-240V~50/60Hz
Power consumption 10W
Dimensions (W x D x H) 3.1×1.4×5.9 in. (78×36×149 mm)
Antenna 2 internal antennas
WIRELESS FEATURES
Wireless standards IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal speed 300 Mbps at 2.4 GHz, 1200 Mbps at 5 GHz
Receive sensitivity 5 GHz:
11a 6 Mbps: -93 dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm

2.4 GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
Wireless features Enable/disable wireless radio
DFS (requires latest firmware and hardware)
Access control
LED control
Power schedule
Wi-Fi coverage
Wireless security 64/128-bit WEP, WPA/WPA-PSK2 encryption
Transmission power CE: 2.4 GHz ≤20dBm, 5GHz ≤30dBm
OTHER
Certification FCC, RoHS
Package contents Wi-Fi Range Extender RE500X
Quick installation guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Operating temperature: 0℃~40℃ (32℉ ~104℉)
Storage temperature: -40℃~70℃ (-40℉ ~158℉)
Operating humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
