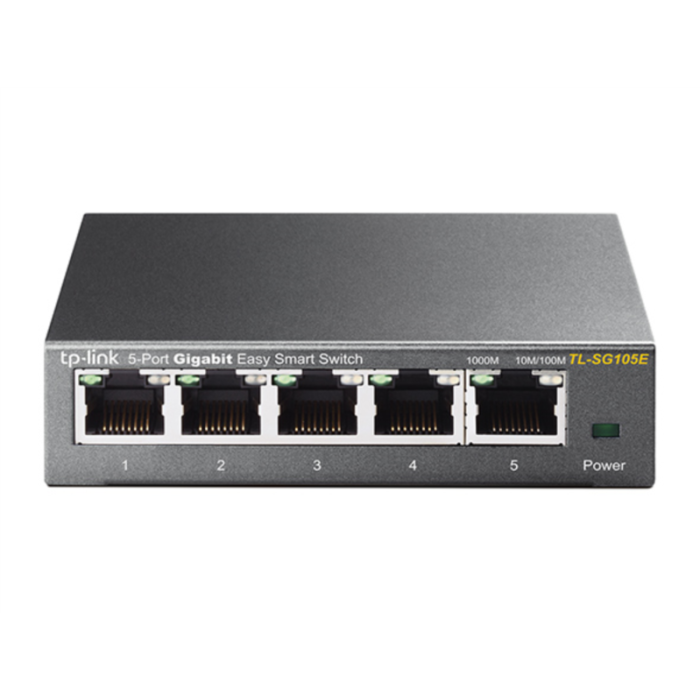

TP-LINK SG105E 5-port Gigabit network switch

TP-LINK TL-SG105E is a high-quality 5-port switch designed for small and medium-sized businesses. It allows for easy traffic monitoring with Port Mirroring, Loop Prevention, and Cable Diagnostics features. QoS technology ensures smooth network traffic, while MTU VLAN provides a secure network.

Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (max. 100 m)
EIA / TIA-568 100Ω STP (max. 100 m)
100BASE-TX: UTP category 5, 5e cable (max. 100 m)
EIA / TIA-568 100Ω STP (max. 100 m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100 m)
EIA / TIA-568 100Ω STP (max. 100 m)
Power supply: external power adapter (output: 9VDC/0.6A)
Power consumption: max. 2.49W (220V / 50Hz)
Dimensions: 100 x 98 x 25 mm
Number of packets per second: 7.4Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1Mb
Jumbo Frame: 15KB
Quality of Service:
Support Port-based/802.1p/DSCP priority,
Supports 4 priority queues
Rate Limit
Storm Control
L2 Features: IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
