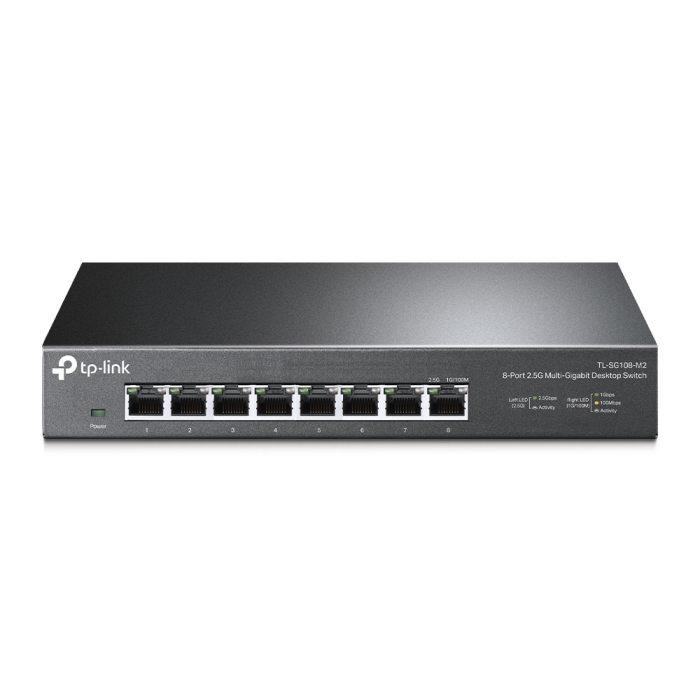

TP-LINK SG108-M2 8-port 2.5G network switch

The TL-SG108-M2 V2 is an 8-port multi-gigabit switch designed for high throughput and reliable network connectivity in home or business environments. Each RJ45 port supports speeds of up to 2.5 Gbps, allowing for optimal utilization of network devices such as access points, workstations, network servers, and gaming systems. A switching capacity of 40 Gbps and a packet forwarding rate of 29.8 Mpps ensure smooth operation even under heavy loads.
The fanless design makes the switch quiet, while the robust metal housing allows for stable use on a desk or in more demanding environments. Advanced features such as 802.3X Flow Control and QoS (802.1p/DSCP) support help stabilize traffic and prioritize important data streams. 12 KB jumbo frames and a 4K MAC table contribute to efficient transmission of larger packets and improved performance.
The switch is easy to install, requiring no configuration, and the included power adapter allows for immediate use. The TL-SG108-M2 V2 is a reliable solution for users who need higher speeds and a stable wired network infrastructure.

HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3bz
Interface: 8 × 100 Mbps / 1 Gbps / 2.5 Gbps ports (Auto-Negotiation, Auto-MDI/MDIX)
Number of fans: fanless
External power supply: external power supply (output: 12 V DC / 1.0 A)
LED indicators: system voltage: 1; Link/Act indicators: 8, one indicator on each RJ-45 port
Dimensions (W × D × H): approx. 226 × 131 × 35 mm
Maximum power consumption: approx. 8.45 W
Maximum heat dissipation: approx. 28.83 BTU/h

PERFORMANCE
Switching capacity: 40 Gbps
Packet forwarding rate: 29.8 Mpps
MAC address table: 4 K
Jumbo Frame: 12 KB

SOFTWARE FEATURES
Advanced features: 802.3X Flow Control; 802.1p / DSCP QoS
Transmission method: Store and Forward

OTHER
Certifications: CE, FCC, RoHS
Package contents: 8-port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2, power adapter, installation guide, rubber feet

Operating environment:
Operating temperature: 0 °C ~ 40 °C
Storage temperature: −40 °C ~ 70 °C
Operating humidity: 10% ~ 90% RH (non-condensing)
Storage humidity: 5% ~ 90% RH (non-condensing)
